User Manual for Elation Professional SIX013 Sixpar 200IP LED Fixture Click to enlarge the picture
Contents of the user manual for the Elation Professional SIX013 Sixpar 200IP LED
- Product category: DJ & Effect Lights Elation Professional
- Brand: Elation Professional
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Elation Professional DJ & Effect Lights
 |
User manual for the Elation Professional SIX013 Sixpar 200IP LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Elation Professional product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Elation Professional user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Elation Professional product will considerably shorten its lifespan!
|

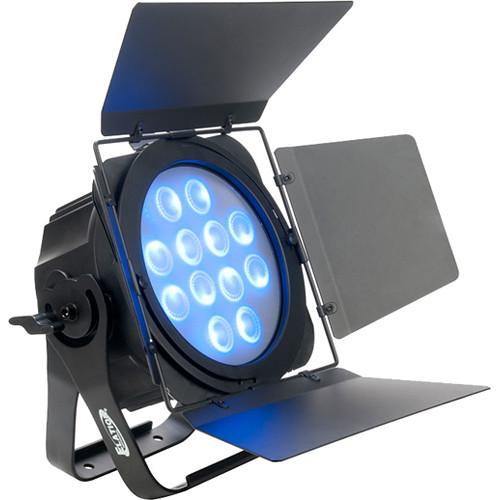

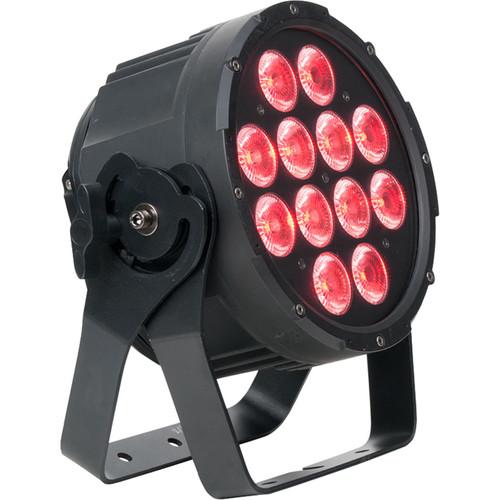

Product description The black Elation Professional SIX013 Sixpar 200IP is an RGBAW+UV light fixture for outdoor use featuring 12 individual 12W six-in-one LEDs. It offers electronic strobe, five variable dimming curve modes, and daisy-chaining capabilities.

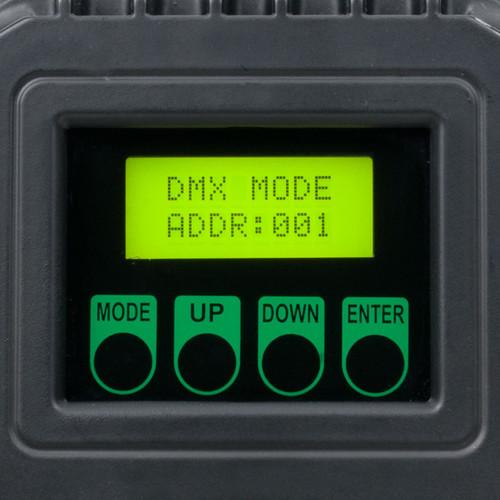

The Sixpar 200IP incorporates a four-button touch-control panel and an LCD menu display. It supports three-pin DMX connectivity (via the included DMX IP adapter cables) and RDM control. Flicker-free operation makes the unit suitable for broadcast TV and film. Four DMX channel modes (6, 7, 8, & 12 channels) enable you to control varying levels of features.
The fixture features an IP power input and an internal auto-switching power supply. It is compatible with 110 - 250 VAC outlets and has a maximum power consumption of 150W. The Sixpar 200IP can be mounted on a floor stand or hung from a rig using the integrated dual yoke bracket (clamps sold separately). - Five variable dimming curve modes
- RDM (Remote Device Management)
- Flicker-free operation for TV and film
- Four-button touch control panel
- Multiple-unit power linking

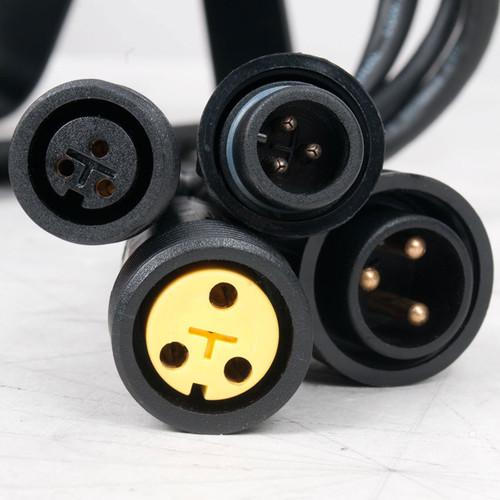

UPC: 837874017250 In the Box Elation Professional SIX013 Sixpar 200IP LED Fixture (12 LEDs, Outdoors, Black) Male Edison to Female IP Power Cable (6.6') Male 3-pin XLR to Female IP DMX Input Cable (3.3') Female 3-pin XLR to Male IP DMX Output Cable (3.3') Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional SIX013 Sixpar 200IP LED Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElation Professional SIXPAR 200IP Specs | Lamp | 12 x 12 W 6-in-1 LEDs | | Color | RGBAW + UV | | Average Lamp Life | 100,000 h | | Beam Angle | 15° | | Field Angle | 25° | | Wavelength | UV: 395 nm | | Photometric Data | 930 lux (86 fc) @ 16.5' (5 m) 15° full-on | | DMX Connectors | 1 x IP, DMX in
1 x IP, DMX out | | DMX Channels | 6, 7, 8, 12-channel modes | | Effects | Electronic strobe
Color and chase macros
Electronic dimming, 0% to 100%
Five variable dimming curve modes | | IP Rating | IP 65 | | Power Connection Type | 1 x IP, power in
1 x IP, power out | | Enclosure Material | Rugged die-cast aluminum | | Rigging | Integrated dual yoke / floor stand | | Working Position | Any (360°) | | Operating Temperature | 5 to 113°F (-15 to 45°C) | | Power Linking | Up to 8 fixtures @ 110 VAC
Up to 18 fixtures @ 240 VAC | | Power Supply | 110 - 250 VAC, 50 / 60 Hz | | Power Consumption | 150 W | | Approvals | CE
cETLus | | Dimensions | 12.3 x 6.2 x 11.8" (313 x 157 x 300 mm) | | Weight | 12.6 lb (5.7 kg) | | | | Package Weight | 18.75 lb | | Box Dimensions (LxWxH) | 14.1 x 13.2 x 8.5" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 30 owners. Add your rating and experience with the product.
