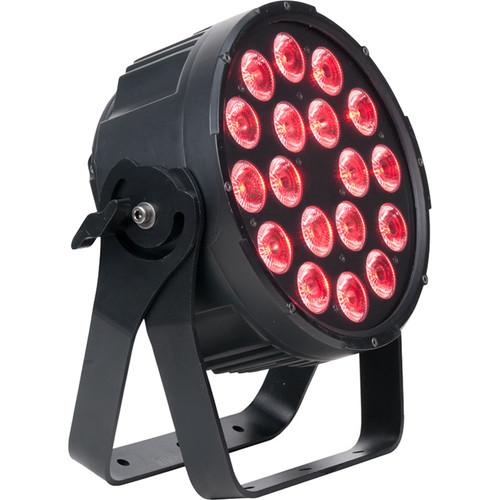

Product description The black Elation Professional SIX062 Sixpar 300 is an RGBAW+UV light fixture for indoor use featuring 18 individual 12W six-in-one LEDs. It offers electronic strobe, five variable dimming curve modes, and daisy-chaining capabilities.

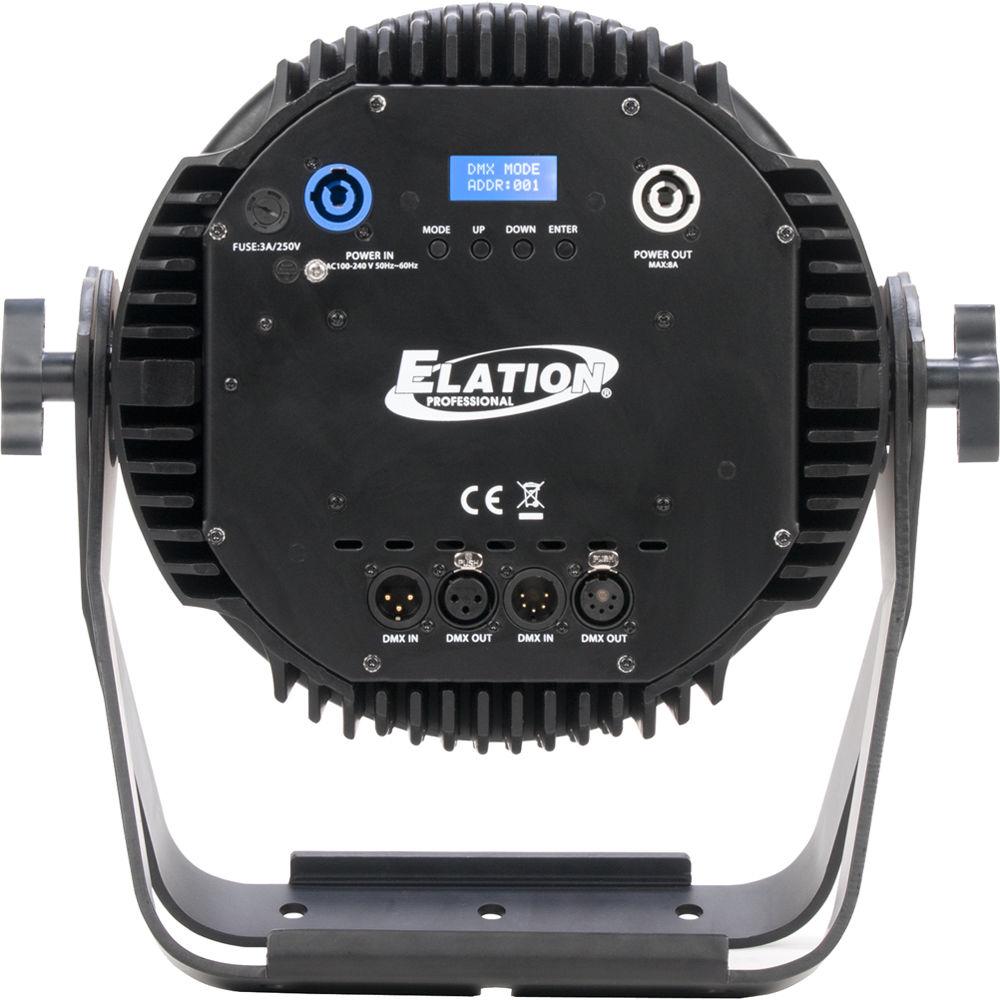

The Sixpar 300 incorporates a four-button touch-control panel and an LCD menu display. It supports three & five-pin DMX connectivity and RDM (Remote Device Management) control. Flicker-free operation makes the unit suitable for broadcast TV and film. Four DMX channel modes (6, 7, 8, & 12 channels) enable you to control varying levels of features.

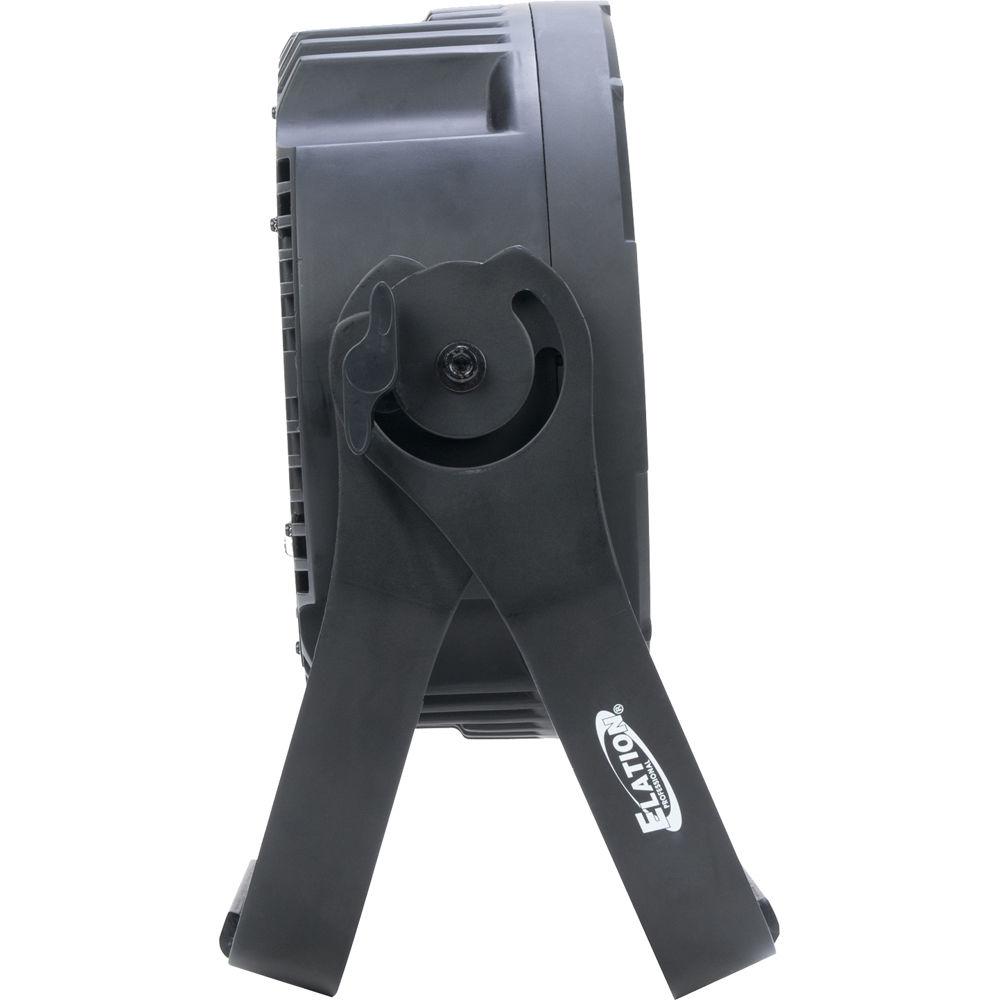

The fixture features a powerCon input and an internal auto-switching power supply. It is compatible with 110 - 250 VAC outlets and has a maximum power consumption of 220W. The Sixpar 300 can be mounted on a floor stand or hung from a rig using the integrated dual yoke bracket (clamps sold separately). - Five variable dimming curve modes
- RDM (Remote Device Management)
- Flicker-free operation for TV and film
- Four-button touch control panel
- Multiple-unit power linking
UPC: 837874018035 In the Box Elation Professional SIX062 Sixpar 300 LED Fixture (18 LEDs, Indoors, Black) powerCON Power Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional SIX062 Sixpar 300 LED Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElation Professional SIXPAR 300 Specs | Lamp | 18 x 12 W 6-in-1 LEDs | | Color | RGBAW + UV | | Average Lamp Life | 100,000 h | | Beam Angle | 15° | | Field Angle | 25° | | Wavelength | UV: 395 nm | | Photometric Data | 1,350 lux (125 fc) @ 16.5' (5 m) 15° full-on | | DMX Connectors | 1 x 3-pin XLR male, DMX in
1 x 3-pin XLR female, DMX out
1 x 5-pin XLR male, DMX in
1 x 5-pin XLR female, DMX out | | DMX Channels | 6, 7, 8, 12-channel modes | | Effects | Electronic strobe
Color and chase macros
Electronic dimming, 0% to 100%
Five variable dimming curve modes | | IP Rating | IP 20 | | Power Connection Type | 1 x powerCON, power in
1 x powerCON, power out | | Enclosure Material | Rugged die-cast aluminum | | Rigging | Integrated dual yoke / floor stand | | Working Position | Any (360°) | | Operating Temperature | 5 to 113°F (-15 to 45°C) | | Power Linking | Up to 5 fixtures @ 110 VAC
Up to 10 fixtures @ 240 VAC | | Power Supply | 110 - 250 VAC, 50 / 60 Hz | | Power Consumption | 220 W | | Approvals | CE
cETLus | | Dimensions | 14.4 x 4.9 x 14.4" (365 x 125 x 365 mm) | | Weight | 18 lb (8.1 kg) | | | | Package Weight | 22.1 lb | | Box Dimensions (LxWxH) | 17.0 x 16.25 x 9.25" |
