Product description - Elation Professional - SixBar Series (SIXBAR 500 & SIXBAR 1000)

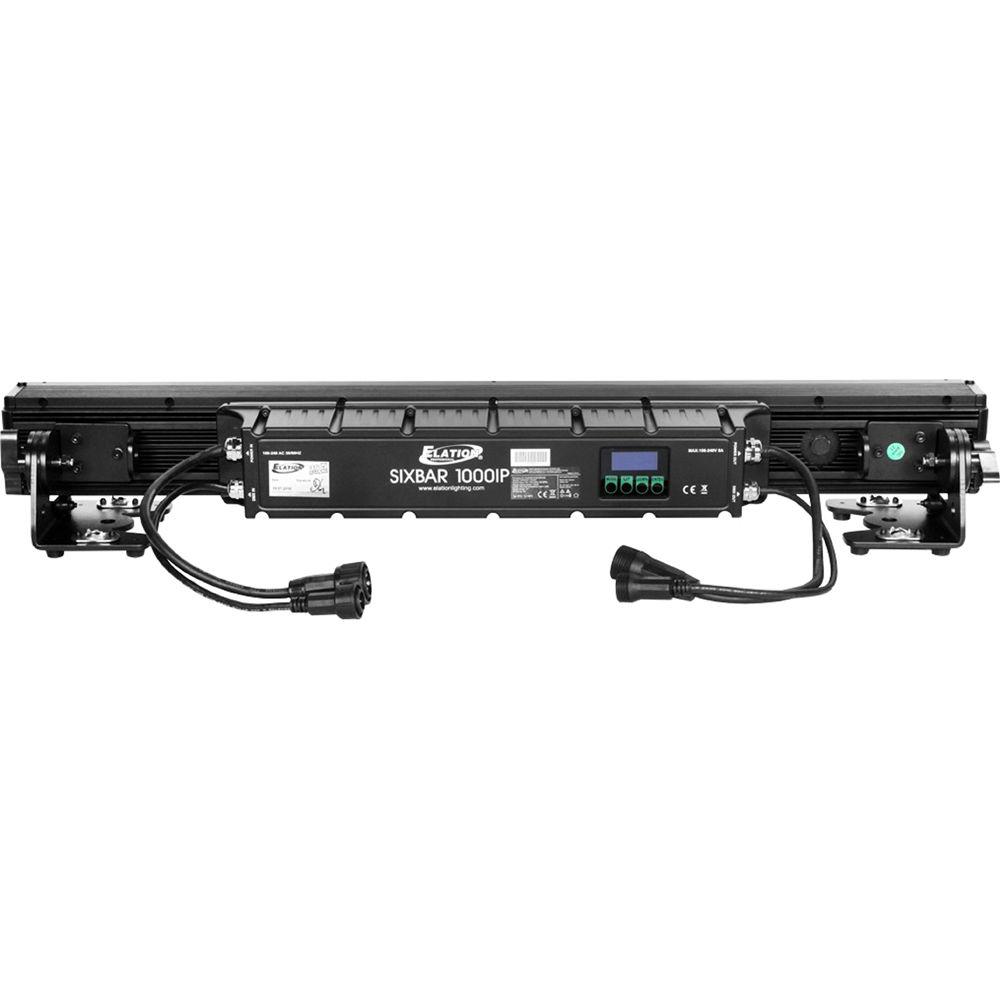

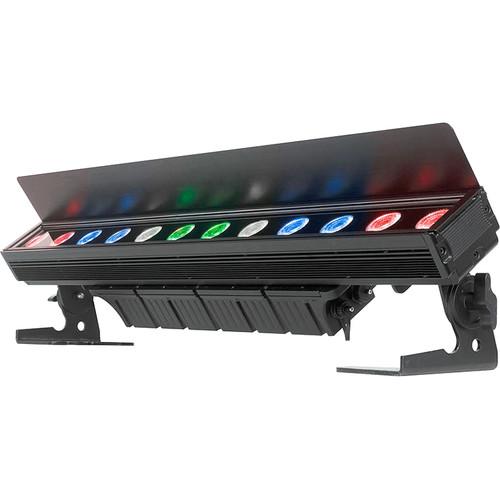

The SIXBAR 1000 IP from Elation Professional features twelve 12W 6-in-1 RGBAW+UV LEDs in an IP65-rated enclosure. With a 30° beam angle, individual control of each LED, variable dimming curve modes, strobe and chase effects, and a UV wavelength of 395nm, this batten fixture provides versatile design options for both indoor and outdoor use. Supported protocols include DMX, Art-Net, Kling-Net and RDM (remote device management) with IP-rated 5-pin XLR and powerCON TRUE1 connections. It features an LCD menu display with 4-button control panel, integrated dual rigging brackets, multiple unit power linking, rugged die-cast aluminum exterior, and flicker-free operation for TV & film. The internal universal auto-switching power supply draws a maximum power of 145W. A power cable, glare shield, and two lens filters are included. -
- 12x 12W 6-in-1 RGBAW+UV LEDs
- 25° beam angle

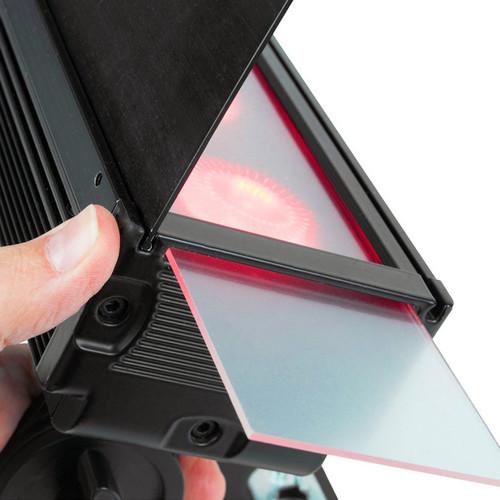

- Two lens filters included
- UV wavelength 395nm
- Art-Net and Kling-Net protocol support
- RDM (Remote Device Management)
- Individual control of each LED
- Variable dimming curves
- Strobe and zone chase effects

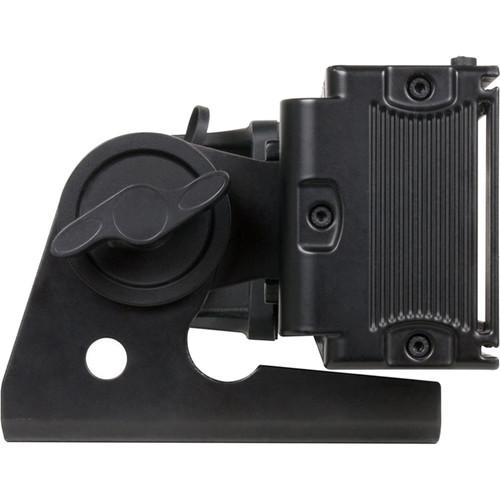

- Integrated dual rigging brackets
- Multiple unit power linking
- Rugged die-cast aluminum exterior
- Flicker-free operation for TV and film
- Set strobe and color manually from menu
UPC: 837874019643 In the Box Elation Professional SIXBAR 1000 IP - RGBAW+UV LED Batten Fixture powerCON TRUE1 Cable 2 x Lens Filters Glare Shield Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional SIXBAR 1000 IP - RGBAW UV LED Batten Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElation Professional SIXBAR 1000 IP Specs | Light Source | 12 x RGBAW+UV LEDs, 12 W | | Life Expectancy | 100,000 hours | | Wavelength | 395 nm | | Illuminance | 25°, No Filter (Full On): 7149 lux / 664 fc @ 3.3' / 1 m
25°, No Filter (Full On): 1481 lux / 138 fc @ 9.9' / 3 m
35°, Diffusion Filter (Full On): 6413 lux / 596 fc @ 3.3' / 1 m
35°, Diffusion Filter (Full On): 1287 lux / 120 fc @ 9.9' / 3 m
45°, Frost Filter (Full On): 4377 lux / 407 fc @ 3.3' / 1 m
45°, Frost Filter (Full On): 760 lux / 71 fc @ 3.3' / 1 m | | Beam Angle | 25° | | Color Mixing | RGBAW+UV, standalone | | Color Effects | 63 x color macros | | Dimmer | Electronic | | Dimmer Curves | 5 | | Zone Control | 1, 6, or 12 zones | | Flicker Free Operation | Yes | | Built-In Programs | Yes | | Protocols | DMX, RDM, Art-Net, Kling-Net | | DMX Connectors | Input: XLR 5-pin IP
Output: XLR 5-pin IP | | DMX Channel Modes | 6, 7, 11, 13, 36, 72, 75, 79 channels | | Input Voltage | 110 to 240 VAC, 50/60 Hz (auto-ranging) | | Power Connection Type | Input: powerCON TRUE1
Output: powerCON TRUE1 | | Power Linking | 110 V: 6 x units
240 V: 15 x units | | Power Consumption | 145 W maximum | | IP Rating | IP65 | | Display/Controls | LCD display with 4-button control interface | | Ambient Temperature | 5 to 113°F (-15 to 45°C) | | Approvals and Certifications | CE, cETLus | | Dimensions (L x W x H) | 33.6 x 5.6 x 4.7" (853 x 141.4 x 120.5 mm) | | Weight | 19.0 lb (8.6 kg) |
