Product description - Elation Professional - SixBar Series (SIXBAR 500 & SIXBAR 1000)

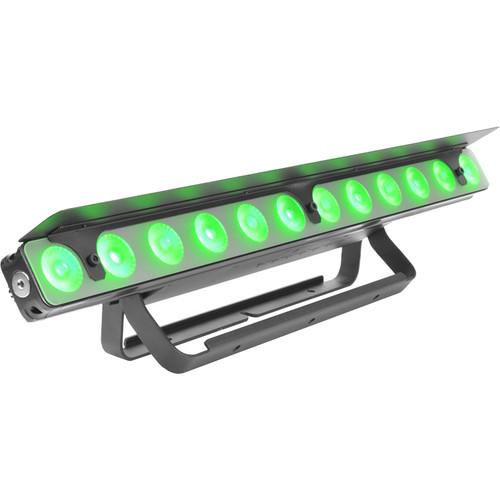

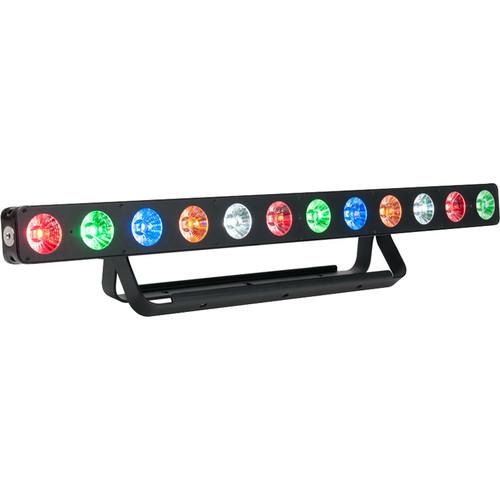

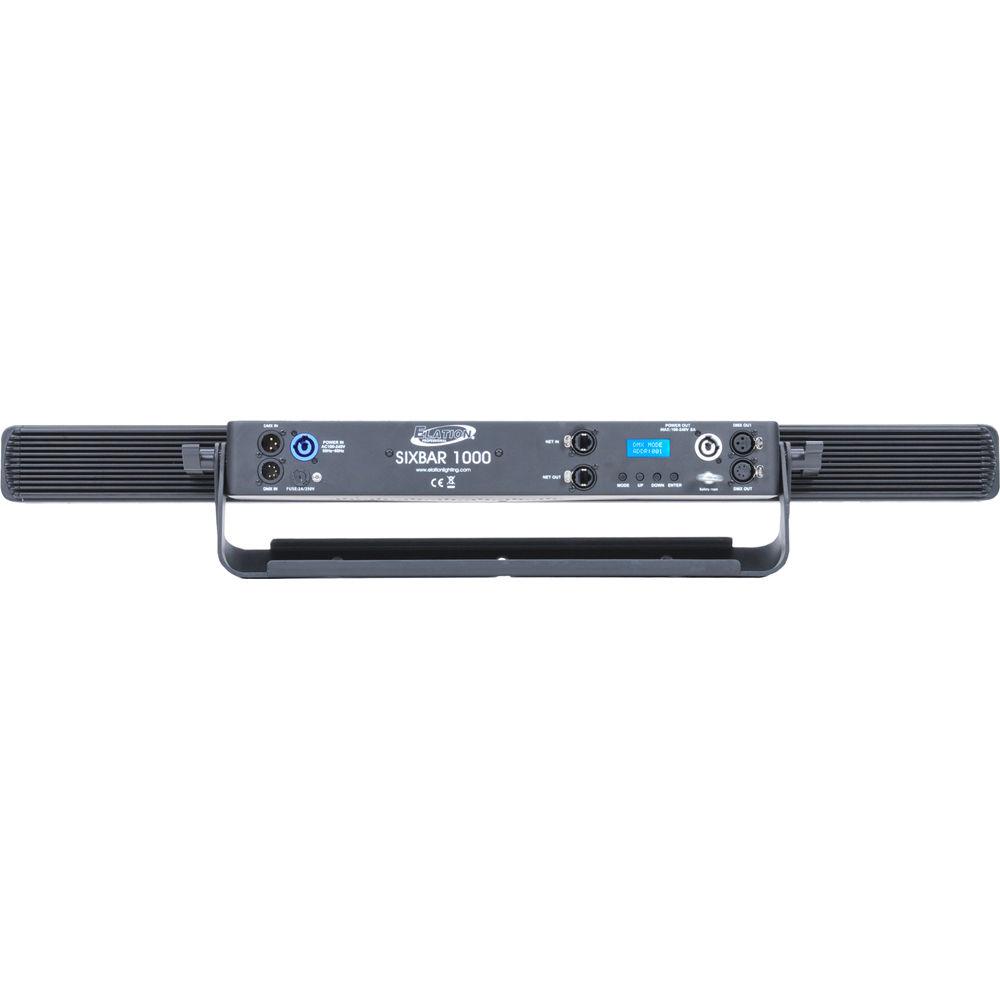

The Elation Professional SIXBAR 1000 is a high-powered RGBAW+UV (red, green, blue, amber, white + ultraviolet) LED linear fixture designed to produce a broad spectrum of UV-infused color washes with natural-looking color temperatures. Featuring twelve, 12W (6-in-1) LEDs that have a beam angle of 30°, it provides wide washes for venue uplighting and heat-free illumination to performers on stage. The SIXBAR 1000 offers both standalone and DMX operation. It comes with built-in automated programs, strobe and chase effects, variable dimming curves, and static colors, all accessible via the LED menu display with a four-button control panel. Eight DMX channel modes (6, 7, 11, 13, 36, 72, 75, or 79 channels) allow for in-depth control of the unit. Additionally, the fixture supports RDM (Remote Device Management), Art-Net, and Kling-Net protocols. The Master/Slave option lets you coordinate multiple fixtures without the need for a controller. Other features include individual LED control, flicker-free operation (for video applications), and a universal auto-sensing power supply. You can also daisy-chain power for up to 6 units at 110V or 15 units at 240V. The SIXBAR 1000 comes equipped with a rugged, die-cast aluminum exterior and integrated dual floor stand/rigging yokes that can be used for conventional mounting to a truss or lighting stand, or to create a variable-angle floor stand. The fixture ships with a frost filter and a glare shield. - Key Features
-
- 12 x 12W (6-in-1) RGBAW+UV (red, green, blue, amber, white + ultraviolet) LEDs for high-power color washes
- 30° beam angle
- Individual LED control
- Built-in automated programs
- Variable dimming curve modes
- Color macros
- LED strobe and chase effects
- 8 x DMX channel modes: 6, 7, 11, 13, 36, 72, 75, and 79
- Standalone, Master/Slave operation
- Art-Net, Kling-Net, and RDM (Remote Device Management) protocol support
- LED menu display with 4-button control panel
- Flicker-free operation for TV and film applications
- Daisy-chain power for up to 6 units at 110V, or 15 units at 240V
- Multi-voltage operation: 100-240 VAC, auto-ranging
- Rugged die-cast aluminum exterior

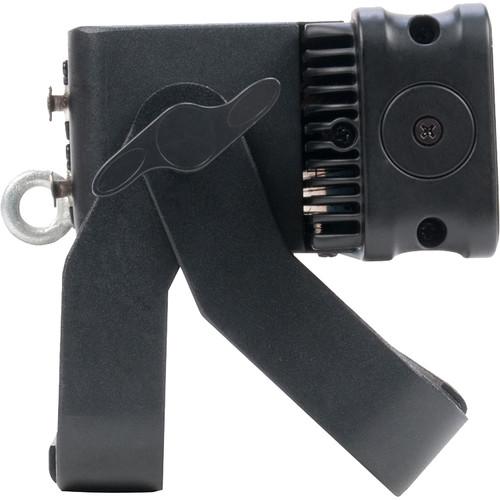

- Integrated dual floor stand/rigging yokes for conventional mounting or as a variable-angle floor stand
- Includes a frost filter and a glare shield
UPC: 837874018332 In the Box Elation Professional SIXBAR 1000 RGBAW+UV LED Linear Fixture (35.4") powerCON Cable Frost Filter Glare Shield Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional SIXBAR 1000 RGBAW UV LED Linear Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElation Professional SIXBAR 1000 Specs | LED Source | 12 x 12 W 6-in-1 RGBAW+UV (red, green, blue, amber, white + ultraviolet) LEDs | | LED Life Expectancy | 100,000 hours | | Beam Angle | 30° | | Photometric Data | 8500 lux (790 fc) at 3.3' / 1 m, 30° full-on
3660 lux (340 fc) at 6.6' / 2 m, 30° full-on
2040 lux (190 fc) at 9.8' / 3 m, 30° full-on
1290 lux (120 fc) at 13.1' / 4 m, 30° full-on
878 lux (82 fc) at 16.4' / 5, 30° full-on | | UV Wavelength | UV: 395 nm | | DMX Connectors | 3-pin XLR I/O
5-pin XLR I/O
EtherCON RJ45 port I/O | | Control | DMX Channel Modes: 6, 7, 11, 13, 36, 72, 75, and 79
Master/Slave mode
Four-button control panel and LCD menu display, standalone mode
RJ45 to DMX Art-Net and Kling-Net protocol support
RDM (Remote Device Management) | | Effects | Strobe and chase effects
Individual LED control
Variable and selectable dimming curves (0-100% electronic dimming) | | Input Voltage | 110-240 VAC, 50/60 Hz, auto-switching | | Power Connectors | 1 x powerCON, in
1 x powerCON, out | | Power Linking | 6 units at 110 V
15 units at 240 V | | Power Consumption | 145 W, maximum | | Operating Temperature | 5 to 113°F / -15 to 45°C | | Enclosure Material | Die-cast aluminum | | Rigging | Integrated dual-rigging brackets | | Approvals and Ratings | CE, cETLus, IP20 | | Dimensions (L x W x H) | 35.4 x 8.1 x 6.1" / 900.0 x 206.4 x 155.0 mm (with included glare shield) | | Weight | 16.0 lb / 7.3 kg | | | | Package Weight | 18.5 lb | | Box Dimensions (LxWxH) | 37.5 x 9.0 x 8.5" |
