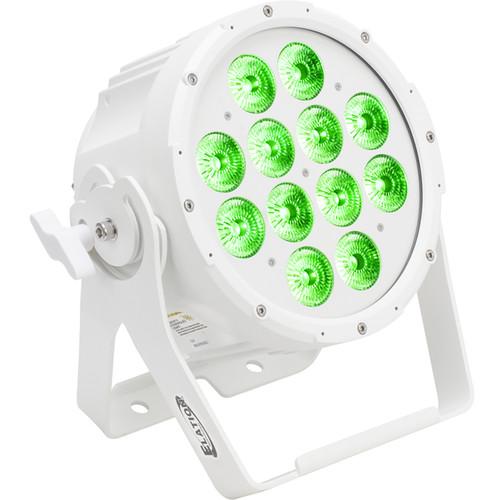

Product description The white Elation Professional SIXPAR 200WMG HW is a versatile IP65-rated outdoor PAR luminaire. The fixture utilizes a specially added white, marine-grade exterior coating and hardwired (bare wire) IP-rated power/data combo in/out cables attached, making it well suited for permanent marine/coastal environment installations.
The fixture utilizes twelve individual 12W six-in-one RGBAW+UV LEDs and has a 23° beam angle. Additional features include internal color and color chase macros, electronic strobe and variable dimming curve modes, manual and DMX512 control, RDM (remote device management) support, and a dual yoke / floor stand. -
- IP65 outdoor-rated PAR luminaire
- Special white marine-grade exterior coating

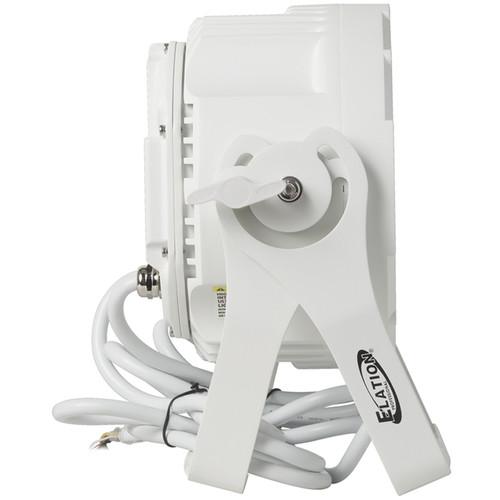

- Rugged die-cast aluminum exterior with dual yoke / floor stand
- Twelve 12W 6-in-1 RGBAW+UV LEDs
- 23° beam angle
- 395nm UV wavelength
- Electronic strobe and variable dimming curve modes
- Manual and DMX512 control
- RDM (Remote Device Management) support

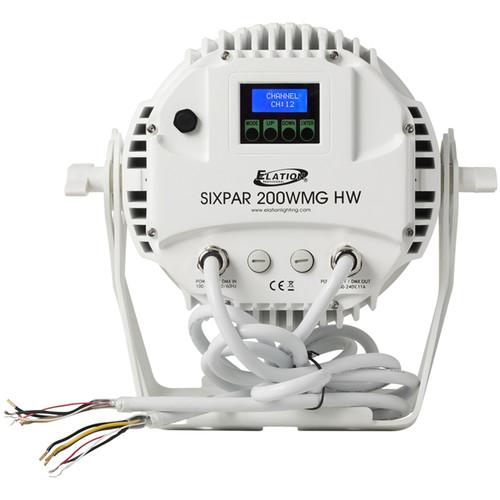

- Hardwired (bare wire) IP-rated power/data combo in/out cables attached
UPC: 837874005486 In the Box Elation Professional SIXPAR 200WMG HW - IP65 LED PAR (RGBAW+UV, White Marine Grade) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional SIXPAR 200WMG HW - IP65 LED PAR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElation Professional SIXPAR 200IP Specs | Lamp | 12 x 12 W 6-in-1 LEDs | | Color | RGBAW + UV | | Average Lamp Life | 100,000 Hours | | Beam Angle | 23° | | Field Angle | 25° | | Wavelength | UV: 395 nm | | Effects | Electronic Strobe
Variable Dimming Curves Modes
Internal Color and Color Chase Macros | | Control and Connectors | Manual and DMX512 Control
4 DMX Channel Modes: 6/7/8/12
4 Button Touch LCD Menu Display
Hardwired (Bare Wire) IP Rated Power/Data Combo In/Out Cables Attached
With Wired Digital Communication Network | | Power | Power Supply: 110 to 250 VAC, 50/60 Hz
150 W Max Power Consumption | | Rigging | Integrated Dual Yoke / Floor Stand | | Approvals | CE
cETLus | | IP Rating | IP65 | | Dimensions | 12.3 x 6.2 x 11.8" / 31.3 x 15.7 x 30.0 cm | | Weight | 12.6 lb / 5.7 kg |
