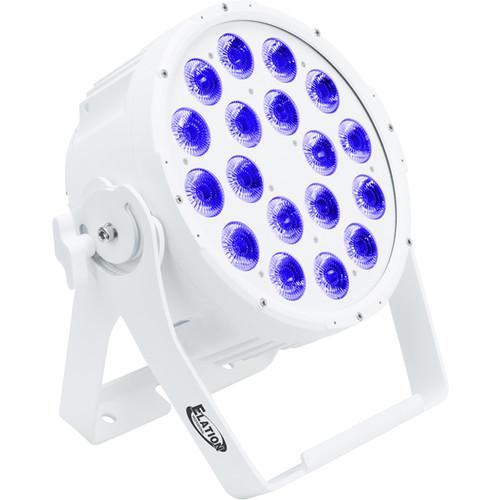

User Manual for Elation Professional SIXPAR 300WMG HW - IP65 LED PAR Click to enlarge the picture
Contents of the user manual for the Elation Professional SIXPAR 300WMG HW -
- Product category: DJ & Effect Lights Elation Professional
- Brand: Elation Professional
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Elation Professional DJ & Effect Lights
 |
User manual for the Elation Professional SIXPAR 300WMG HW - contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Elation Professional product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Elation Professional user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Elation Professional product will considerably shorten its lifespan!
|
Product description The white Elation Professional SIXPAR 300WMG HW is a versatile IP65-rated outdoor PAR luminaire. The fixture utilizes a specially added white, marine-grade exterior coating and hardwired (bare wire) IP-rated power/data combo with in/out cables attached, making it well suited for permanent marine/coastal environment installations.
The fixture utilizes 18 individual 12W six-in-one RGBAW+UV LEDs, which produce a 23° beam angle. Additional features include internal color and color chase macros, electronic strobe and variable dimming curve modes, manual and DMX512 control, RDM (remote device management) support, and a dual yoke / floor stand. -
- IP65 outdoor-rated par luminaire
- Special white marine-grade exterior coating

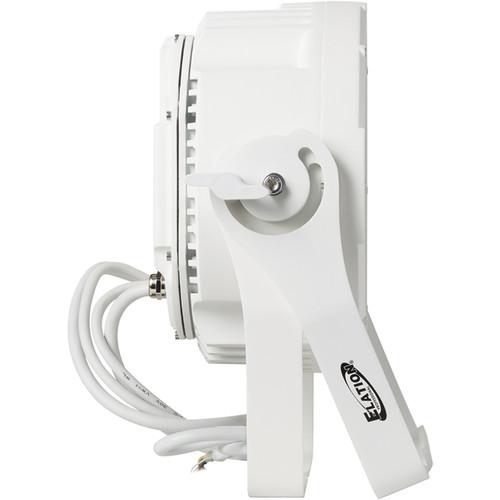

- Rugged die-cast aluminum exterior with dual yoke / floor stand
- 18 x 12W 6-in-1 RGBAW+UV LEDs
- 23° beam angle
- 395nm UV wavelength
- Electronic strobe and variable dimming curve modes
- Manual and DMX512 control
- RDM (Remote Device Management) support

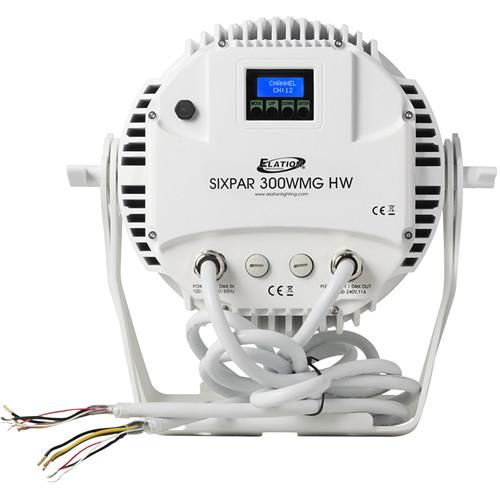

- Hardwired (bare wire) IP-rated power/data combo; in/out cables attached
UPC: 837874005479 In the Box Elation Professional SIXPAR 300WMG HW - IP65 LED PAR (RGBAW+UV, White Marine Grade) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional SIXPAR 300WMG HW - IP65 LED PAR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElation Professional SIXPAR 300IP Specs | Lamp | 18 x 12 W 6-in-1 LEDs | | Color | RGBAW + UV | | Average Lamp Life | 100,000 Hours | | Beam Angle | 23° | | Wavelength | UV: 395 nm | | Effects | Electronic Strobe
Variable Dimming Curves Modes
Internal Color and Color Chase Macros | | Control and Connectors | Manual and DMX512 Control
4 DMX Channel Modes: 6/7/8/12
4 Button Touch LCD Menu Display
Hardwired (Bare Wire) IP-Rated Power/Data Combo In/Out Cables Attached
With Wired Digital Communication Network | | Power | Power Supply: 110 to 250 VAC, 50/60 Hz
220 W Max Power Consumption | | Rigging | Integrated dual yoke / floor stand | | Approvals | CE
cETLus | | IP Rating | IP65 | | Dimensions | 14.4 x 6.2 x 14.4" / 365.8 x 157.5 x 365.8 mm | | Weight | 19.2 lb / 8.7 kg |
