User Manual for Elation Professional Stage Setter-24 Dimming Console Click to enlarge the picture
Contents of the user manual for the Elation Professional Stage Setter-24 Dimming Console
- Product category: Lighting Consoles & Controllers Elation Professional
- Brand: Elation Professional
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Elation Professional Lighting Consoles & Controllers
 |
User manual for the Elation Professional Stage Setter-24 Dimming Console contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Elation Professional product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Elation Professional user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Elation Professional product will considerably shorten its lifespan!
|

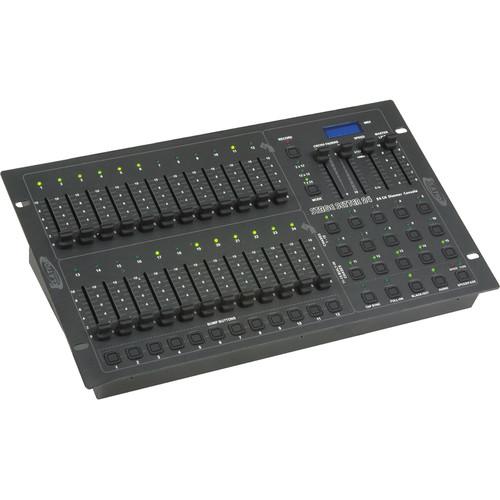

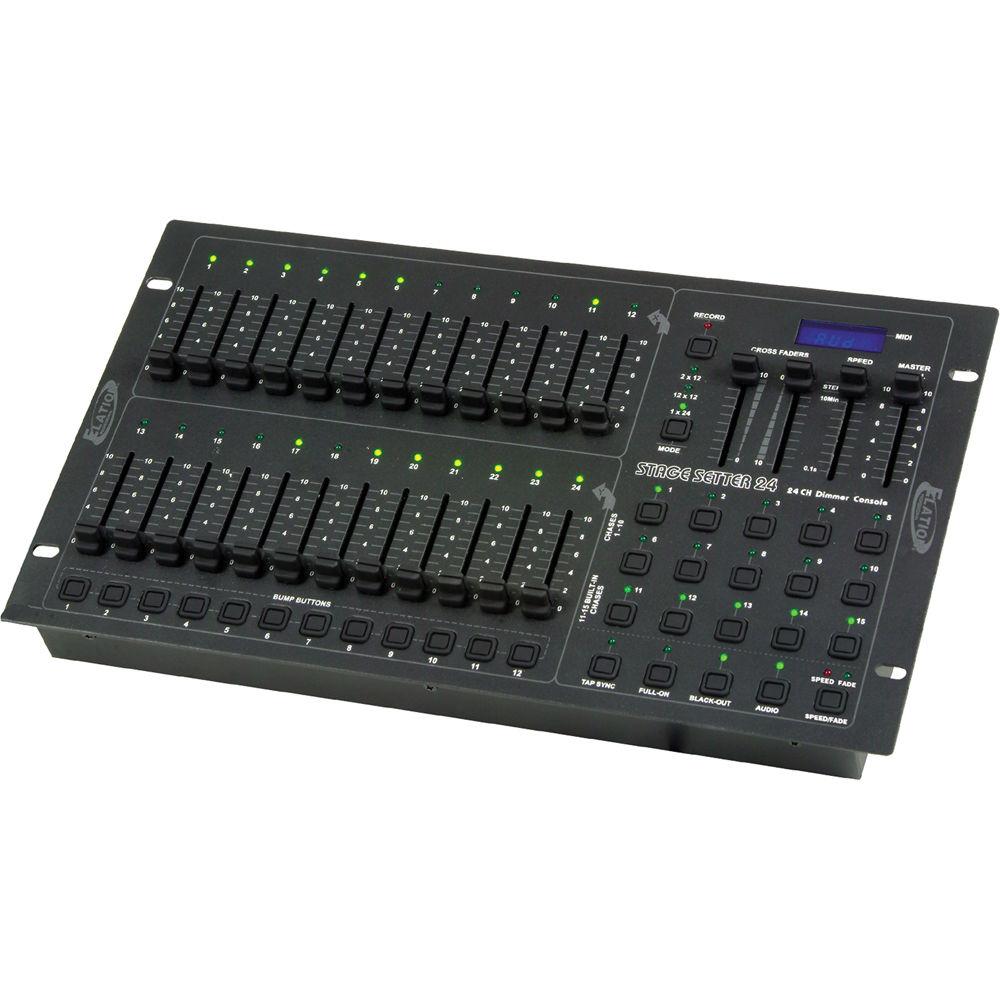

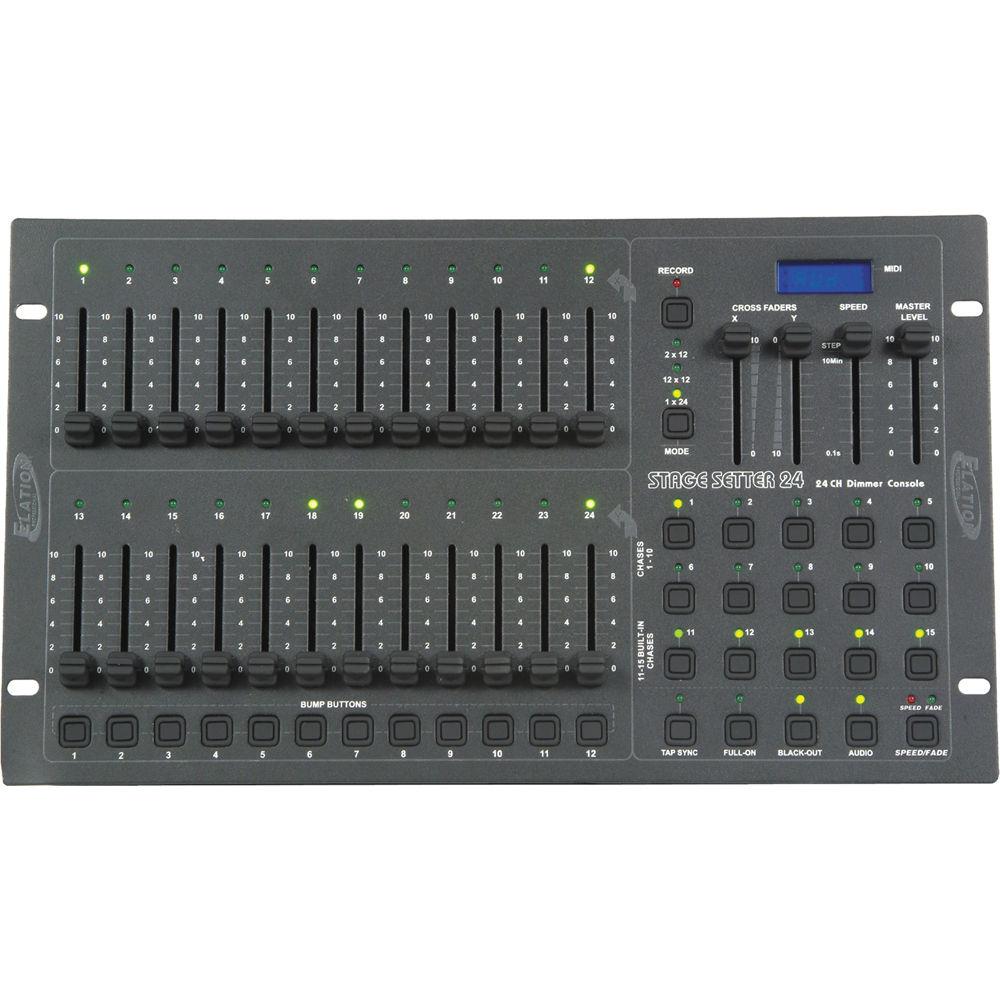

Product description What You Need to Know When Working with DMX Read More The Stage Setter-24 Dimming Console by Elation Professional is a 24-channel dimming console and stage lighting controller. The Stage Setter-24 can be set to operate in one of three different modes: 2x12, 12x12, and 1x24. In 2x12 mode, also known as 2-scene operation mode, crossfader X controls channels 1-12 and crossfader Y controls channels 13-24. In 12x12 mode scene Y faders (13-24) function as scene master playbacks; scenes can be set with faders 1-12 and stored to faders 13-24 for playback. In 1x24 mode, the controller functions as a straight 24-channel dimming console; crossfader X and the master level fader control the intensities of channels 1-24, whereas bump buttons 1-12 function as bump scene masters. Scenes can be recorded and stored for momentary playback to the bump buttons.
Up to 10 chases, consisting of 64 steps each, can be stored to chase buttons 1-10. When in 2x12 and 12x12 modes, the console functions as a 12-channel board, in which case up to 12 channel chases can be created and stored to memory. When in 1x24 mode, the console functions as a 24-channel board and up to 24 channels can be created and stored to memory. The memory dump function allows you to reset the unit's factory default settings at any time. Standard MIDI and DMX ports enable you to connect the Stage Setter-24 to your DMX dimmer pack or other compatible devices. The unit draws its power from the included 12-20 VDC power supply. - 24-channel dimmer console
- Three operating modes: 2x12, 12x12, and 1x24
- 15 chases: 5 built-in and 10 user programmable
- Two scene crossfade operation
- 12 scene master playbacks
- Back up memory protection
- Password protected record access
UPC: 640282051378 In the Box Elation Professional Stage Setter-24 Dimming Console Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional Stage Setter-24 Dimming Console in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElation Professional STAGE SETTER-24 Specs | Type | 24 channel dimmer console | | Channels | 24 x DMX | | Operating Modes | 2x12, 12x12, 1x24 | | Chases | 10 user programmable
5 built-in | | Steps | 69 per pattern | | Master Playbacks | 12 x scene
12 x bump | | Connectors | Rear Panel:
1 x VDC power input
2 x 3-pin XLR female, DMX output to DMX pack or compatible device
1 x 5-pin multiple socket, MIDI thru to another MIDI device
1 x 5-pin multiple socket, MIDI input from external MIDI controller or keyboard
1 x audio jack, to line level input of a mixing console | | Controls | Front Panel:
12 x scene X channel fader (channels 1-12)
12 x scene Y channel fader (channels 13-24)
1 x mode button, 2x12/12x12/1x24
1 x record button
1 x X crossfader (controls overall intensity of scene X channels)
1 x Y crossfader (controls overall intensity of scene Y channels)
1 x master level fader
12 x multi-function bump buttons
5 x built-in-chase buttons (activate 5 built-in chases)
1 x tap sync button (to create a chase rate)
1 x full on button (brings all channels to full intensity)
1 x blackout button
1 x speed/fade multi-function button
10 x chase buttons (to record and playback programmable chases)
1 x speed/fade fader (adjusts chase speed & fade time)
1 x audio button (activates internal microphone/line level input)
Rear Panel:
1 x power switch, on/off | | Indicators | Front Panel:
24 x channel LED
1 x multi-function digital segment display
1 x LED, record
3 x LED, operating modes
10 x LED, chases 1-10
5 x LED, built-in chases 1-5
1 x LED, tap sync
1 x LED, full on
1 x LED, blackout
1 x LED, audio
1 x LED, speed
1 x LED, fade | | DC Input | 12 - 20 VDC, 500 mA minimum | | Dimensions (W x L x H) | 8.75 x 15.00 x 3.25" (22.22 x 38.10 x 8.26 cm) | | Weight | 8 lb (3.6 kg) | | | | Package Weight | 7.7 lb | | Box Dimensions (LxWxH) | 20.8 x 10.9 x 5.1" |
