User Manual for Elation Professional TVL PANEL DW Soft Light Luminaire Click to enlarge the picture
Contents of the user manual for the Elation Professional TVL PANEL DW Soft
- Product category: LED Lights Elation Professional
- Brand: Elation Professional
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Elation Professional LED Lights
 |
User manual for the Elation Professional TVL PANEL DW Soft contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Elation Professional product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Elation Professional user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Elation Professional product will considerably shorten its lifespan!
|

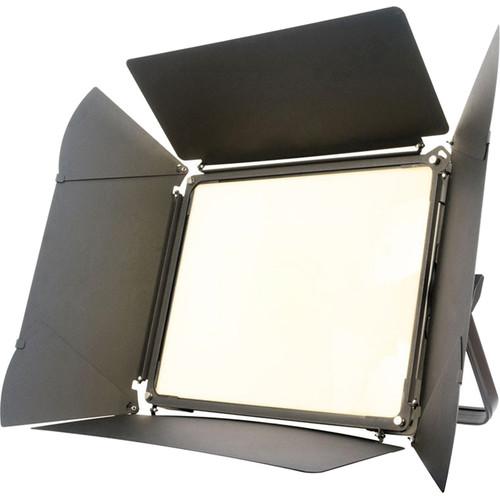

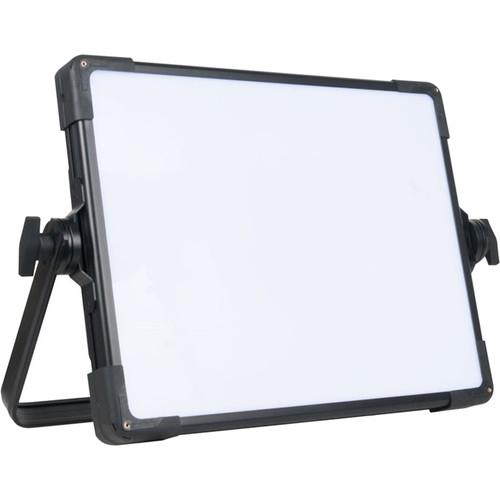

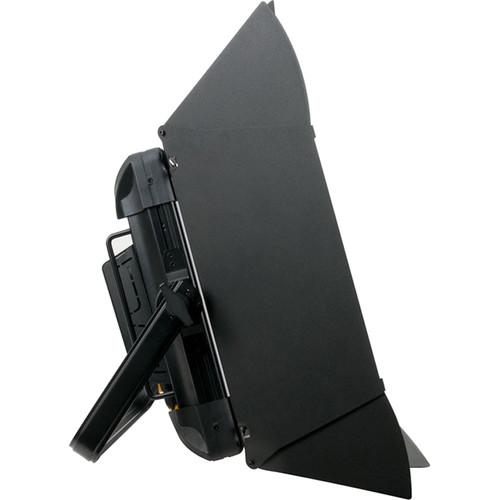

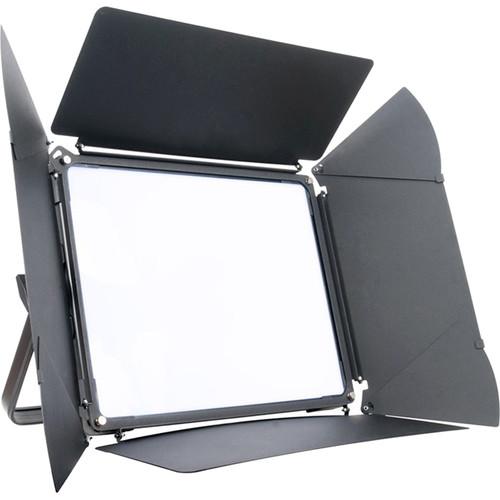

Product description The TVL PANEL DW Soft Light Luminaire from Elation Professional features 480 cool white and warm white LEDs. The light features a CRI of ≥95, 150° beam angle, 8-leaf adjustable and removable barn doors, and linear white color temperature range of 3000 to 5800K. For better lighting, it comes with a smooth 16-bit dimming and dimming curve effects. The luminaire has a 5-pin DMX in/out, a powerCON TRUE1 connection, four-button menu control panel, and also dimmer and color temperature rotary control dials. It features a 180° reversible LCD menu display, multiple unit power linking, and a multi-voltage, universal auto-switching power supply. -
- Dynamic white 150° beam TVL panel soft light
- Linear white color temp range of 3000 to 5800K
- Smooth 16-bit dimming and dimming curve effects
- Dimmer and color temperature rotary control dials
- Flicker-free operation for TV and film
- 8-Leaf adjustable or removable barn doors included
- Multiple DMX channel modes
- 4-Button control panel
- Two rotary control dials (dimmer and color temperature)
- 180° reversible LCD menu display
UPC: 837874019988 In the Box Elation Professional TVL PANEL DW Soft Light Luminaire Removable Barndoors powerCON TRUE1 Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional TVL PANEL DW Soft Light Luminaire in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElation Professional TVL Panel DW Specs | Rating | CE, RoHs, and IP20 | | Source | 480 x Cool white and 480 x warm white LEDs ≥95 CRI | | Color Range | Color Temp Range: 3000 to 5800K | | Operating Voltage | 100 to 240 VAC, 50/60 Hz | | Dimming | 16-bit dimming | | LED Life | 20,000 hours (average) | | Cable | 1 x powerCON TRUE1 Cable | | Connectors | Multiple DMX Channel Modes
1 x 5-pin DMX in/out | | Photometric Data | >95 CRI, 13,000 total lumens
1117 lux 104 FCD at 6.6' (2 m), Full ON 4200K >95 CRI
1105 lux 103 FCD at 6.6' (2 m), CW 5800K >95 CRI
1076 lux 100 FCD at 6.6' (2 m), WW 3200K >97 CRI | | Temperature | 5 to 113°F (-15 to 45°C) | | Dimensions | 27 x 19 x 5.9" (69 x 48 x 15 cm) | | Weight | 28 lb (13 kg) | | | | Box Dimensions (LxWxH) | 27.5 x 26.5 x 13.0" |
