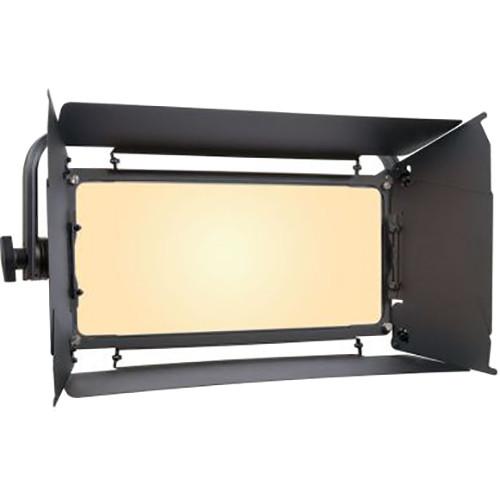

User Manual for Elation Professional TVL Softlight DW Click to enlarge the picture
Contents of the user manual for the Elation Professional TVL Softlight DW
- Product category: LED Lights Elation Professional
- Brand: Elation Professional
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Elation Professional LED Lights
|
User manual for the Elation Professional TVL Softlight DW contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Elation Professional product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Elation Professional user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Elation Professional product will considerably shorten its lifespan!
|
Product description The TVL Softlight DW from Elation Professional is a variable color light fixture that allows you to control color temperature from 3200 to 5600K via a rotary dial on its back panel. Another rotary dial regulates dimming which can also be done with onboard DMX. Besides standard dimming, effects include electronic strobe and variable dimming curve modes. The TVL Softlight DW comes with 8-leaf barndoors to control its 115-degree beam angle and can be used anywhere in the world thanks to its 100-240 VAC power supply. - Photometrics
- 575 lux/53.4 fc @ 6.6'(2.0 m) full on at 4200K
580 lux/53.9 fc @ 6.6'(2.0 m) CW at 5600K
564 lux/52.4 fc @ 6.6'(2.0 m) WW at 3200K UPC: 837874001785 In the Box Elation Professional TVL Softlight DW Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional TVL Softlight DW in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElation Professional TVL Softlight DW Specs | Light Source | 240 Cool white and 240 warm white LEDs | | Lamp Life | 20,000 Hours | | Color Range | 3200 - 5600K | | CRI | ≥95 CRI | | Lumens | 6700 | | Operating Voltage | 100 - 240 VAC, 50/60 Hz | | Dimming | 16-bit Dimming and dimming curve effects | | Connectors and Control | Multiple DMX channel modes
4 Button control panel
2 Rotary control dials (dimmer and color temperature)
5-Pin DMX In/Out
RJ45 etherCON (Art-NET) In
powerCON power In | | Effects | Linear variable white color temp control
Electronic strobe and variable dimming curve codes | | Beam Angle | 115° | | Mount | Yoke | | Operating Temperature | 5 to 113°F (-15 to 45°C) | | Dimensions | 26.5 x 12.4 x 16.7" (67.3 x 31.5 x 42.5 cm) | | Weight | 18 lb (8.2 kg) Including barndoors | | Approvals and Ratings | CE / RoHs / IP20 | | | | Package Weight | 23.6 lb | | Box Dimensions (LxWxH) | 21.0 x 13.0 x 10.0" |
