User Manual for Elation Professional TVL3000 II WW LED Light Click to enlarge the picture
Contents of the user manual for the Elation Professional TVL3000 II WW LED
- Product category: LED Lights Elation Professional
- Brand: Elation Professional
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Elation Professional LED Lights
 |
User manual for the Elation Professional TVL3000 II WW LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Elation Professional product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Elation Professional user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Elation Professional product will considerably shorten its lifespan!
|

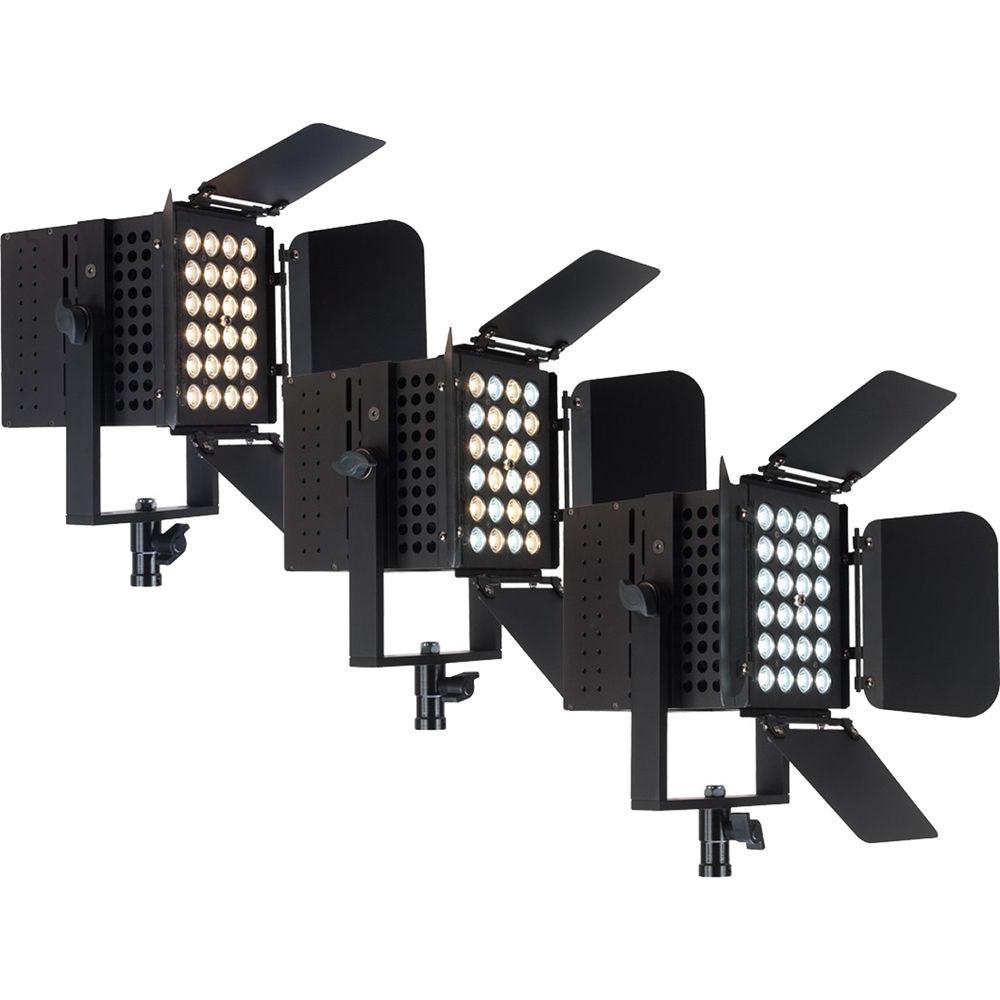

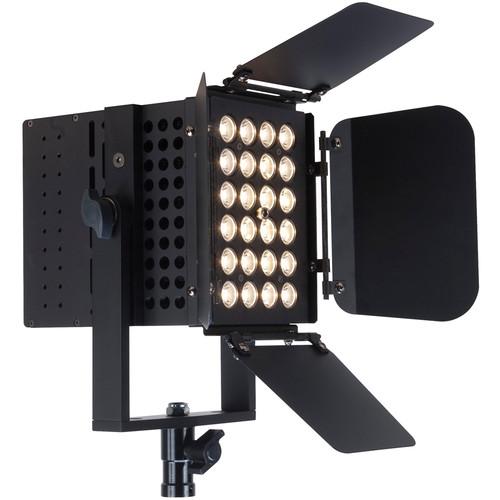

Product description The TVL3000 II WW LED Light features a low heat LED panel consisting of 24 warm white LEDs. The fixture which has a 115° beam angle without lenses, comes with 10, 25, 40, and 60° auxiliary lenses for maximum flexibility in an installation or on the road. Its multi-voltage power supply allows it to be used anywhere in the world while a 24 VDC battery option handles situations where power is unavailable. The TVL3000 II WW's color temperature is 3200K and dimming can be controlled manually or remotely via DMX. The light ships with 4-way barndoors and a filter frame. Flicker-free operation makes the fixture ideal for broadcast TV and film. Controls and connections include a powerCON input and 5-pin DMX in and out. Functions can be monitored with the fixtures rear-panel LED readout. - Features
-
- 24 x 3W high power 3200K white CREE LEDs
- Smooth flicker free dimming
- No fans, convection cooled for silent operation
- powerCON in/out
- Optional brackets for array mounting
- Use as key or hairlight

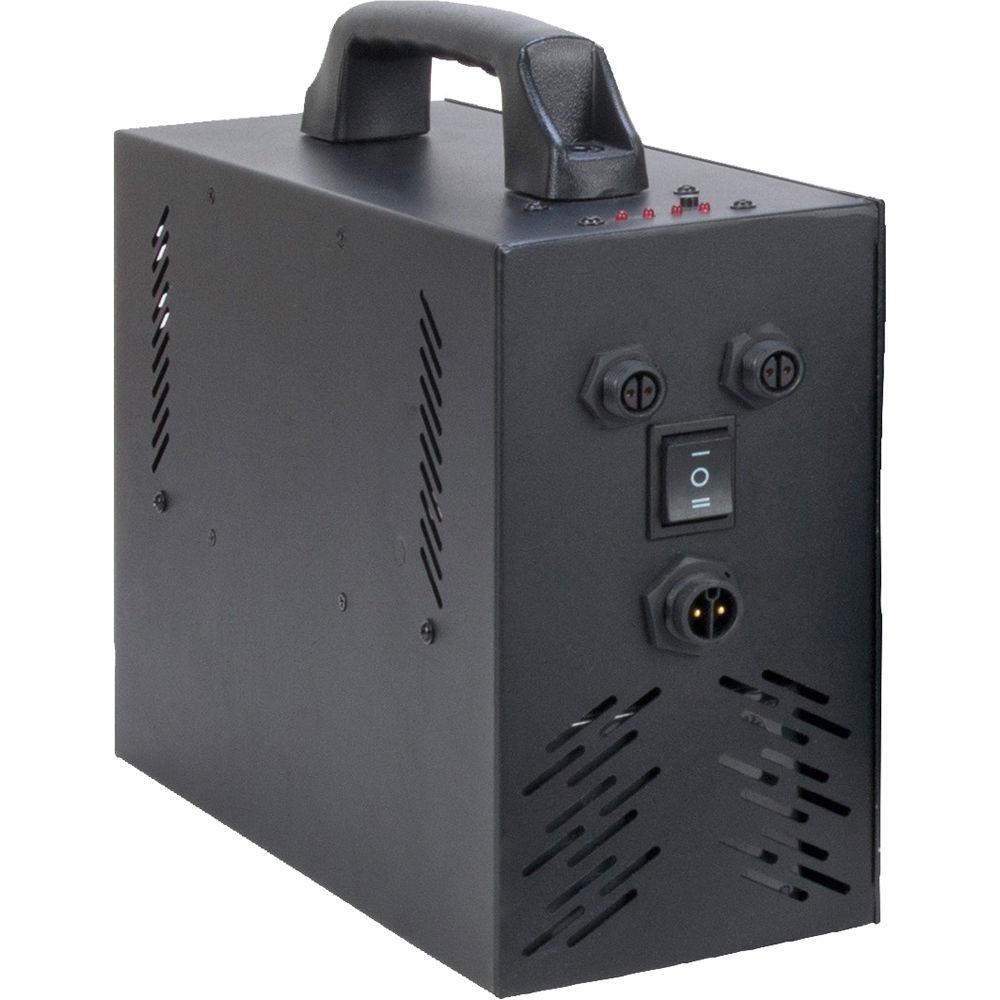

- 24V battery pack option
- Superior color mixing
- Gel frame included
- Smooth flicker-free dimming

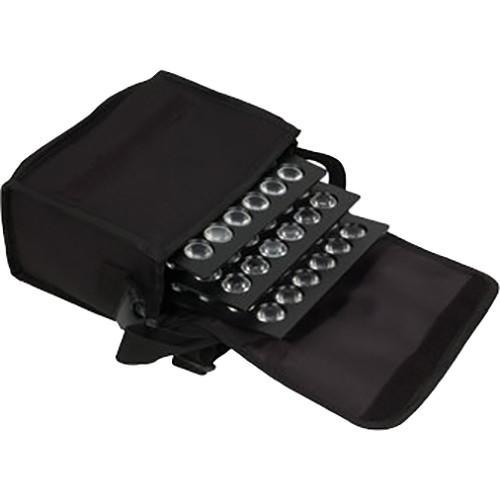

- Easy exchange replaceable lens kit design
- 10, 25, 40, 60° beam angle lens kits included
- 115° when used without lens
- 2 operation modes: manual and 1 channel DMX
- Die cast aluminum case

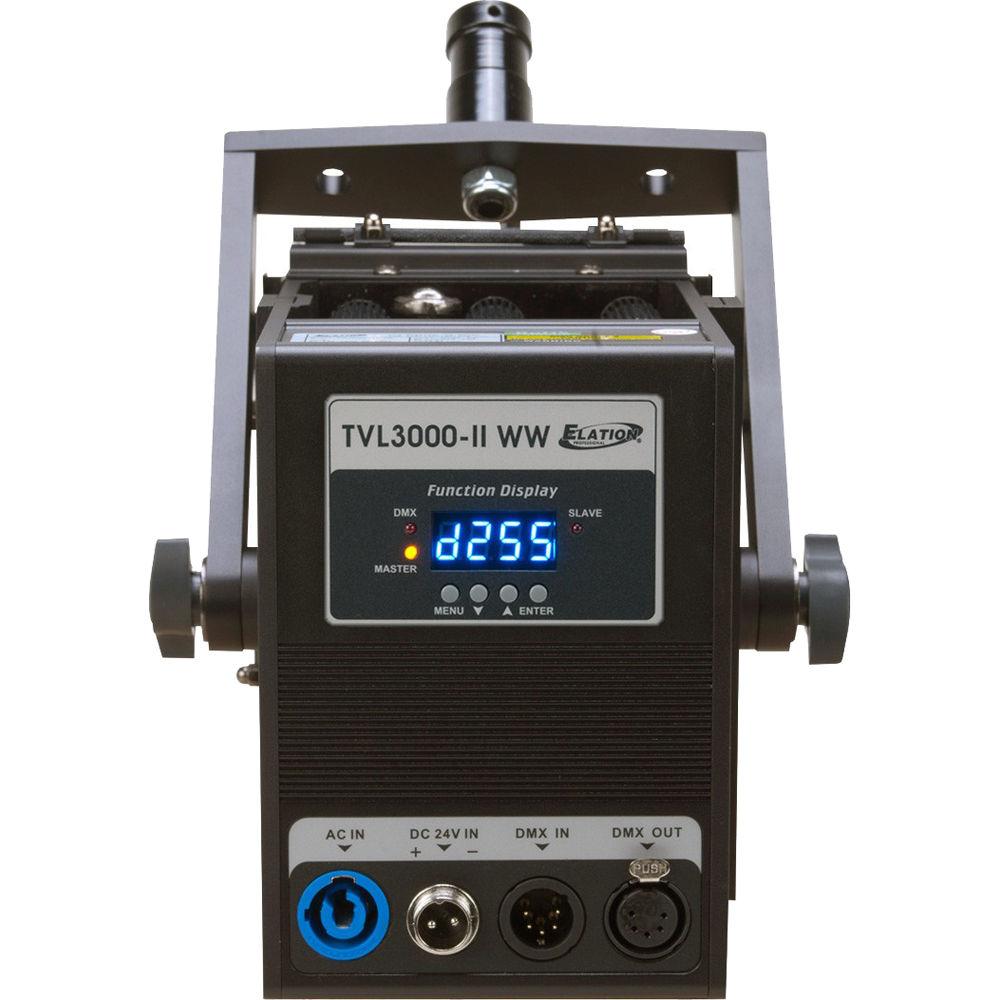

- LED menu display on rear of unit
- Adjustable barndoors
- powerCON in
- 120-240 VAC, 50/60 Hz
- Photometrics
- 10° Lens
2423 lux @ 16.4' (5.0 m) with a beam diameter of 4.26' (1.3 m)
25° Lens
1690 lux @ 16.4' (5.0 m) with a beam diameter of 6.0' (1.8 m)
40° Lens
540 lux @ 16.4' (5.0 m) with a beam diameter of 15.4' (3.6 m)
60° Lens
244 lux @ 16.4' (5.0 m) with a beam diameter of 29.5' (9.0 m) UPC: 837874015614 In the Box Elation Professional TVL3000 II WW LED Light Filter Frame Barndoors Lens: 25° Lens: 40° Lens: 10° Lens: 60° Limited 2-Year Warranty User Manual PDF 2.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional TVL3000 II WW LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElation Professional TVL3000-II WW Specs | | | Beam Angle | 115° | | Color Temperature | 3200K | | Cooling System | None | | Dimming | Yes | | Display | LCD | | Housing Material | Aluminum, Polymer | | Number of LEDs | 24 | | Fixture Dimensions | 12.5 x 8.7 x 7.9" / 317.0 x 222.0 x 200.0 mm | | Fixture Weight | 15 lb / 6.8 kg | | | | Battery Plate | 1 x Proprietary | | Power Input Connector | powerCON | | DMX Connector | 5-Pin XLR | | | | Yoke Mount | TVMP/ Hex Bolt | | Fixture Mount | None | | Accessory Mount | None | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 24 VDC | | Power Source | AC Adapter, External Battery | | Consumption Per LED | 3 W | | Max Power Consumption | 70 W | | | | Package Weight | 14.0 lb | | Box Dimensions (LxWxH) | 16.0 x 11.25 x 10.25" |
