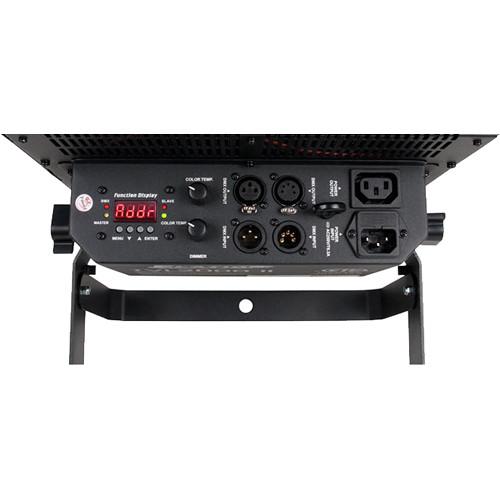

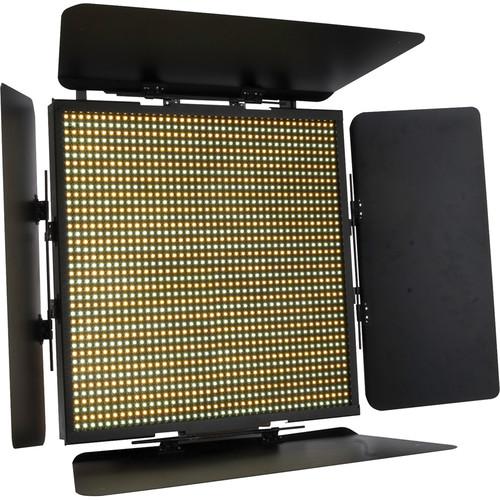

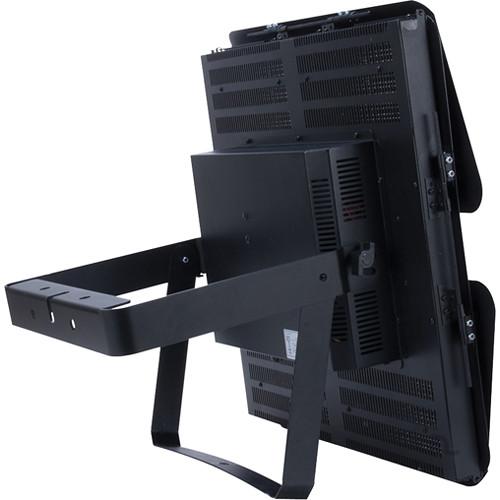

Product description The redesigned TVL4000 II Variable Color LED Panel from Elation Professional features a low heat, >90 CRI, dynamic LED array panel consisting of 800 warm white and 800 cool white LEDs with high output and a low power consumption of 160W. The panel has a 30° beam angle; variable, manual, and DMX-controlled color temperature from 3,200-6,500K; dimming from 0-100%; adjustable barn doors; and a magnetic gel/diffuser holder. The TVL4000 II offers flicker-free operation for broadcast TV, video, or cinema usage. It also has 3- and 5-pin DMX in/out and power in connections. Convenience features include a 4-button, 2-dial LCD display control panel, and a multi-voltage universal auto-switching power supply (100-240 VAC). - Attributes
-
- Low heat, >90 CRI dynamic LED array panel
- 30° Beam angle
- Variable color temperature: 3,200-6,500K
- Adjustable barn doors
- Magnetic gel/diffuser holder
- Manual and DMX-controlled color balance and dimming
- Flicker-free operation for broadcast TV and film
- Photometrics
- 1,500 lux/139 fc @ 6.6' (2.0 m) @ 3,200 K
1,900 lux/177 fc @ 6.6' (2.0 m) @ 6,500 K
3,400 lux/316 fc @ 6.6' (2.0 m) $ 4,500-5,000 K UPC: 837874017670 In the Box Elation Professional TVL4000 II Variable Color LED Panel Dual Yoke/Bracket Barndoors (4-Way) Magnetic Gel/Diffuser holder Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional TVL4000 II Variable Color LED Panel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElation Professional TVL4000 II Specs | | | Beam Angle | 30° | | Color Temperature | 3200 to 6500K | | Color Accuracy Standard | CRI 90 | | Cooling System | None | | Dimming | Yes, 0 to 100% (Continuous) | | Display | LCD | | Number of LEDs | 1600 | | Fixture Dimensions | 14.8 x 13.3 x 4.4" / 376.0 x 337.0 x 113.0 mm | | Fixture Weight | 15 lb / 6.8 kg | | | | DMX Connector | 3-Pin XLR, 5-Pin XLR | | | | Fixture Mount | None | | Accessory Mount | None | | | | Yoke Type | Yoke/Bracket | | Tilt | 180
