User Manual for Elation Professional USB-Powered MIDICON-2 Lighting Controller Click to enlarge the picture
Contents of the user manual for the Elation Professional USB-Powered MIDICON-2 Lighting Controller
- Product category: Lighting Consoles & Controllers Elation Professional
- Brand: Elation Professional
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Elation Professional Lighting Consoles & Controllers
 |
User manual for the Elation Professional USB-Powered MIDICON-2 Lighting Controller contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Elation Professional product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Elation Professional user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Elation Professional product will considerably shorten its lifespan!
|

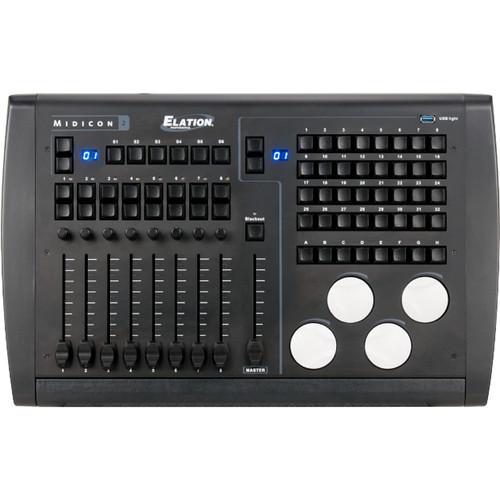

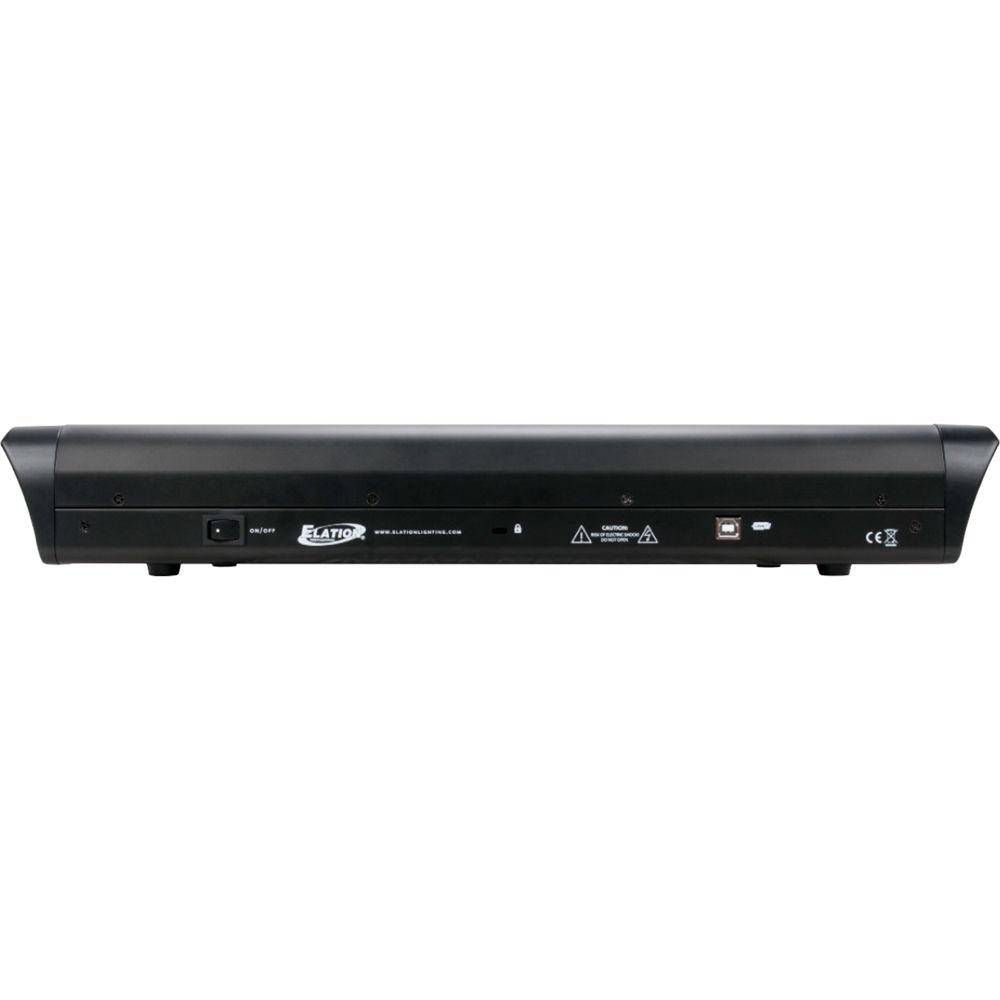

Product description What You Need to Know When Working with DMX Read More cautybbxfrczsvtvxffrvbqytcvcutvfe The MIDICON-2 USB-Powered MIDI Lighting Controller from Elation Professional is designed to control any Elation lighting software or any software that accepts MIDI. It is MIDI controlled via a rear USB 2.0 Type-B powered bus port and features eight control faders, one master fader, and tactile spring-loaded control buttons.
The controller is USB powered and uses the USB class drivers. The MIDICON-2 controller will automatically assign the standard MIDI driver that is included with either Windows or Apple operating systems. MIDI map for the MIDICON-2 controls can be created using the Elation MIDICON-2 mapper software. Lighting software programs supports MIDICON-2 as plug-and-play device.

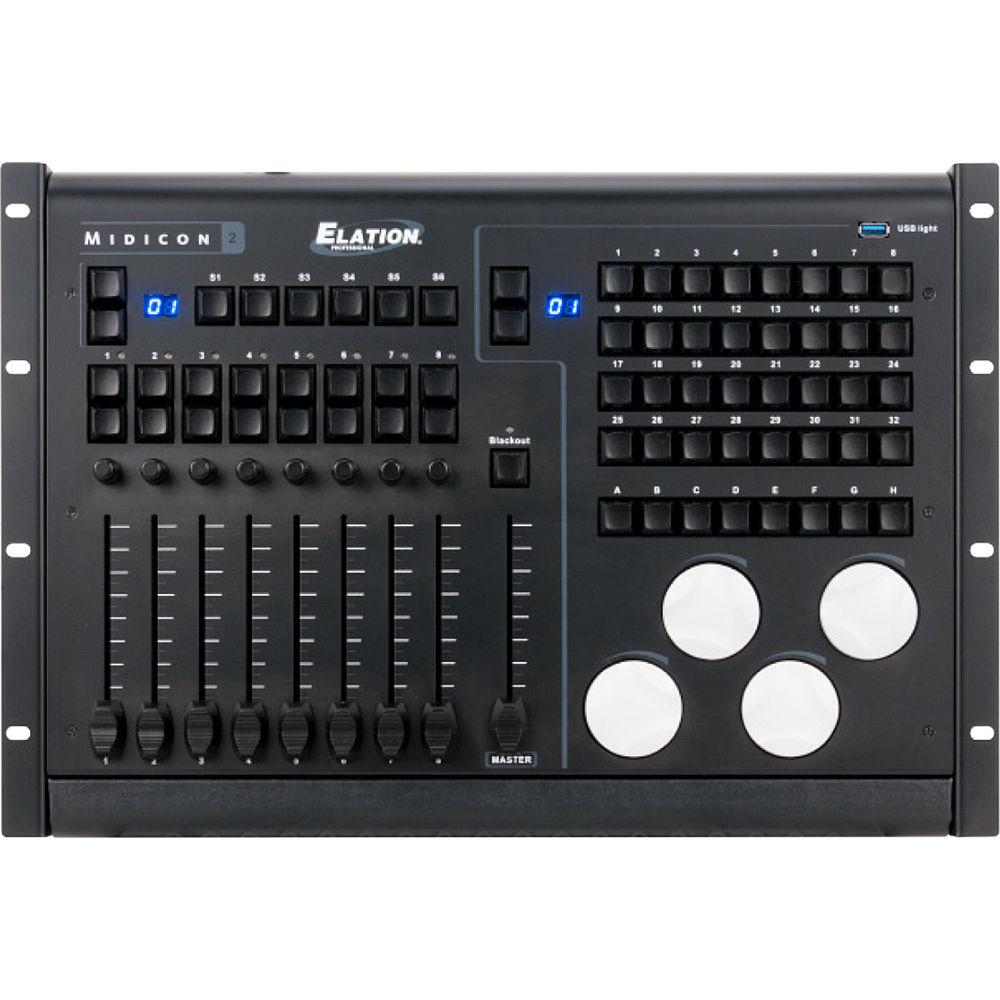

The front USB 2.0 Type-A provides power to a LED low power work light (available separately). A removable outer case for 6 RU rackmounting is included as well as a USB cable and rackmount kit. - USB input for gooseneck work light (available separately)
- Kensington security device slot
UPC: 837874019964 In the Box Elation Professional USB-Powered MIDICON-2 Lighting Controller USB Cable Rackmount Kit Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional USB-Powered MIDICON-2 Lighting Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElation Professional MIDICON-2 Specs | Controls | 6 x General Purpose Buttons
1 x Master 100mm Fader
8 x Control 100mm Faders
16 x Page Playback Buttons (Above Faders)
8 x Rotary Dials with Push-In Selection (Above Faders)
1 x Blackout Button
32 x Instant Effect or Scene Calling Buttons
8 x Bump/Momentary Effect Buttons
4 x Rotary Encoder Wheels with Push-In Selection | | USB Connection | USB 2.0 Type-A Connector for LED Low Power Work Light (Available Separately)
USB 2.0 Type-B Connector for Host Computer (MIDI Over USB) | | USB Bus Powered | 150 mA, 5 VDC | | Compatible Operating Systems | Windows and Apple | | Dimensions | 20.2 x 12.9 x 3.6" / 51.4 x 32.8 x 9.1 mm
Length with Rackmount Sides: 19" / 482.6 mm | | Weight | 15 lb / 6.8 kg | | | | Package Weight | 16.3 lb | | Box Dimensions (LxWxH) | 30.0 x 15.5 x 6.0" |
