User Manual for Elation Professional ZCL 360 BAR - RGBW LED Moving Light Click to enlarge the picture
Contents of the user manual for the Elation Professional ZCL 360 BAR -
- Product category: DJ & Effect Lights Elation Professional
- Brand: Elation Professional
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Elation Professional DJ & Effect Lights
 |
User manual for the Elation Professional ZCL 360 BAR - contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Elation Professional product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Elation Professional user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Elation Professional product will considerably shorten its lifespan!
|

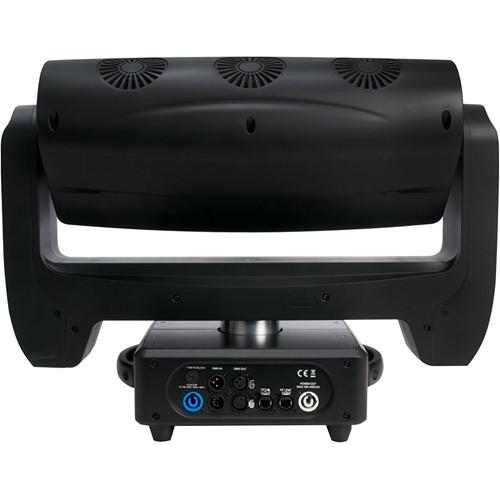

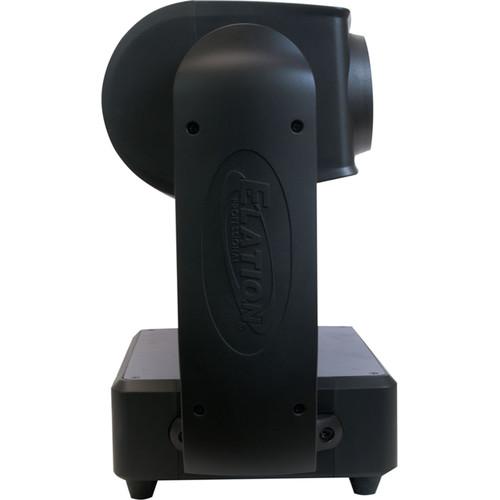

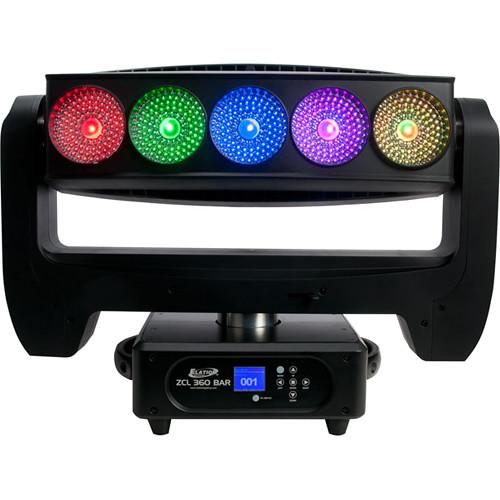

Product description The ZCL 360 BAR from Elation Professional is a versatile moving bar light powered by five individual 60W RGBW 4-in-1 LEDs and advanced collimator optic lens, which produces a laser-like homogenized 4° beam from each lens. It features 4 to 44° motorized zoom, 16-bit continuous 360° pan and tilt rotation, individual pixel control, flicker-free operation, strobe effects, selectable dimming curves, and RDM support. In addition to both XLR 3-pin and XLR 5-pin I/O connectors for DMX, the ZCL Bar 360 has RJ45 etherCON I/O connectors and supports Art-Net and Kling-Net protocols. The fixture's settings are easily configured via the full-color LCD menu display and a seven-button control interface. PowerCON input and output connectors allow for power linking, and a powerCON power cable and two Omega brackets are included with this fixture. -
- Versatile multiple-beam moving bar luminaire
- Continuous 360° pan/tilt rotation
- Pixel control
- 4 - 44° motorized zoom
- RGBW color mixing
- 8-/ 16-bit resolution adjustable movement
- 64 color macros and 14 unique program macros
- DMX, RDM, Art-Net, and Kling-Net support
- Flicker-free operation for broadcast TV and film
- Standard, pulse, and random strobe effects
- Electronic dimming (0 to 100%)
- Variable dimming curves
- Full-color 180° reversible LCD menu display
- 7-button touch control panel

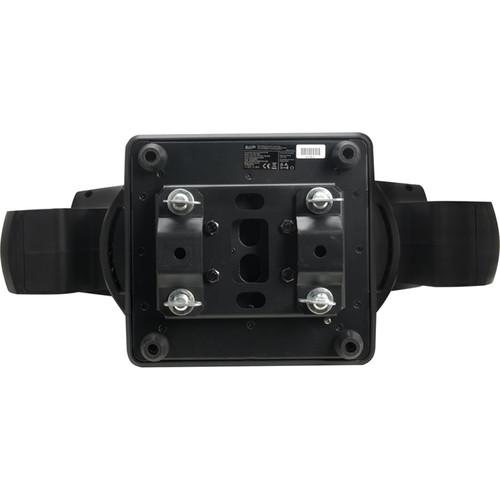

UPC: 837874019759 In the Box Elation Professional ZCL 360 BAR - RGBW LED Moving Light 2 x Omega Brackets PowerCON Power Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional ZCL 360 BAR - RGBW LED Moving Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElation Professional ZCL 360 Bar Specs | Light Source | 5 x RGBW LEDs, 60 W | | Lamp Life | 100,000 hours | | Illuminance | 4° (Full On): 25,230 lux / 2344 fc
44° (Full On): 819 lux / 76 fc | | Beam Angle | 4 - 44° | | Field Angle | 9 - 70° | | Zoom | Motorized | | Dimmer | Electronic | | Dimmer Curves | 5 x curves | | Shutter/Strobe | Electronic | | Built-In Programs | Yes | | Color Mixing | RGBW | | Zone Control | 1 or 5 zones | | Protocols | DMX, RDM, Art-Net, Kling-Net | | DMX Channel Modes | 19, 21, or 37 channels | | DMX Connectors | Input: XLR 3-pin, XLR 5-pin
Output: XLR 3-pin, XLR 5-pin | | Data Connector | Input: etherCON
Output: etherCON | | Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) | | Power Connectors | Input: powerCON
Output: powerCON | | Power Linking | Yes | | Power Consumption | 530 W | | Display/Controls | Full-color LCD display with 7-button control interface | | Operating Temperature | 5 to 113°F / -15 to 45°C | | IP Rating | IP30 | | Approvals and Certifications | CE, RoHS | | Weight | 53 lb / 24 kg | | Dimensions | 25.11 x 10.24 x 18.07 / 637.8 x 260 x 459 mm |
