User Manual for Elation Professional ZCL 360i RGBW Moving Head Fixture Click to enlarge the picture
Contents of the user manual for the Elation Professional ZCL 360i RGBW Moving
- Product category: DJ & Effect Lights Elation Professional
- Brand: Elation Professional
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Elation Professional DJ & Effect Lights
 |
User manual for the Elation Professional ZCL 360i RGBW Moving contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Elation Professional product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Elation Professional user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Elation Professional product will considerably shorten its lifespan!
|

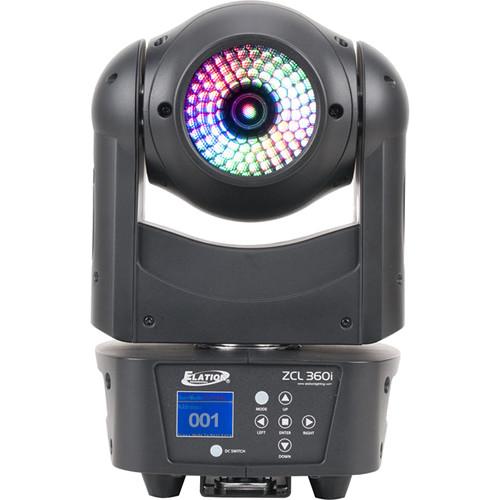

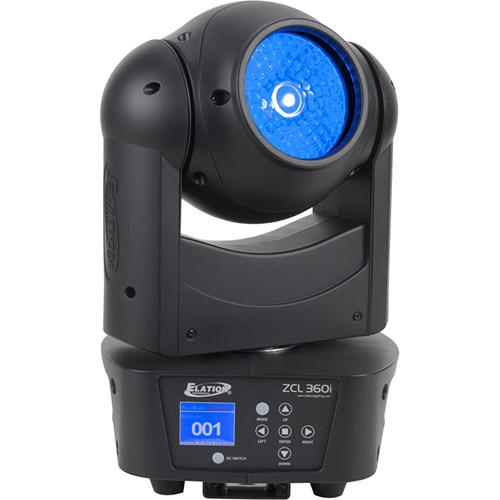

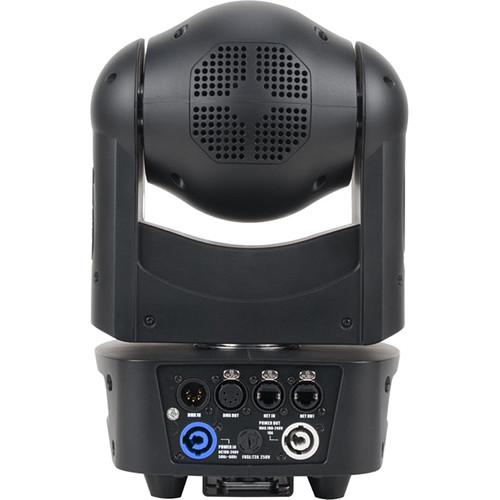

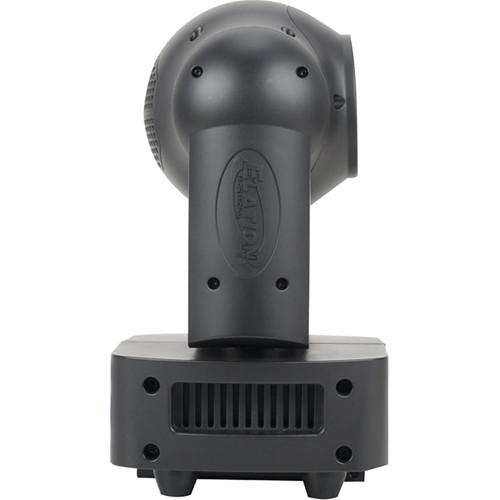

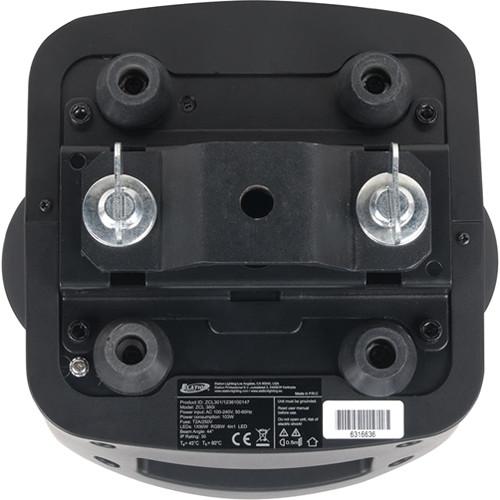

Product description The ZCL 360i RGBW Moving Head Fixture from Elation Professional is a single beam moving-effect luminaire with zoom, featuring one 90W RGBW 4-in-1 LED and the advanced collimator optic lens, which produces a laser-like homogenized 4° color-changing beam. Features 4° to 44° motorized zoom, fast and precise 16-bit continuous full 360° pan and tilt rotation, electronic strobe, dimmer, and selectable dimming curve effects. The luminaire comes with DMX, RDM, 5pin XLR, RJ45 etherCON, and powerCON in/out connections along with a seven button control full color 180° reversible menu display. Protocols like KlingNET and Art-NET are also supported. The fixture also features multiple unit power linking, flicker-free operation for TV and film, and a universal auto-switching power supply. -
- Single 4° beam moving bar effect luminaire with zoom
- 90W RGBW 4-in-1 LED
- 4° to 44° motorized zoom
- RDM (Remote Device Management)
- Advanced collimator lens
- Laser-like homogenized 4° color changing beam
- 64 color presets and 14 unique color macros
- Full color 180° reversible LCD menu display
- 7-button touch control panel
- Fast and precise 16-bit continuous 360° pan/tilt rotation
- Flicker-free operation for broadcast TV and film
- RGBW color mixing
- Strobe
- Electronic dimming (0% to 100%)
- Variable dimming curves
UPC: 837874019742 In the Box Elation Professional ZCL 360i RGBW Moving Head Fixture Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional ZCL 360i RGBW Moving Head Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElation Professional ZCL 360i Specs | Lamp | 90 W 4-in-1 RGBW (red, green, blue, white) LED | | Lamp Life | 100,000 hours, LED Life may vary due to environmental conditions | | Beam Angle | 4° | | Color | RGBW | | DMX Connectors | DMX in/out
5-pin XLR in/out | | Ethernet | RJ45 etherCON in/out (KlingNET/Art-NET) | | DMX Channels | 17, 19, 21 | | Power Connection Type | powerCON in/out | | Power Supply | 100 to 240 VAC, 50/60 Hz | | Ambient Temperature | 5 to 113°F (-15 to 45°C) | | Rating | CE, RoHs, IP30 | | Dimensions (L x W x H) | 8.74 x 7.31 x 13.22" (222 x 186 x 336 mm) | | Weight | 13 lb (5.9 kg) | | | | Package Weight | 17.7 lb | | Box Dimensions (LxWxH) | 15.5 x 10.65 x 9.75" |
