Product description

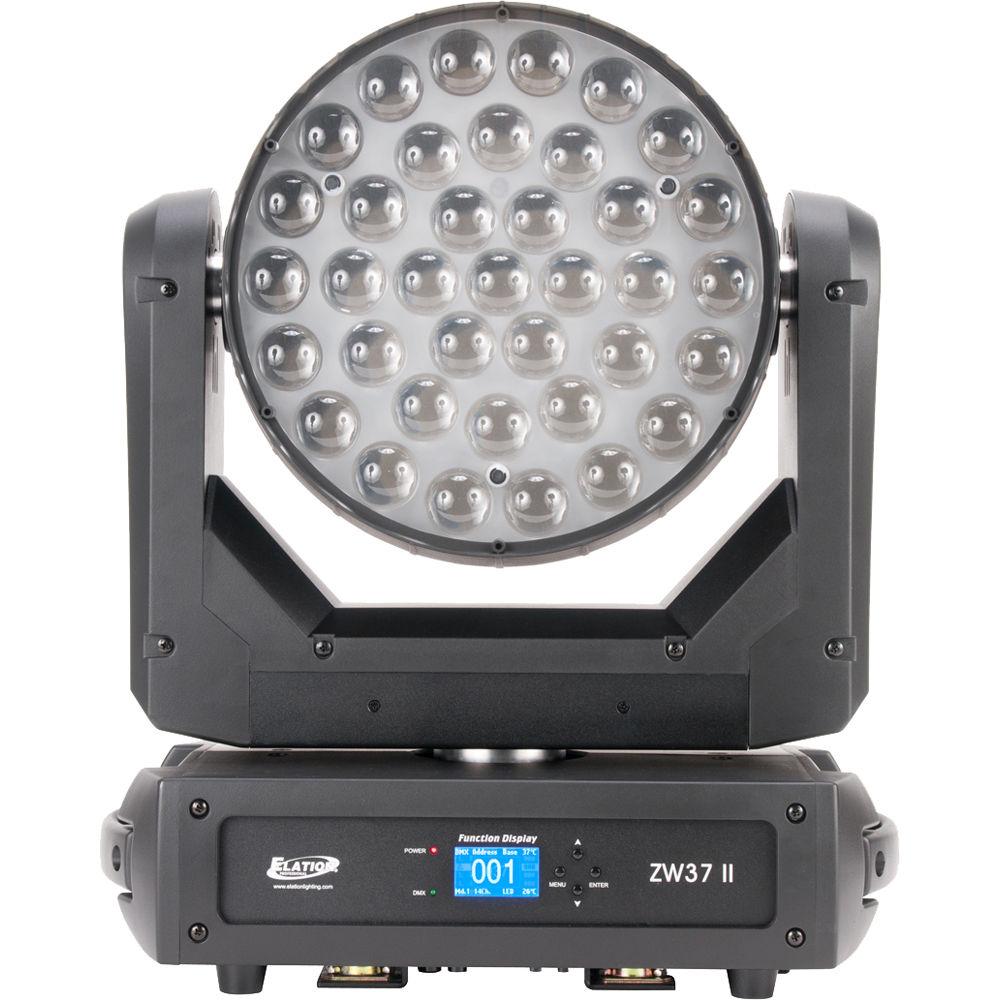

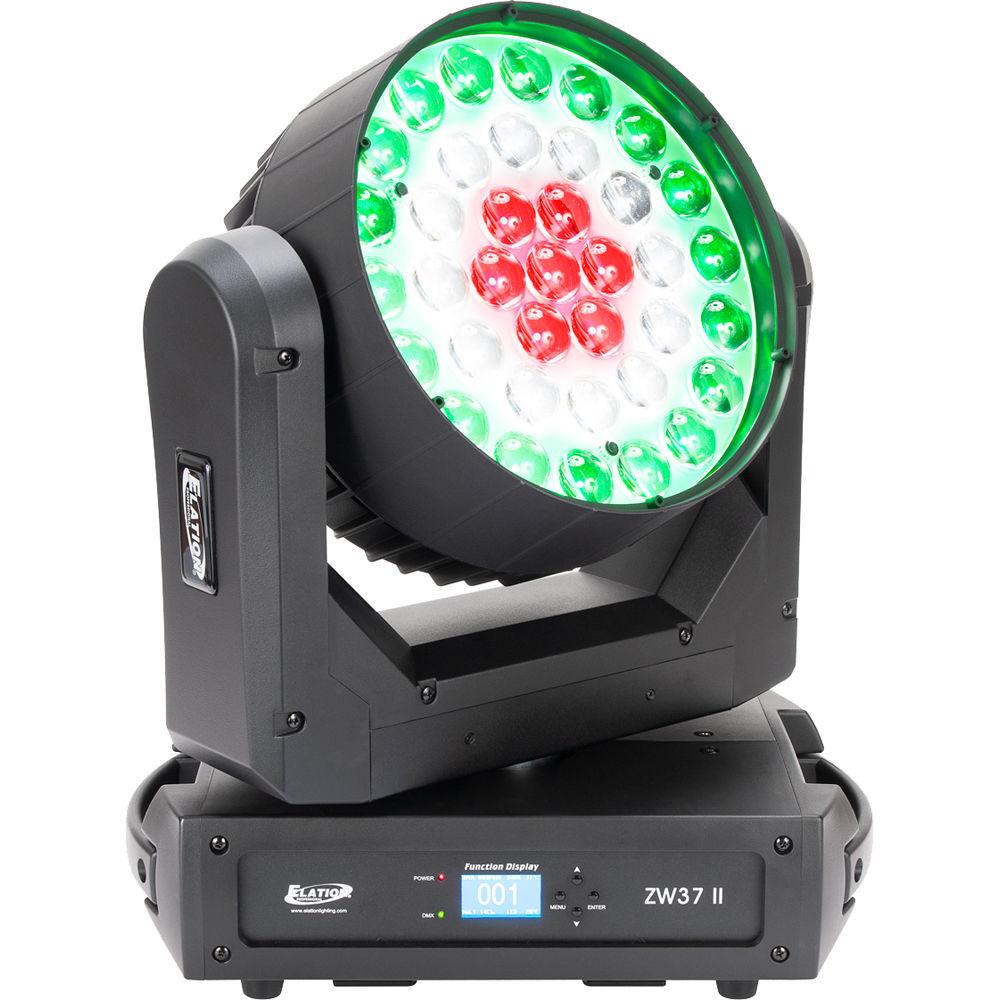

The Elation Professional ZW37 II is an LED moving head beam/wash effect luminaire, well-suited for special events, concerts, clubs, mobile DJs and more. The fixture utilizes 37 15W RGBW 4-in-1 LEDs and includes a 10° to 60° motorized zoom, 64 color macros, fast and precise 540° pan and 220° tilt rotation, 16-bit fine resolution adjustable movement, strobe, and selectable dimming curve effects.

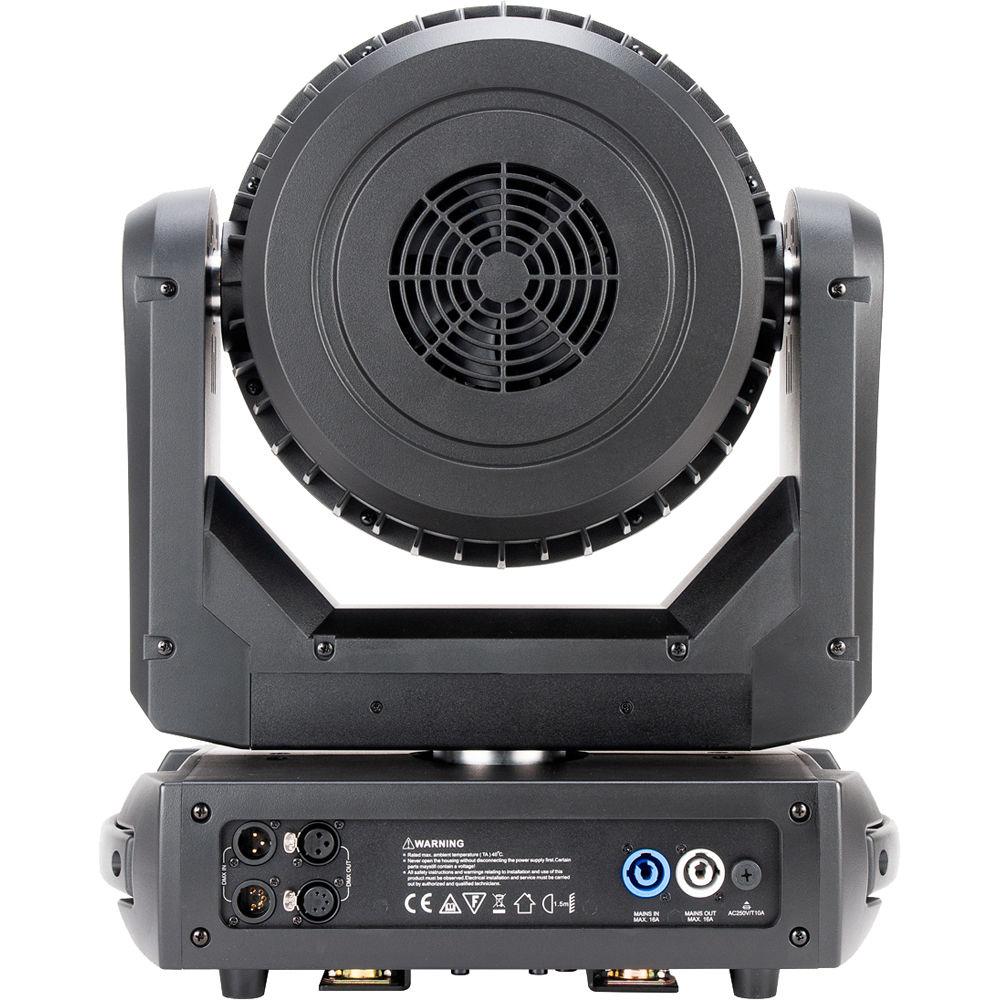

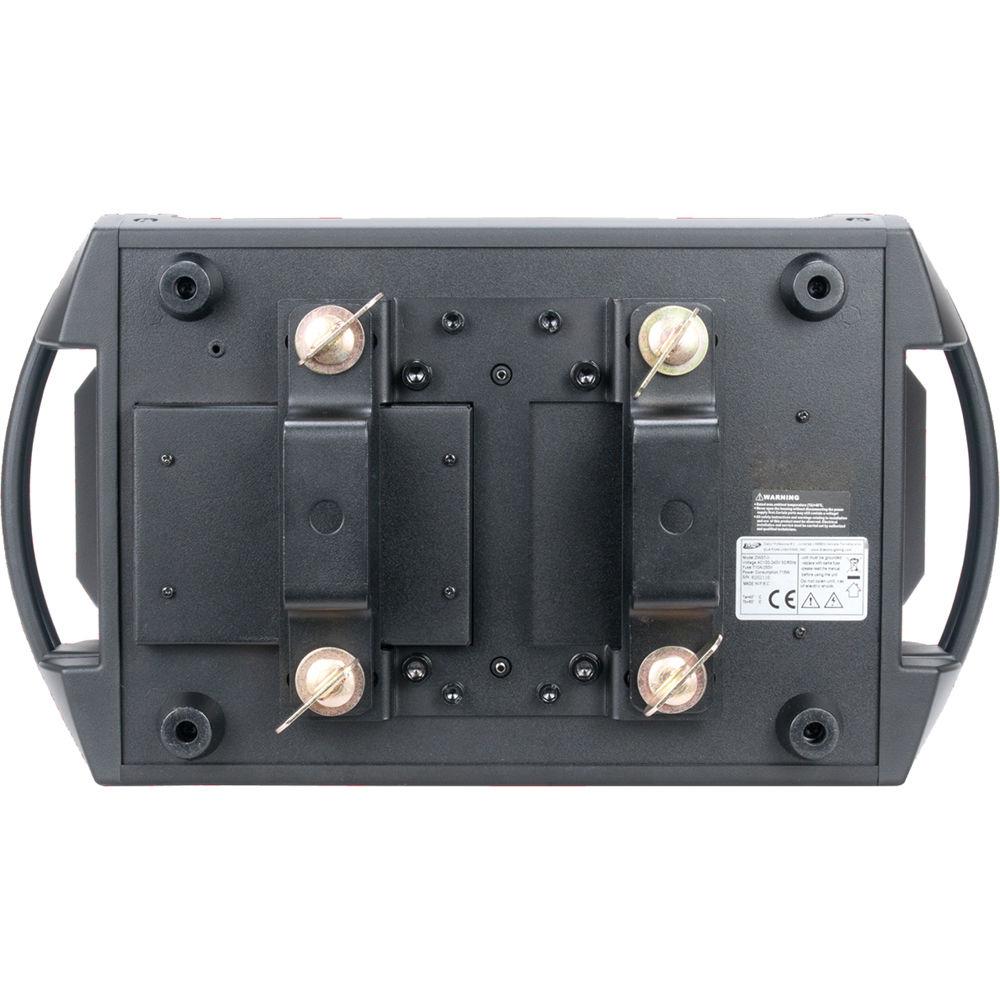

The ZW37 II can be controlled by DMX with three channel modes (14 / 22 / 42). The rear panel offers two DMX 5-pin DIN in/out connectors, two DMX 3-pin in/out connectors, two 5-pin in/out connectors, and two powerCON TRUE1 in/out connectors. Additionally, there is a 4-button control panel and menu display. The Elation Professional ZW37 II ships with omega brackets and a power cord.
    • LED moving head beam/wash effect luminaire
    • 37 x 15W RGBW 4-in-1 LEDs
    • Motorized Zoom: 10 to 60°
    • 64 color macros
    • Fast and precise 540° pan / 220° tilt rotation
    • 16-bit fine resolution adjustable movement
    • Strobe and selectable dimming curve effects
    • Multiple unit power linking
In the Box Elation Professional ZW37 II - Moving Head Beam/Wash Fixture with Zoom
  • Omega Brackets
  • powerCON TRUE1 Power Cord
  • Limited 2-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Elation Professional ZW37 II - Moving Head Beam Wash Fixture with Zoom in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Elation Professional ZW37-II Specs

    Light Source 37 x 15 W RGBW 4-in-1 LEDs
    20,000-hour average LED life
    Effects 64 x color macros
    Motorized Zoom: 10 to 60°
    Electronic Dimming: 0 to 100%
    Strobe and selectable dimming curves
    Color RGBW color mixing
    Control and Connectors 3 x DMX Channel Modes: 14, 22, 42
    4-button touch control panel
    Pan: 540°
    Tilt: 220°
    Pan/tilt inverse mode
    LCD menu display
    16-bit fine resolution adjustable movement
    3-pin/5-pin DMX in/out
    Power Requirements 100 to 230 VAC, 50/60 Hz
    Power Consumption Maximum 715 W
    Power Linking Power link up to 3 units at 120 V (6 units at 230 V)
    Operating Temperature -4 to 104°F / -20 to 40°C
    Approvals CE
    Ratings IP20
    Dimensions (L x W x H) 16.9 x 12.0 x 20.2" / 429.3 x 304.8 x 513.1 mm
    Weight 43.0 lb / 19.5 kg
