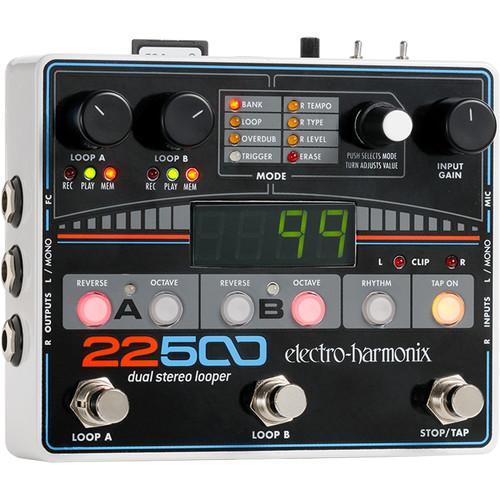

User Manual for Electro-Harmonix 22500 Dual Stereo Looper Pedal Click to enlarge the picture
Contents of the user manual for the Electro-Harmonix 22500 Dual Stereo Looper Pedal
- Product category: Effects Pedals Electro-Harmonix
- Brand: Electro-Harmonix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Harmonix Effects Pedals
|
User manual for the Electro-Harmonix 22500 Dual Stereo Looper Pedal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Harmonix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Harmonix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Harmonix product will considerably shorten its lifespan!
|
Product description With the Electro-Harmonix 22500 Dual Stereo Looper pedal you can record, play back, and overdub two channels of 16-bit uncompressed audio at a 44.1 kHz sampling rate; any loop can be stored in a bank on a removable SDHC card. Both looping channels have reverse and octave functions, undo/redo capability for deleting or restoring your last recorded loop, a quantizing option for syncing your tracks, and LED indicators displaying looping and memory modes. Loops can be created using several configurations in sequential, parallel or free-form modes. Additionally, the 22500 has 16 built-in drum loops.
The 22500 has an XLR input with a mic trim knob and switchable phantom power, as well as a 1/4" input for guitars, basses, keyboards, and more. The input gain knob sets the overall gain for both the left and right inputs and also sets the output level of your dry signal. The loop A and B volume knobs set the output volume for their respective loop channels. The 22500 can output in mono via the left 1/4" output, or in stereo using both the left and right 1/4" outputs. A USB port allows for direct transfer of files to a computer, without the need for an SDHC card reader.
With the mode/value knob you can cycle through and adjust one of the 8 modes. The stop/tap footswitch has three functions: stop everything, start and stop rhythm loops, and tap savable tempos for all loops. Trigger mode enables automatic loop recording when there is audio input. The foot controller (available separately) allows for bank scrolling and bank jumping. The 9V/500mA power supply and an 8GB SDHC card are included. -
- Dual stereo loops with independent or locked loop lengths
- Create free-form or quantized loops that are locked together
- Sequential and parallel looping modes
- 16 built-in drum loops
- 100 loop banks per SDHC card, each bank containing up to 2 loops
- Maximum loop time of 6 hours
- Selectable microphone input with phantom power
- Reverse and octave functions
- Undo/redo your last overdub or recording
- Quantize or non-quantize modes
- USB port enables backup/restore to PC or Mac
- 8GB SDHC card included – up to 12 hours of recording time
- Programmable third footswitch for stop, tap-tempo, rhythm start/stop
- Optional external foot controller
- Power supply included
UPC: 683274011660 In the Box Electro-Harmonix 22500 Dual Stereo Looper Pedal Power Supply 8GB SDHC Card Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Harmonix 22500 Dual Stereo Looper Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Harmonix 22500 Specs | Inputs | 1 x XLR
1 x 1/4" mono
1 x 1/4" foot controller jack (foot controller available separately) | | Outputs | 2 x 1/4" L/R (left is mono) | | Memory Specifications | Type: SDHC
Capacity: 4-32GB
Speed Class: 4 or above recommended
100 x banks per card, with two loop channels per bank | | Approximate Record Times | 4 GB = 6 hours
8 GB = 12 hours
16 GB = 24 hours
32 GB = 48 hours
Maximum Record Time for a Single Loop: 6 hours (regardless of card size) | | Controls | Switches
1 x +45 VDC phantom power on/off
1 x mic or instrument input
1 x loop A footswitch
1 x loop B footswitch
1 x stop/tap/rhythm footswitchButtons
2 x octave (1 per loop channel)
2 x reverse (1 per loop channel)
1 x rhythm
1 x tap on
Knobs
1 x mic trim
1 x output gain
1 x loop A volume
1 x loop B volume
1 x mode (selects modes and adjusts values) | | LED Indicators | REC, PLAY, MEM: 3 x LEDS per loop channel; indicates loop status
TRIGGER: 1 x LED
CLIP L/R: 2 x LEDs
MODE: 8 x LEDs | | Ports | 1 x USB Type-B
1 x SDHC | | Display | 4-digit LED display | | Power Supply | Output: 9.6 VDC, 500 mA
Battery operation not supported | | Dimensions (W x L x H) | 4.8 x 5.8 x 2.5" / 12.1 x 14.6 x 6.4 cm | | | | Package Weight | 1.95 lb | | Box Dimensions (LxWxH) | 8.0 x 6.6 x 3.3" |
