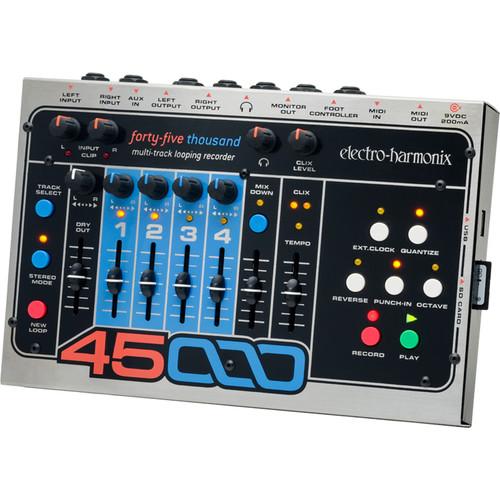

User Manual for Electro-Harmonix 45000 Multi-Track Stereo Looping Recorder Click to enlarge the picture
Contents of the user manual for the Electro-Harmonix 45000 Multi-Track Stereo Looping Recorder
- Product category: Effects Pedals Electro-Harmonix
- Brand: Electro-Harmonix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Harmonix Effects Pedals
|
User manual for the Electro-Harmonix 45000 Multi-Track Stereo Looping Recorder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Harmonix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Harmonix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Harmonix product will considerably shorten its lifespan!
|
Product description The 45000 Multi-Track Stereo Looping Recorder from Electro-Harmonix combines the controls of a multi-track digital recorder with features that make it possible to create and manipulate complex multi-track loops quickly and easily. The recorder offers uniformity in syncing and integration with any of your current equipment.
Each loop has four mono tracks, and one stereo mix-down track that allows you to create a spatial stereo pair while freeing up previous tracks to add more instruments. The 45000 records at the industry CD standard of 44.1 kHz /16 bit uncompressed digital audio direct to a removable SDHC card (4 to 32GB). Each card holds up to 100 individual loops accessed with the optional 45000 Foot Controller (sold separately). Additionally, you can import your own audio files and play them back or manipulate them on the 45000 as if the unit itself recorded the files.
Loop speed is adjustable over a two octave range, and reverse recording and playback are also possible. For extra convenience, a built-in metronome to a separate Monitor Output and a Headphone Output are also included. - Includes a 4GB card delivering up to 125 minutes of recording time
- Can import .Wav audio files from PC or Mac
- USB port enables backup/restore with PC or MAC
- Most user parameters are MIDI controllable
- MIDI Clock Sync as master or slave
- Auxiliary input mixes MP3 players with the loop output
- Quantize or non-quantize (free running) modes, overdub or punch in/out recording, and stereo mixdown track frees tracks for re-use
UPC: 683274011295 In the Box Electro-Harmonix 45000 Multi-Track Stereo Looping Recorder 4GB SDHC card 9.6VDC 200mA Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Harmonix 45000 Multi-Track Stereo Looping Recorder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Harmonix 45000 Specs | Connectors | Inputs:
1/4" phone jack, left input
1/4" phone jack, right input
5-pin MIDI jack, input
Jack, AUX stereo input
DC Power jack, power input
Outputs:
1/4" phone jack, left output
1/4" phone jack, right output
1/4" phone jack, monitor output
1/4" phone jack, headphone output
5-pin MIDI jack, output
1/4" phone jack, footswitch control | | Impedance | Input: 1 MΩ
AUX Input: 9.5 kΩ
Output: 400 Ω
Headphone output: 0.1 W into 16 Ω | | Controls | 1 x Button: Play
1 x Button: Record
1 x Button: New Loop
1 x Button: Reverse
1 x Button: Punch-In
1 x Button: Octave
1 x Button: Quantize
1 x Button: External Clock
1 x Slider: Dry-Out Fader
1 x Knob: Dry-Out
1 x Button: Track Select
4 x Slider: Track Fader
1 x Button: Stereo Mode
1 x Button: Mix Down
1 x Slider: Mix Down Fader
1 x Slider: Tempo
1 x Knob: Clix Level
1 x Knob: Left Input
1 x Knob: Right Input | | Indicators | 1 x LED: Record
1 x LED: Play
1 x LED: Reverse
1 x LED: Punch-in
1 x LED: Octave
1 x LED: Quantize
1 x LED: External clock
4 x LED: Record tracks
1 x LED: Stereo mode
1 x LED: Mixdown
1 x LED: Tempo
1 x LED: Clix
1 x LED: Left input clip
1 x LED: Right input clip | | Audio Compression Format | Non-compressed, 44.1 kHz / 16-bit CD quality | | Import File Types | .wav with 16-bit resolution and 44.1 kHz sample rate | | Port | USB | | Compliance | FCC | | | | Package Weight | 3.95 lb | | Box Dimensions (LxWxH) | 12.2 x 9.5 x 4.2" |
