User Manual for Electro-Harmonix 8-Step Program Analog Expression CV Sequencer Pedal Click to enlarge the picture
Contents of the user manual for the Electro-Harmonix 8-Step Program Analog Expression CV
- Product category: Effects Pedal Accessories Electro-Harmonix
- Brand: Electro-Harmonix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Harmonix Effects Pedal Accessories
|
User manual for the Electro-Harmonix 8-Step Program Analog Expression CV contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Harmonix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Harmonix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Harmonix product will considerably shorten its lifespan!
|

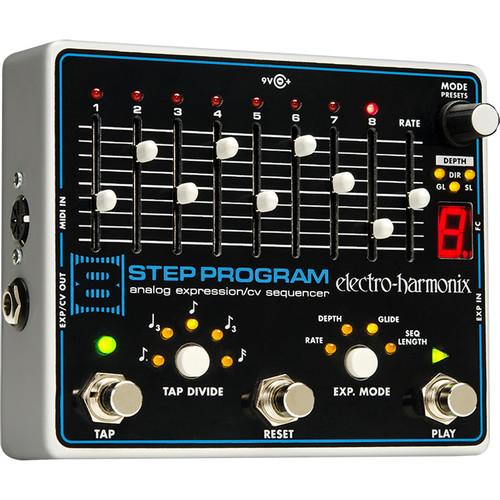

Product description The 8-Step Program from Electro-Harmonix is an analog expression/CV sequencer pedal that connects to the expression pedal input of many different types of effects pedals, keyboards, and other devices. The 8-Step Program replaces your expression pedal, controlling parameters such as oscillators, filters, and delay parameters in a sequential fashion rather than continuously, as you normally do with an expression pedal. Additionally, the 8-Step can be connected to devices that have Control Voltage (CV) inputs.
Set your tempo with the Rate slider or Tap Tempo footswitch, or sync to a drum machine or DAW via MIDI clock. Six Tap Tempo Divide modes provide rhythmic diversity. Add the optional 8-Step Program Foot Controller (available separately) and save up to 100 presets. -
- Sequence length is selectable between 1 and 8 steps
- Four available Direction Modes: Forward, Reverse, Bounce, and Random
- Depth and Glide of the sequence output is encoder adjustable
- Tap Tempo Footswitch allows you to set the tempo with your foot and can be divided down for faster tempos from the same tap tempo
- Three available Play Modes: Loop, 1-Shot, and Step-Thru (Manual)
- Reset Footswitch instantly resets the sequence back to its beginning
- Expression In allows external control over Rate, Depth, Glide, or Sequence Length
- Expression In doubles as an External CV Clock input allowing the 8-Step to be synced to an external clock
- MIDI IN jack allows the 8-Step tempo to be synced to MIDI Clock
- Full MIDI control over every parameter on the 8-Step
- Comes supplied with a ¼” TRS (stereo) cable for expression control. Use a standard ¼” TS (mono) instrument cable for CV control (0-5V)
- Save and load up to 10 presets
- Add the optional 8-Step Foot Controller to save and load up to 100 presets
In the Box Electro-Harmonix 8-Step Program Analog Expression/CV Sequencer Pedal Power Supply 1/4" TRS Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Harmonix 8-Step Program Analog Expression CV Sequencer Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Harmonix 8STEP Specs | Connections | EXP/CV OUT
EXP IN
FC IN
MIDI IN
9 V Power IN | | Power Requirements | 100 mA at 9 VDC with a center negative plug (power supply included) | | Dimensions | 4.75 x 5.75 x 2.5" (146 x 121 x 64 mm) |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 42 owners. Add your rating and experience with the product.
