User Manual for Electro-Harmonix 95000 Performance Loop Laboratory Pedal with Included Power Supply Click to enlarge the picture
Contents of the user manual for the Electro-Harmonix 95000 Performance Loop Laboratory Pedal
- Product category: Effects Pedals Electro-Harmonix
- Brand: Electro-Harmonix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Harmonix Effects Pedals
 |
User manual for the Electro-Harmonix 95000 Performance Loop Laboratory Pedal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Harmonix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Harmonix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Harmonix product will considerably shorten its lifespan!
|
Product description - EHX 95000 Performance Loop Laboratory Demo by Bill Ruppert
- Reggie Watts Demos the EHX 95000 Performance Loop Laboratory
- EHX 95000 Performance Loop Laboratory
- Olivia Thai performs with the EHX 95000 Performance Loop Laboratory

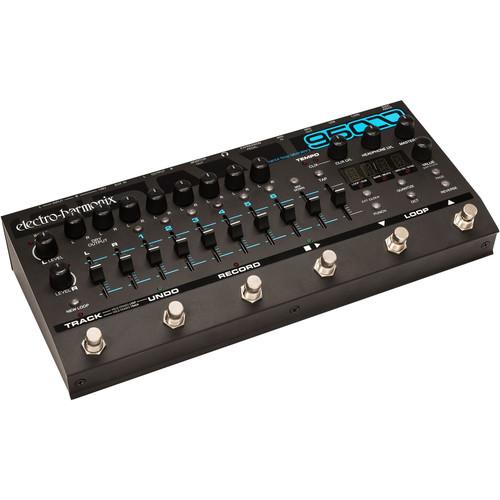

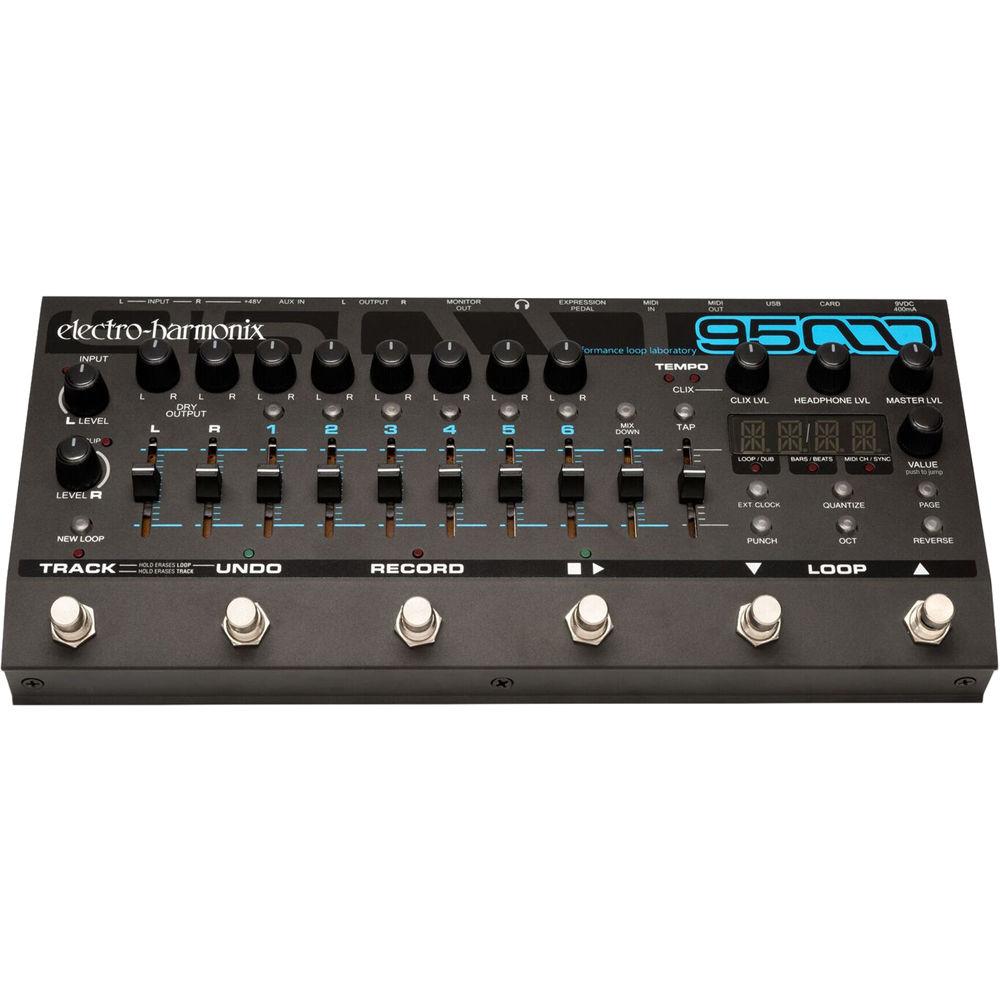

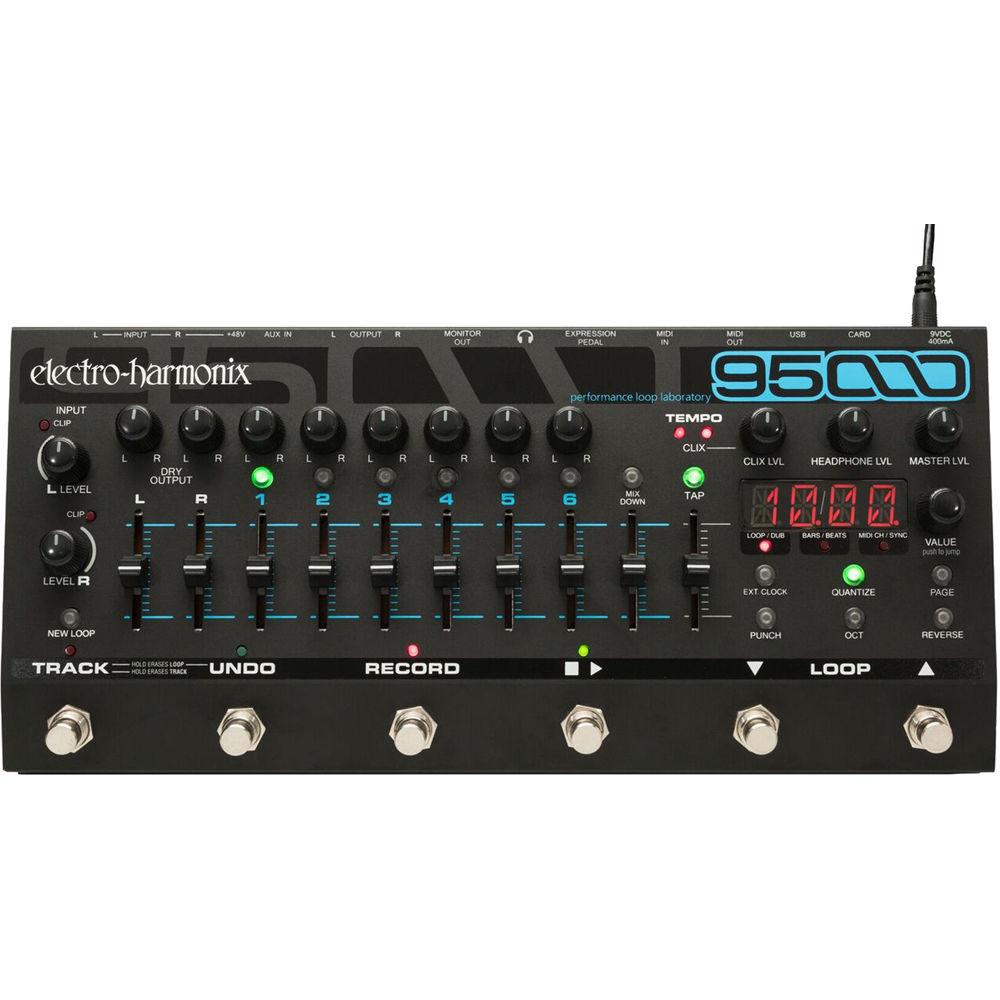

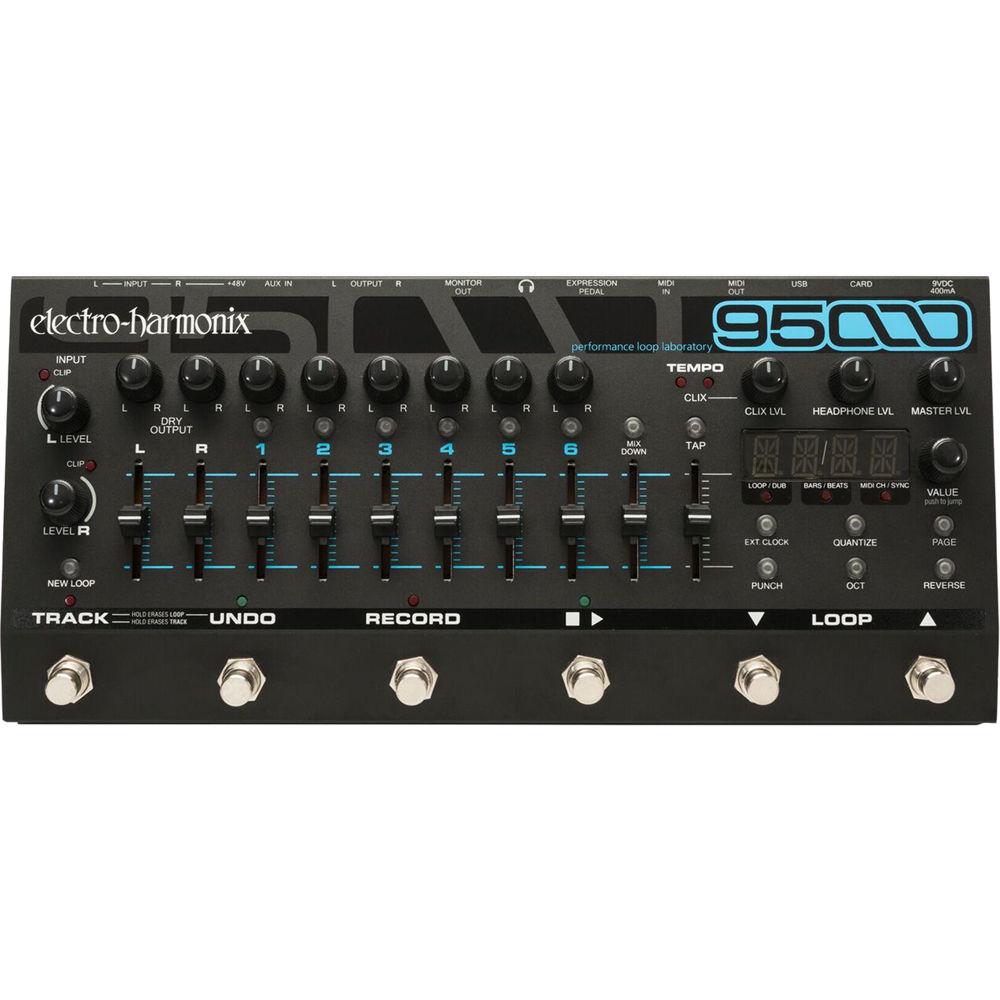

Designed for all sorts of instrumentalists, from guitar players to vocalists to anything in between, the Electro-Harmonix 95000 is a looper giving you six mono tracks per loop, each with its own volume fader and pan knob. There’s also a seventh stereo mix down track. This stereo pair can receive audio from the six mono tracks, or it can play pre-recorded material, such as drum and bass loops. In fact, as the looper includes a microSDHC card, you can store up to 100 patterns of backing tracks, up to 375 minutes. Imagine all the interesting things you could do! For instance, you could record multiple parts and then dump them on the stereo mixdown track, only to keep layering even more audio on top.Housed in a durable aluminum chassis, the 95000 gives you many inspiring controls, such as a two-octave speed parameter (adjustable by fader and operating in either Fine or Coarse mode), an octave button (for instantaneously halving the playback speed), a reverse option, and quantize and non-quantize modes. Of course, you can punch in and overdub audio on any track. An undo/redo footswitch is on hand—or rather, under foot—for creative/utilitarian purposes.Turn your attention back panel and you’ll note a bevy of connections. You’ll see combination XLR-1/4” inputs for instruments and microphones, as well as multiple outputs. A stereo pair of 1/4" outputs are offered, as well as monitor and headphone jacks; these allow you to adjust your input-to-loop level separately, without affecting the stereo output path.Should you wish to play to a click, the metronome will be fed to your monitor or headphone output, but never the main output jacks; this spares the audience from hearing the click. Use the USB port to interface the 95000 with your computer, moving/copying loops to and from either destination. With 5-pin MIDI connections, you can sync two different 95000 loopers for a total of 14 mono tracks. A power supply is included, as is a 16GB microSDHC card. - Key Features at a Glance
-
- Total recording time up to 375 minutes with 16GB card
- Stores up to 100 multitrack loops per card
- 6 tracks plus one stereo mixdown track
- Records one or two tracks (stereo or 2 mono) at once
- Stereo dry output level controls
- Undo/redo your last recording/overdub on a per-track basis
- Overdub (DUB) with adjustable feedback amount
- Reverse button instantly changes loop direction
- Octave button instantly halves the loop’s playback speed
- Quantize function allows for playing along with CLIX metronome and locking loops to external devices
- Combo mic/instrument/line inputs with adjustable gain and phantom power
- Headphone output
- Data entry rotary knob
- 4-digit LED display
- TAP tempo
- Octave/reverse/quantize functions
- Removable microSDHC memory card (16GB card included)
- USB port for easy transfer of files to and from computer
- MIDI-clock sync and control
- Expression pedal input jack to control loop audio volume
- 20 factory-supplied drum loops
- Convenient dedicated footswitch functions
- Rugged, all-metal stageworthy chassis
UPC: 683274011950 In the Box Electro-Harmonix 95000 Performance Loop Laboratory Pedal with Included Power Supply 16GB microSDHC Memory Card 9.6 VDC 0.5A Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Harmonix 95000 Performance Loop Laboratory Pedal with Included Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Harmonix 95000 Specs | Input Impedance | Left and right 1/4" inputs: 2 MOhms
Left and right XLR inputs: 2.5 kOhms
AUX input: 9.5 kOhms | | Output Impedance | Left and right 1/4" outputs: 400 Ohms
Monitor 1/4" output: 400 Ohms
Headphones output: 2 Ohms | | Digital Audio Resolution | 16-bit / 44.1 kHz | | Maximum Memory Card Size Supported | 32 GB | | Recording Time | Up to 375 minutes on included 16 GB microSDHC memory card | | Headphone Output Power | 0.1 W into 16 Ohms | | Power Supply | 9.6 VDC 0.5 A power supply | | Current Draw | 400 mA at 9 V (maximum allowable power supply voltage is 10.5 VDC) | | Dimensions (W x L x H) | 12.6 x 5.9 x 2.6" / 32.0 x 15.0 x 6.6 cm | | Weight | Not specified by manufacturer | | | | Package Weight | 4.5 lb | | Box Dimensions (LxWxH) | 15.8 x 6.5 x 3.5" |
