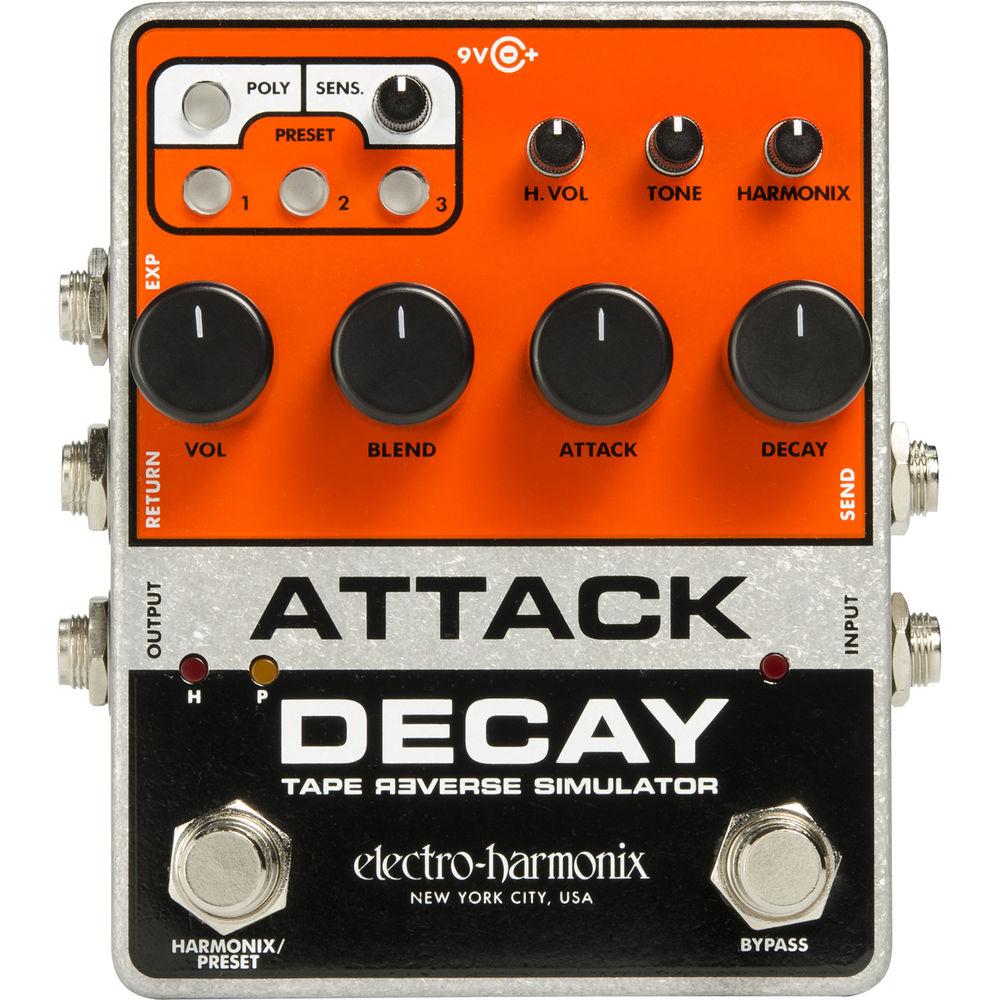

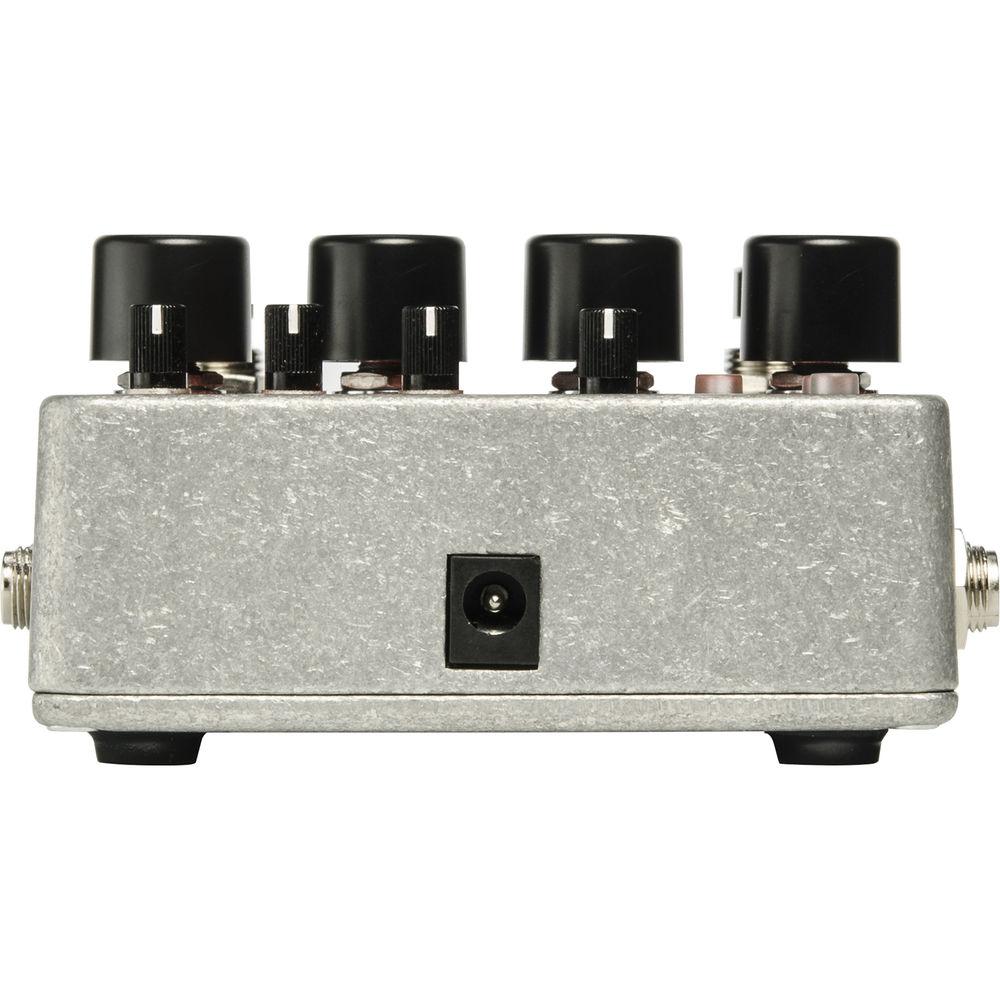

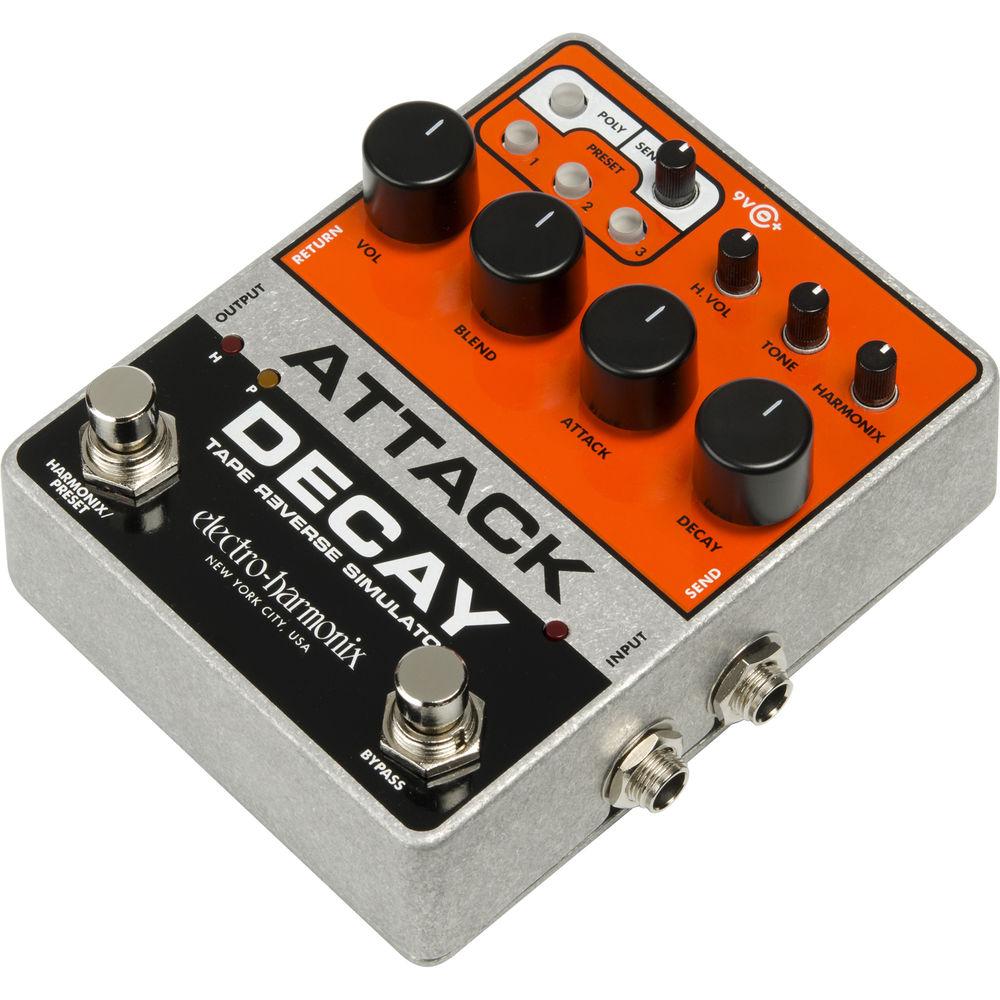

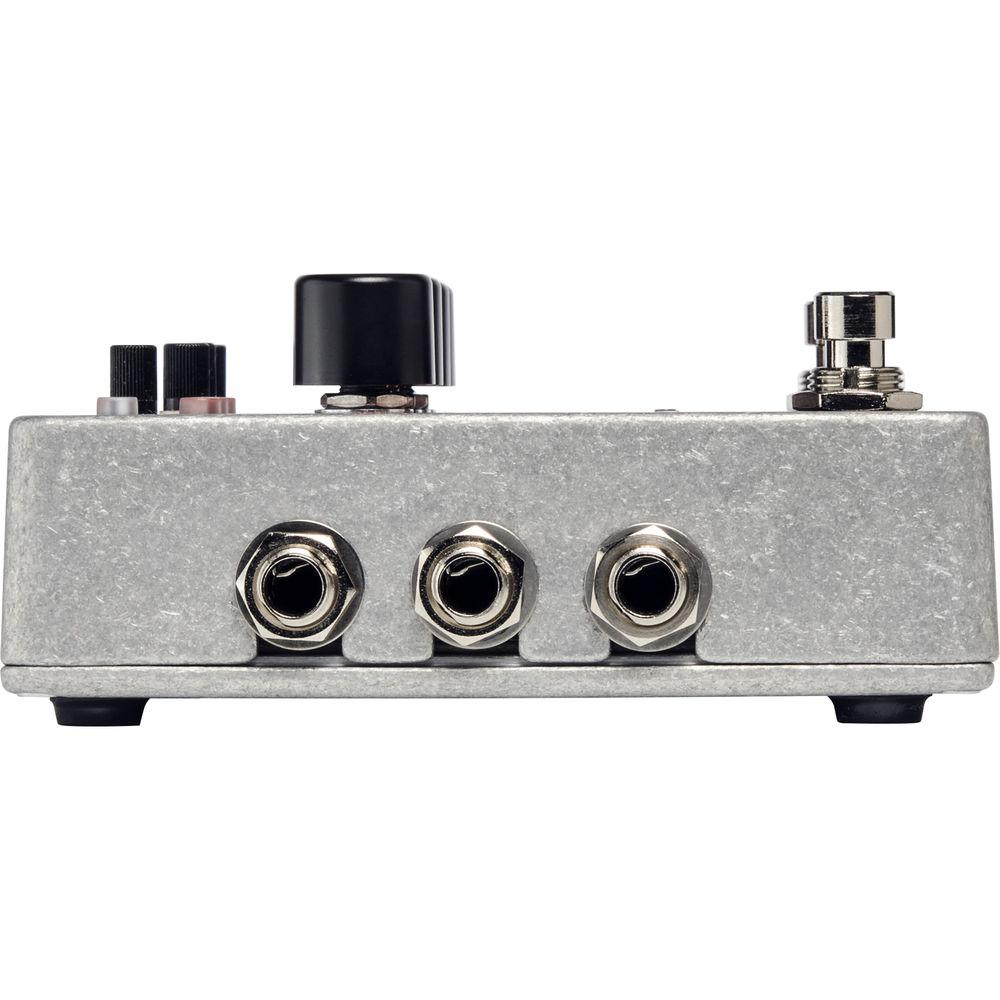

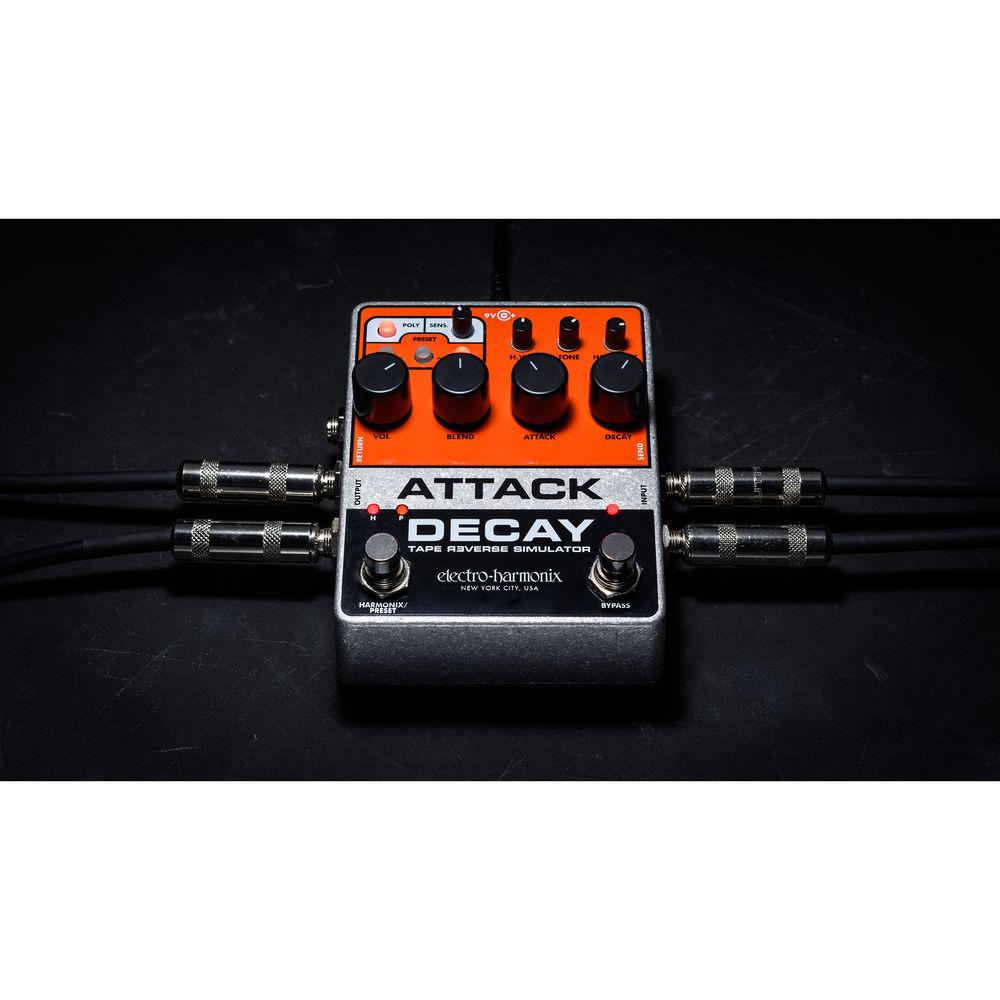

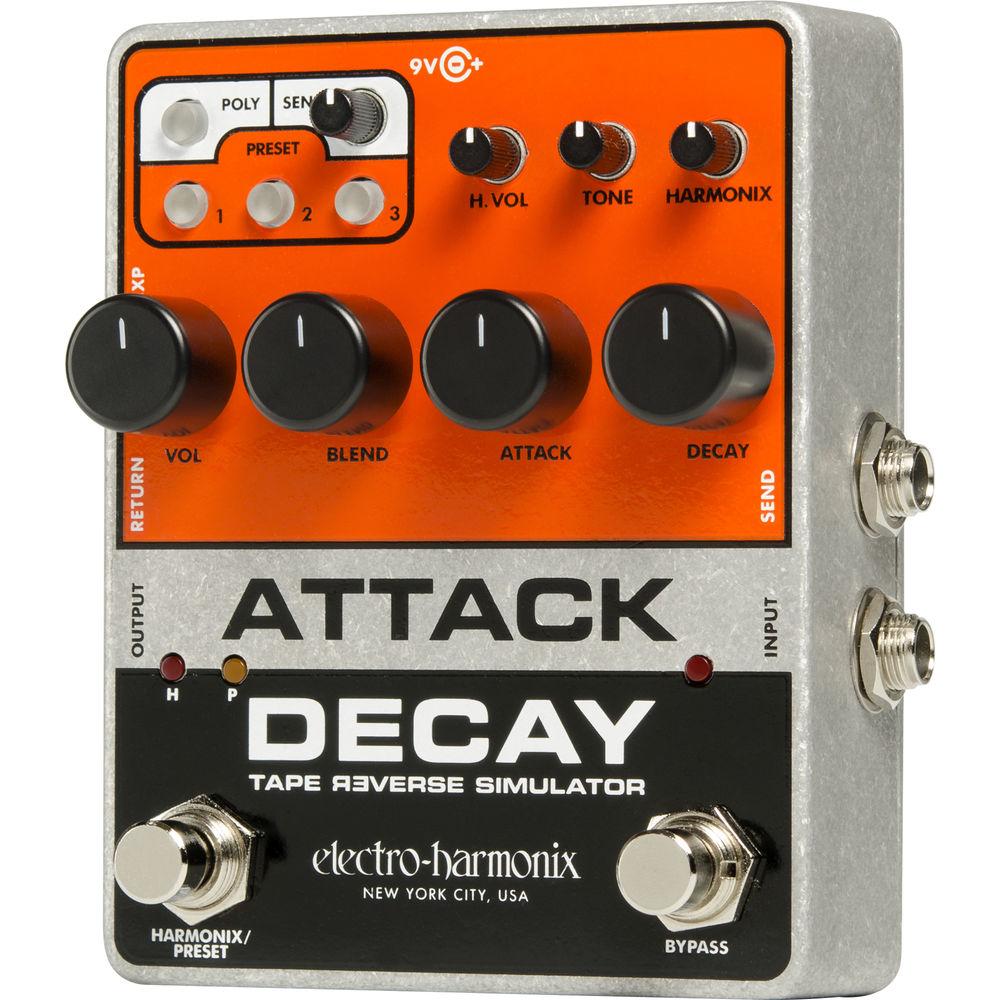

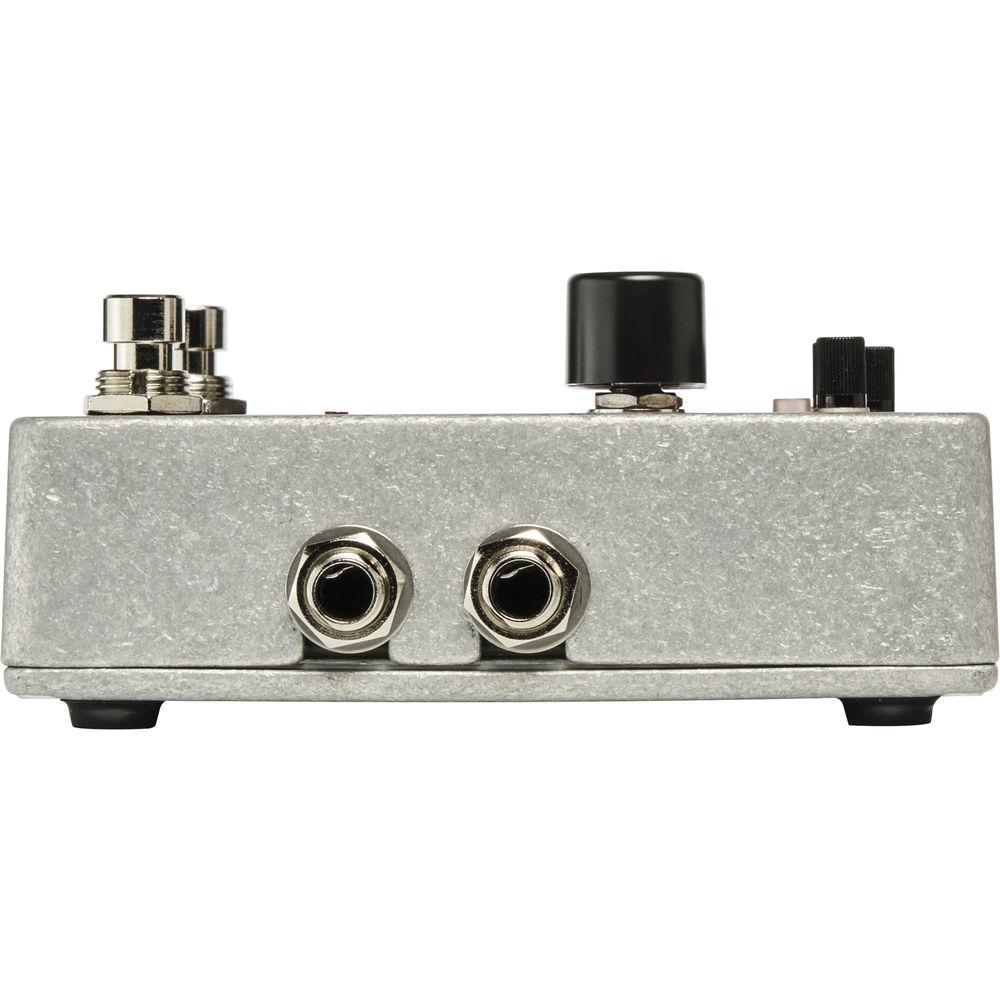

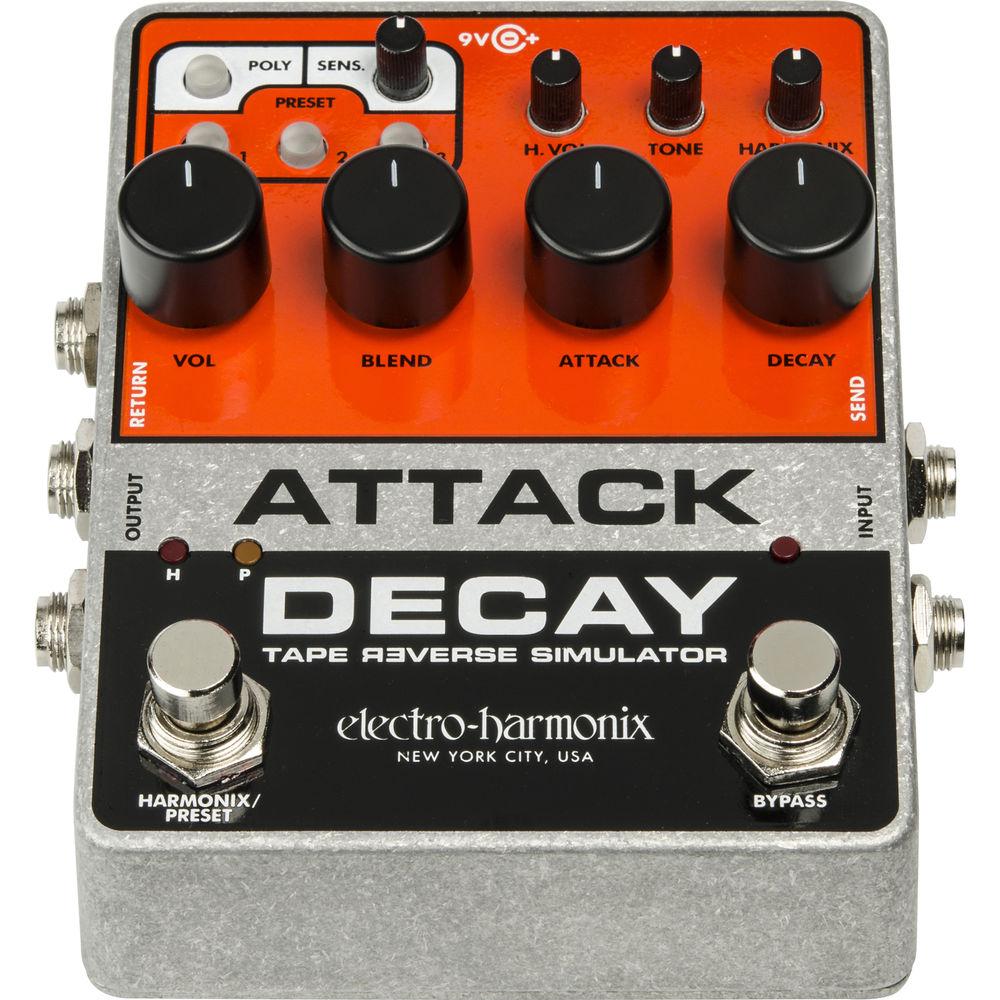

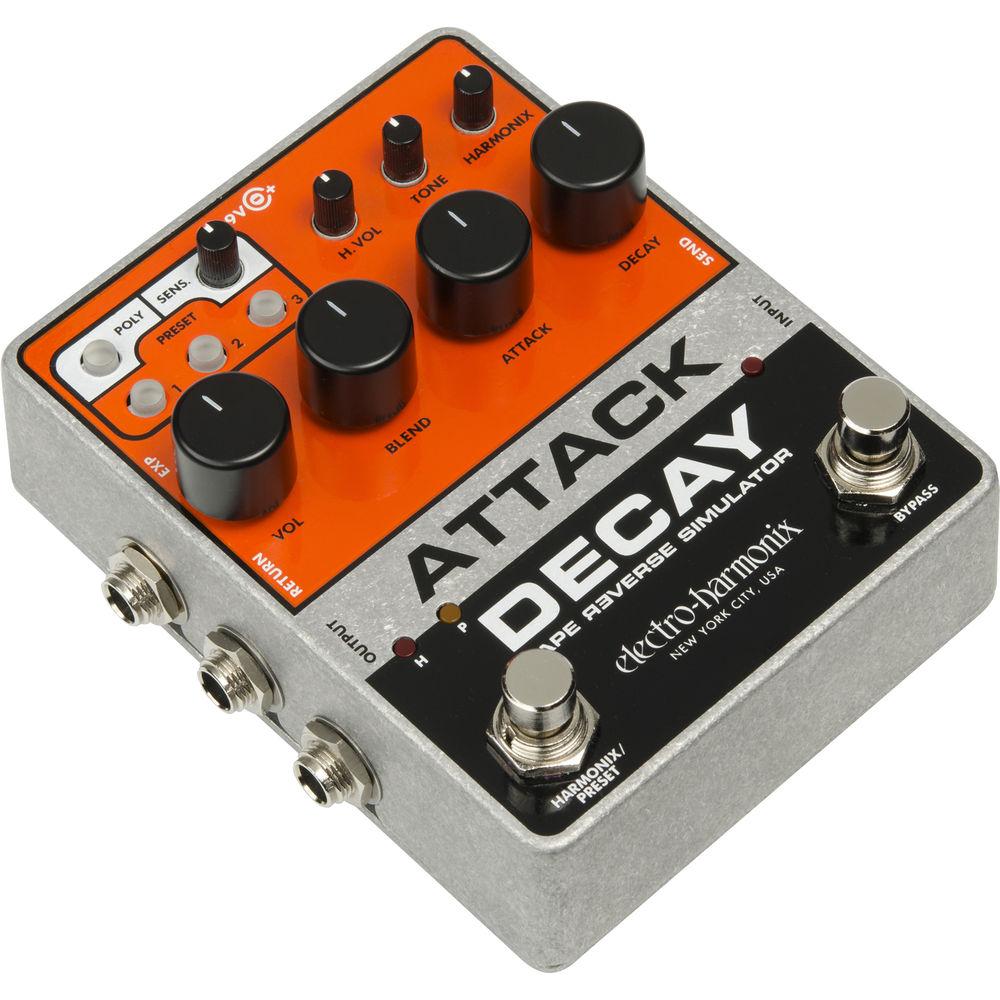

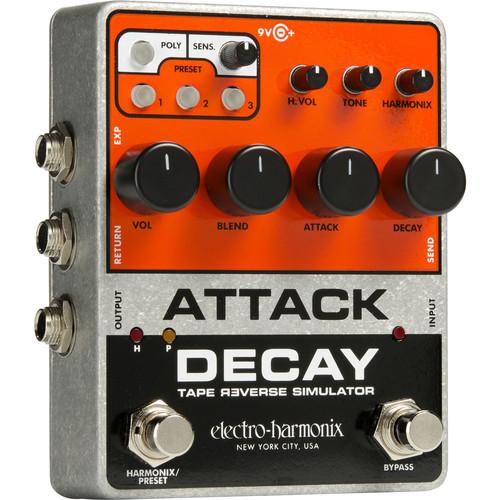

User Manual for Electro-Harmonix Attack Decay Tape Reverse Simulator Pedal for Electric Guitar Click to enlarge the picture
Contents of the user manual for the Electro-Harmonix Attack Decay Tape Reverse Simulator
- Product category: Effects Pedals Electro-Harmonix
- Brand: Electro-Harmonix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Harmonix Effects Pedals
 |
User manual for the Electro-Harmonix Attack Decay Tape Reverse Simulator contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Harmonix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Harmonix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Harmonix product will considerably shorten its lifespan!
|
Product description Designed for electric guitar players, the Electro-Harmonix Attack Decay is a modern take on a classic pedal that the company first issued over 35 years ago. The original pedal provided a simulated reverse tape effect, useful for producing volume swells, bowed instrument timbres, and other esoteric effects. It also offered a fuzz distortion built right into the pedal.
This current iteration of the Attack Decay sports some new features to expand its flexibility. The Harmonix Fuzz is now a dedicated section with its own gain, tone, and volume knobs. With a built-in effects loop, you can put your favorite pedals into the Attack Decay's signal path. As with the original pedal, you can produce a single volume envelope, but now you have the ability to create separate dedicated volume envelopes on every note you play. This feature is made possible via the Poly button.
The Attack Decay sports three preset slots for your favorite settings and an expression/CV input to allow you to manipulate any parameter of the pedal from an external controller. The pedal ships with a power supply. - Key Features at a Glance
-
- Volume envelope manipulation with adjustable attack and decay times
- Mono Mode offers one volume envelope at a time; the envelope resets when you play a new note
- Poly Mode gives each note you play its own envelope
- Built-in, fully adjustable Harmonix fuzz enhances the volume envelope effect and produces bowed instrument sounds
- Built-in effects loop lets you insert your own pedals into the volume envelope
- Expression pedal or CV control over every knob on the Attack Decay
- Save and recall up to three presets
UPC: 683274011851 In the Box Electro-Harmonix Attack Decay Tape Reverse Simulator Pedal for Electric Guitar EHX 9.6VDC-200mA Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Harmonix Attack Decay Tape Reverse Simulator Pedal for Electric Guitar in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Harmonix ATTACK DECAY Specs | Audio I/O | 1 x 1/4" Instrument Input, Phone Type
1 x 1/4" Return Input, Phone Type
1 x 1/4" Expression/CV Input, Phone Type
1 x 1/4" Send Output, Phone Type
1 x 1/4" Instrument Output, Phone Type | | Controls | Volume Knob
Blend Knob
Attack Knob
Decay Knob
H. Vol Knob
Tone Knob
Harmonix Knob
Sens Knob
Preset Button (x3)
Poly Button
Harmonix/Preset Footswitch
Bypass/Engage Footswitch | | Current Draw | 150 mA at 9 VDC | | Dimensions (W x L x H) | 4.0 x 4.75 x 2.25" / 102.0 x 121.0 x 58.0 mm | | Weight | Not Specified by Manufacturer | | | | Package Weight | 1.63 lb | | Box Dimensions (LxWxH) | 7.3 x 6.2 x 3.1" |
