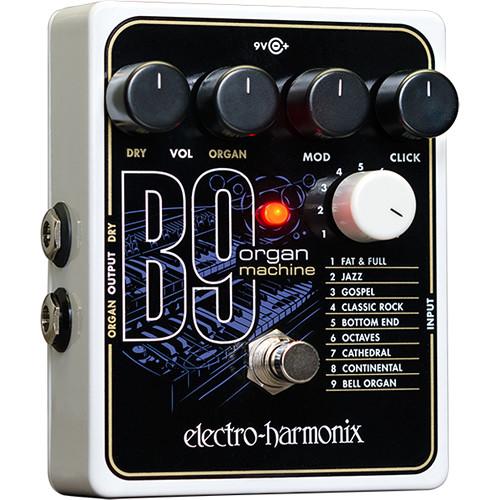

User Manual for Electro-Harmonix B9 Organ Machine Pedal Click to enlarge the picture
Contents of the user manual for the Electro-Harmonix B9 Organ Machine Pedal
- Product category: Effects Pedals Electro-Harmonix
- Brand: Electro-Harmonix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Harmonix Effects Pedals
|
User manual for the Electro-Harmonix B9 Organ Machine Pedal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Harmonix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Harmonix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Harmonix product will considerably shorten its lifespan!
|
Product description The B9 Organ Machine Pedal from Electro-Harmonix transforms the tone of a guitar and/or keyboard into that of a full body electric organ. The nine presets are tuned to emulate some of the most popular and classic electric organ tones. The B9 provides control over percussive attack level, modulation speed, and organ and dry volume. The tracking on the B9 can keep up with quick musical passages.
It is recommended to place the B9 first in an effects chain. Modulation, delay and reverb effects should be placed after the B9. The unit will not perform well if placed in the effects loop of a guitar amplifier. It performs best using the bridge pickup of a guitar. If a guitar's pickup has a weak output, performance can be improved by putting a clean boost or a compressor in front of the B9. It is not advised to place a distortion or overdrive in front of the B9. This will muddy up the input signal and cause the tracking to be unstable. If overdrive or distortion is desired, it is best to place it after the B9.
A compressor in front or after the B9 can help smooth out uneven peaky frequency response that may cause some sounds to be over-accentuated in some guitar amplifiers. The B9 was designed to be used with a guitar and can be used with a bass guitar. The organ sound will not be heard above the 23rd fret. Below the C note, third fret on the A string, performance is compromised. - Nine presets emulate electric organ tones
- Fat & Full, Jazz, Gospel, Classic Rock, Bottom End, Octaves, Cathedral, Continental, and Bell Organ presets
- Use together with C9 for dual keyboard possibilities
UPC: 683274011547 In the Box Electro-Harmonix B9 Organ Machine Pedal 9.6DC-200BI Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Harmonix B9 Organ Machine Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Harmonix B9 Specs | Presets | Fat & Full, Jazz, Gospel, Classic Rock, Bottom End, Octaves, Cathedral, Continental, and Bell Organ | | Controls and Indicators | 1 x Knob: Dry volume
1 x Knob: Organ volume
1 x Knob: MOD
1 x Knob: Click
1 x Knob: Preset
1 x Footswitch: Bypass
1 x LED: Status | | Connectors | 1/4" phone jack, input
1/4" phone jack, dry output
1/4" phone jack, organ output
DC power jack, power input | | Impedance | Input: 1 MΩ
Output: 500Ω | | Current Draw | 100 mA | | Bypass | Buffered | | Compliance | FCC | | Dimensions | 4.00 x 4.75 x 2.25" (10.2 x 12.1 x 5.7 cm) | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 7.2 x 6.1 x 2.8" |
