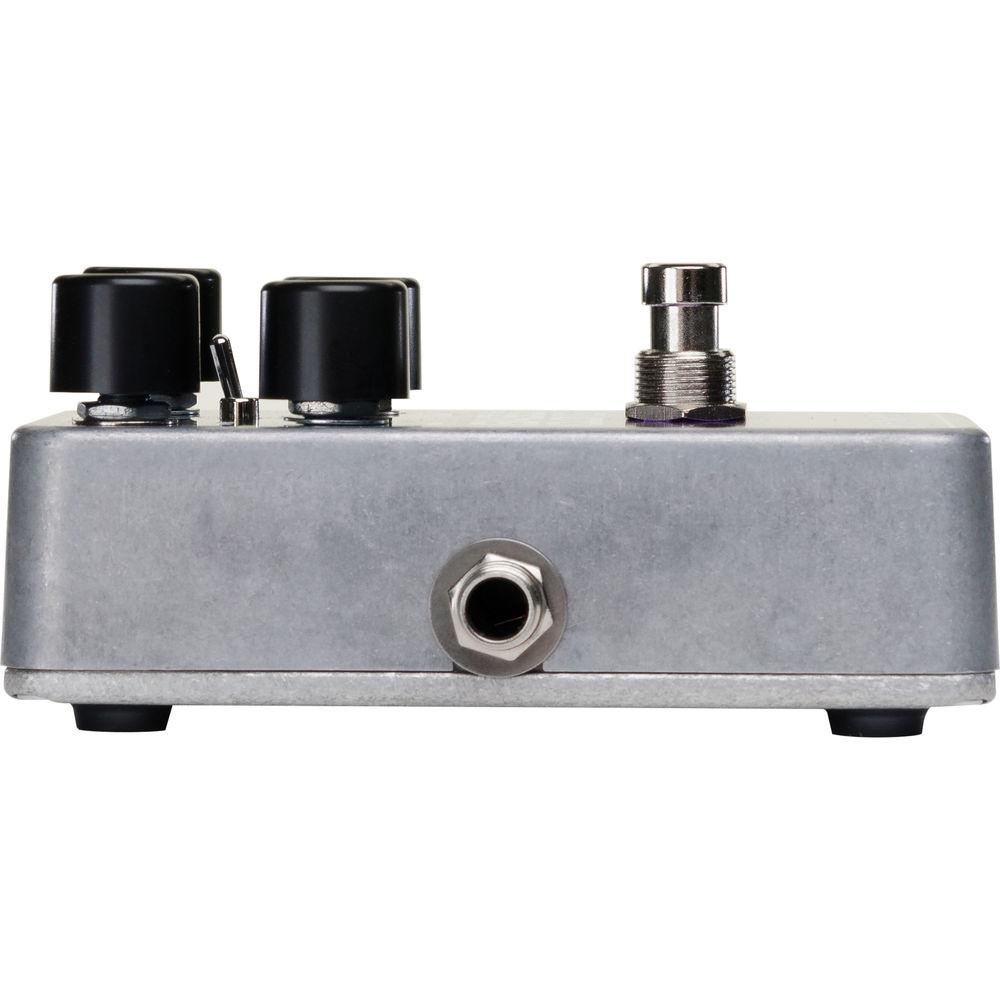

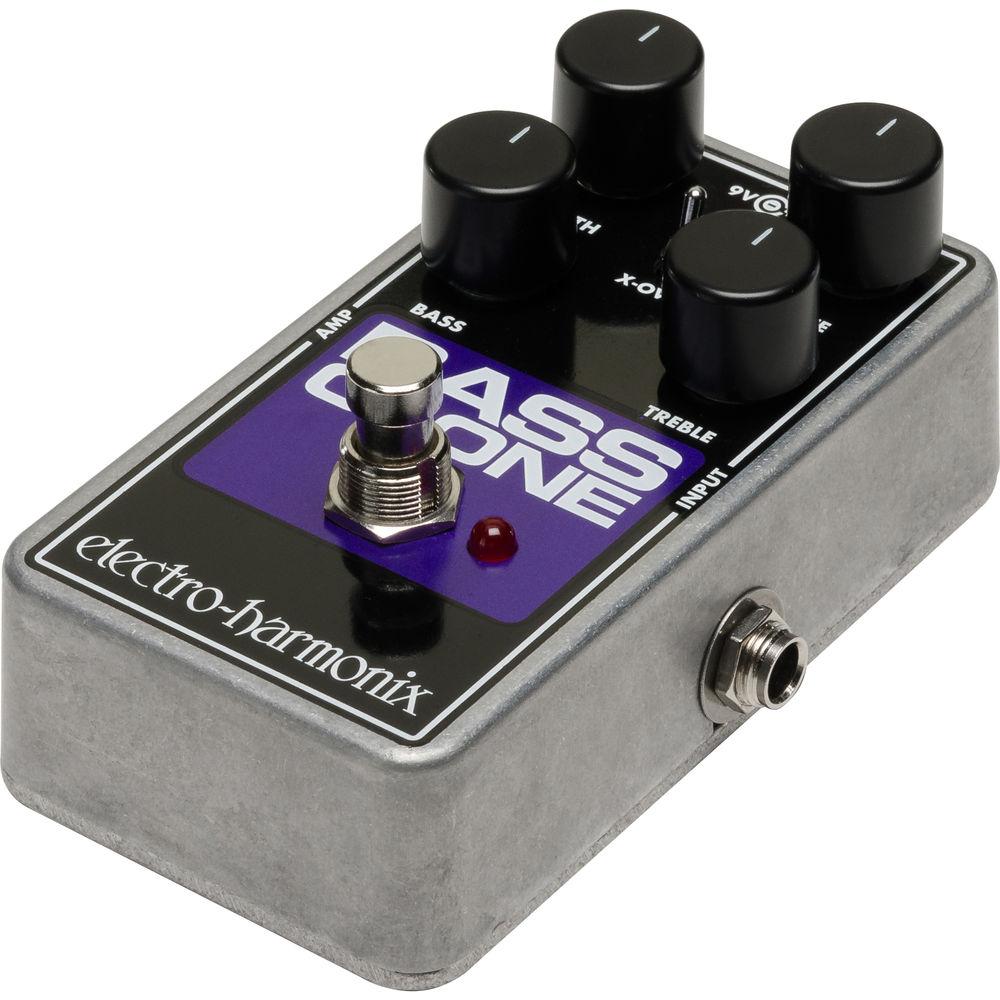

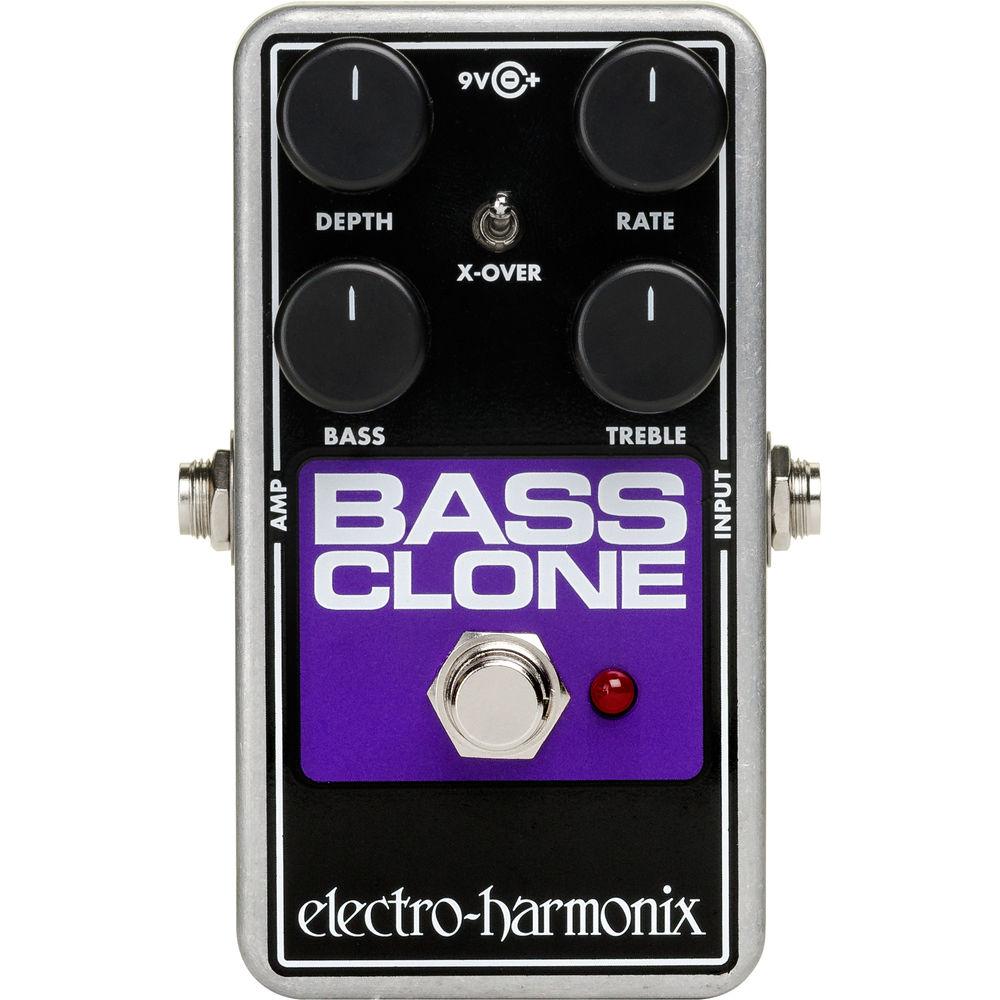

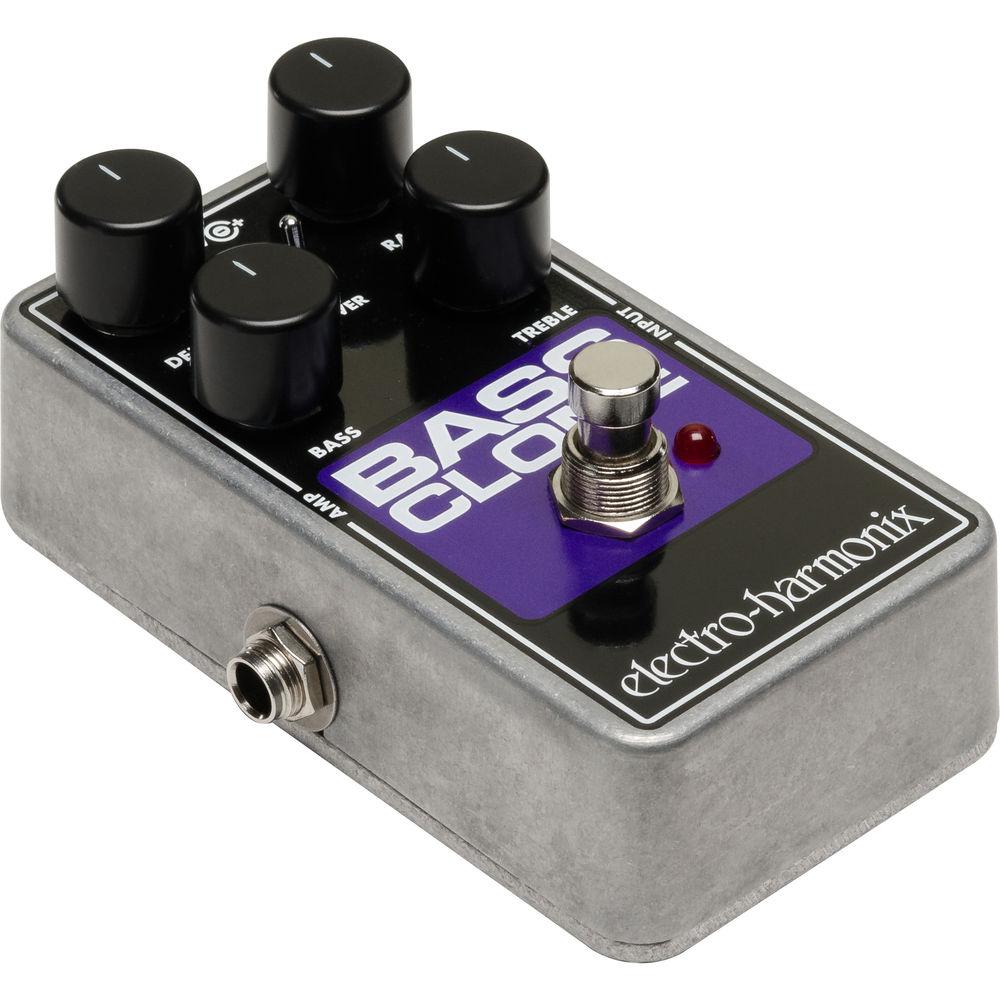

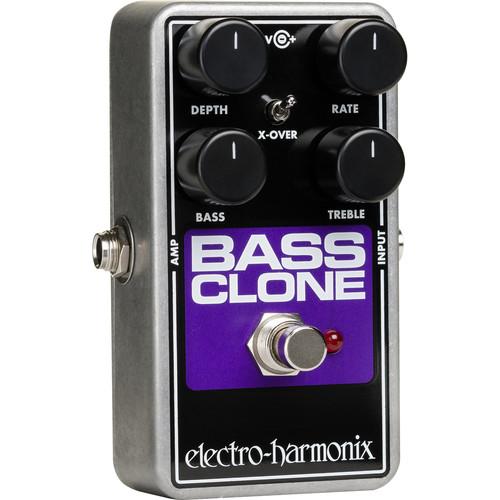

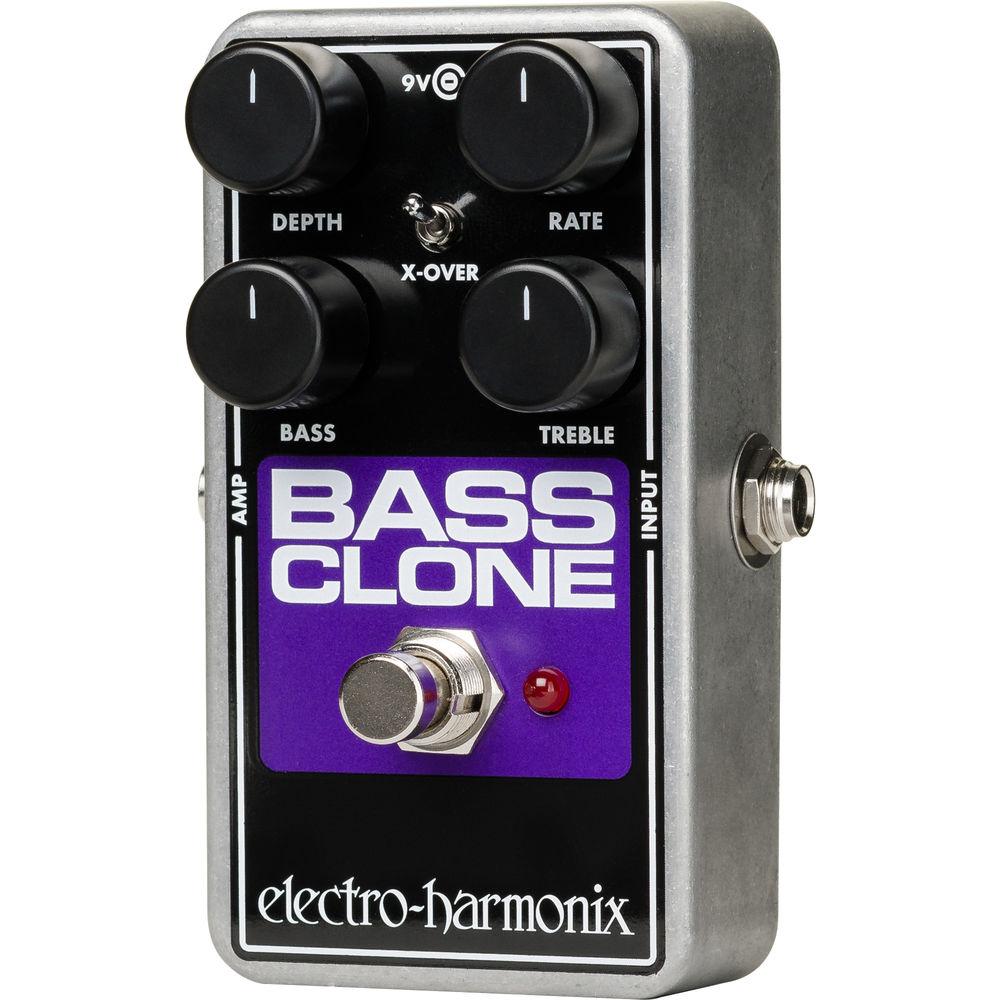

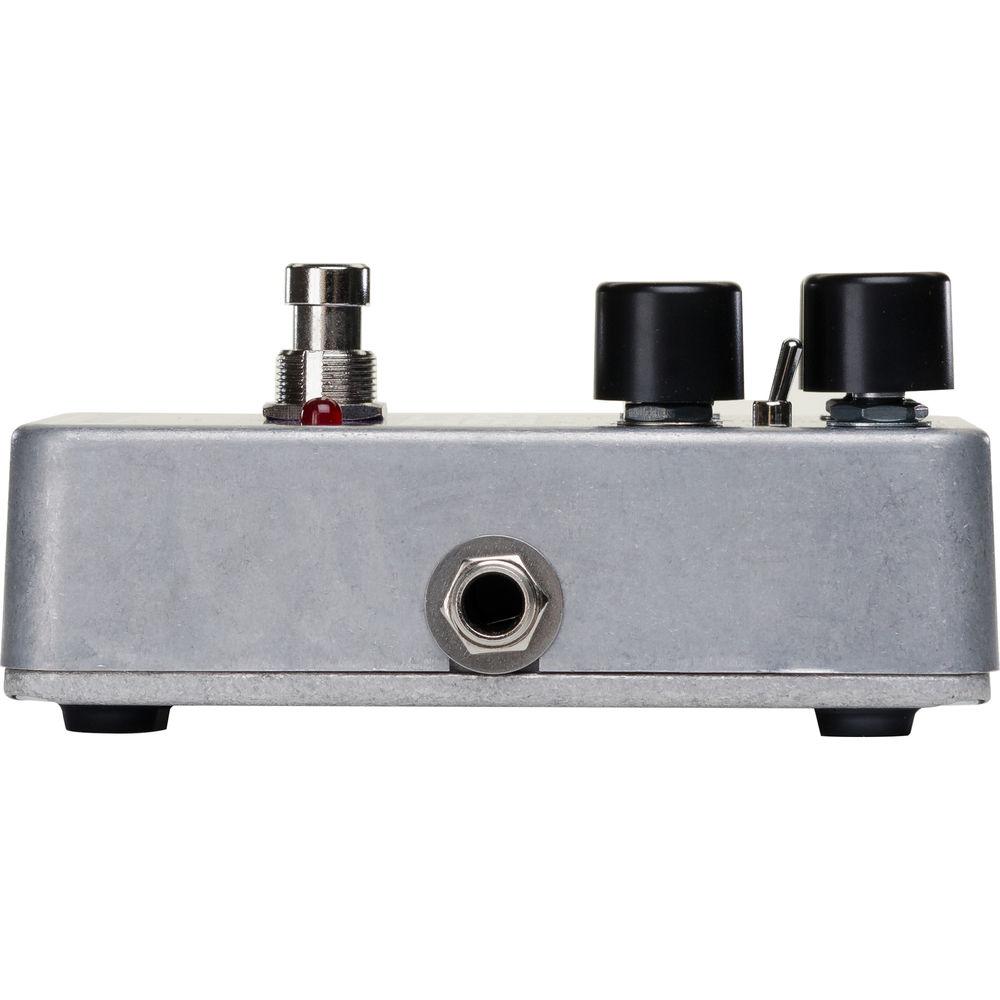

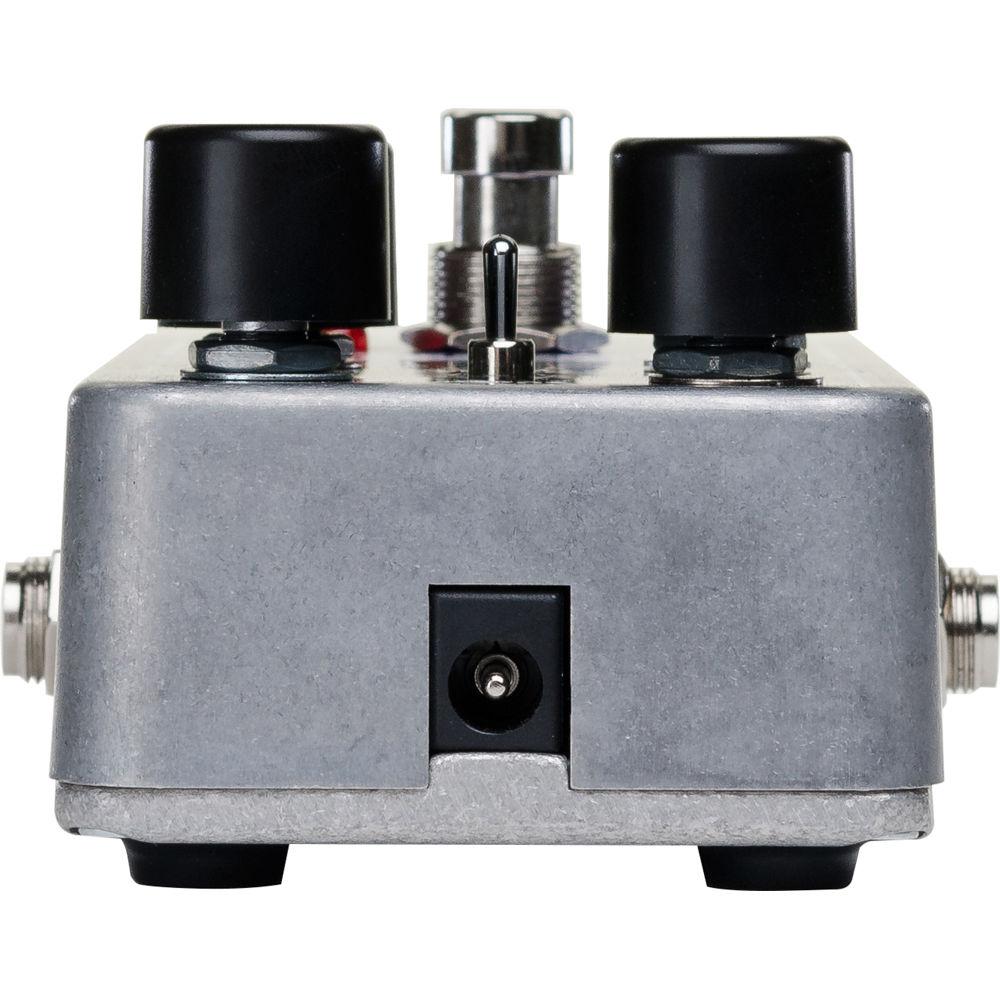

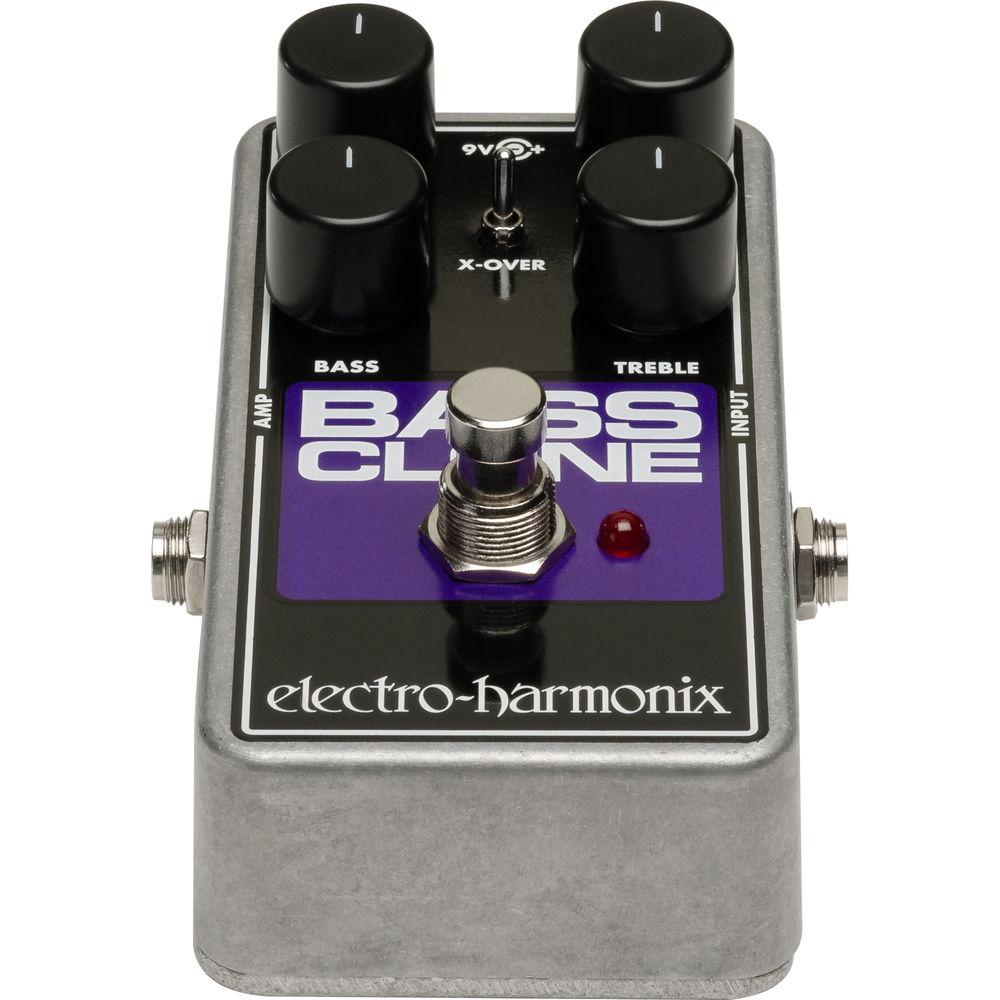

User Manual for Electro-Harmonix Bass Clone Analog Chorus Pedal Click to enlarge the picture
Contents of the user manual for the Electro-Harmonix Bass Clone Analog Chorus Pedal
- Product category: Effects Pedals Electro-Harmonix
- Brand: Electro-Harmonix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Harmonix Effects Pedals
 |
User manual for the Electro-Harmonix Bass Clone Analog Chorus Pedal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Harmonix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Harmonix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Harmonix product will considerably shorten its lifespan!
|
Product description With a circuit design similar to that of the renowned Small Clone, the Bass Clone from Electro-Harmonix is a compact chorus pedal with added features intended for use with electric bass, such as a greater range of modulation and EQ controls to fine tune your sound. The Bass Clone can add a variety of modulation effects to the tone of your bass guitar, allowing you to imbue the high end of your signal with a slow, shallow, and shimmering chorus, or alternatively, providing the means to mangle the entirety of your bass timbre into bumblebee madness. Controls are not only provided for modulation depth and rate, but for bass, treble, and crossover as well, allowing you to sculpt your sound to a precise degree. At all times, the pedal blends your dry signal with the effect-enhanced signal. However, the bass knob will only affect the dry portion of the signal, while the treble knob will control the high-end frequency content of the entire signal path. The crossover switch cuts low end from the modulated signal to facilitate a tighter and more focused sound. In addition, true bypass circuitry ensures that in bypass mode, your signal is truly unaffected. The Bass Clone is a mono effect pedal with one 1/4” instrument input and one 1/4" instrument output. It runs on the included 9V battery, though it will also work with the separately available Electro-Harmonix 9.6DC-200BI power supply. - Controls at a Glance
- DEPTH Knob: Controls the amount of modulationRATE Knob: Controls the modulation’s speedBASS Knob: Allows you to boost or cut low end from the dry half of the effect signal; at the 12 o’clock position, there is no attenuation or boosting at allTREBLE Knob: Provides high-end boost or cut on mixed effect signal; at the 12 o’clock position, there is no attenuation or boosting at allX-OVER Switch: Attenuates low end from the modulated part of the signal when the switch is facing upwards
UPC: 683274011844 In the Box Electro-Harmonix Bass Clone Analog Chorus Pedal 9V Battery Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Harmonix Bass Clone Analog Chorus Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Harmonix BASS CLONE Specs | Audio Connections | 1 x 1/4" instrument input, phone type
1 x 1/4" instrument output, phone type | | Controls | DEPTH knob
RATE knob
BASS knob
TREBLE knob
X-OVER switch
Bypass/Engage footswitch | | Impedance | Input: 2.2 MOhms
Output: 1 kOhm | | Bypass Switch | True bypass | | Current Draw | 15 mA | | Voltage | 9.6 VDC | | Power Source | 9 V battery (included)
Electro-Harmonix 9.6 VDC 200 mA power supply (available separately) | | Dimensions (W x L x H) | 2.8 x 4.5 x 2.1" / 7.0 x 11.4 x 5.3 cm | | Weight | Not specified by manufacturer |
