User Manual for Electro-Harmonix Bass Mono Synth Pedal Click to enlarge the picture
Contents of the user manual for the Electro-Harmonix Bass Mono Synth Pedal
- Product category: Effects Pedals Electro-Harmonix
- Brand: Electro-Harmonix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Harmonix Effects Pedals
 |
User manual for the Electro-Harmonix Bass Mono Synth Pedal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Harmonix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Harmonix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Harmonix product will considerably shorten its lifespan!
|
Product description - Electro-Harmonix Bass Mono Synth

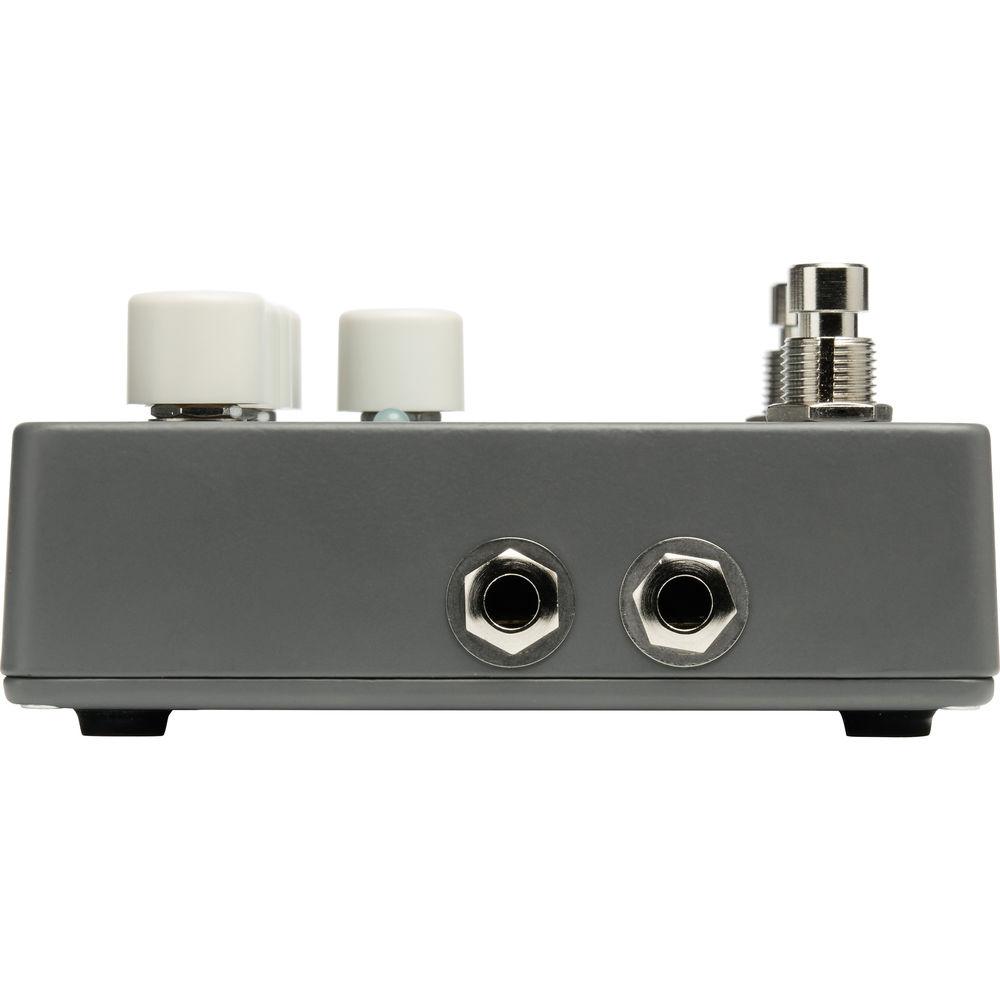

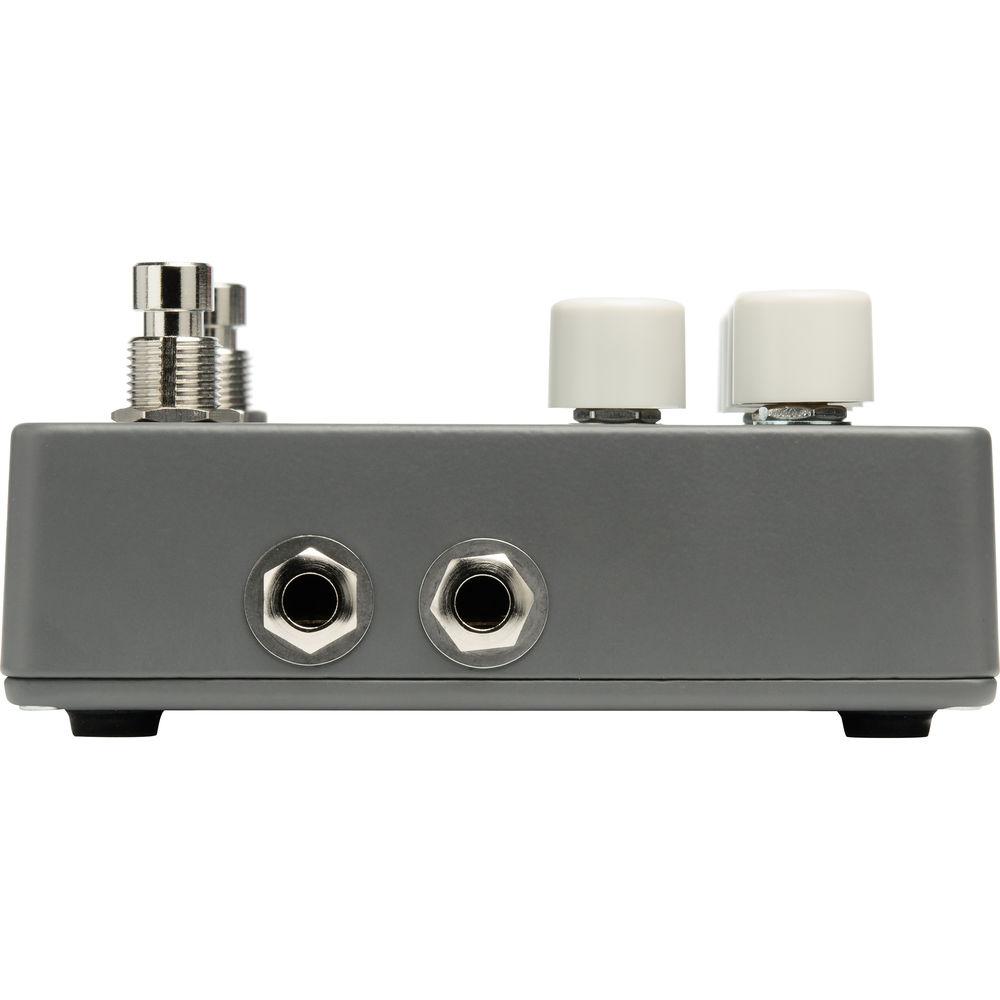

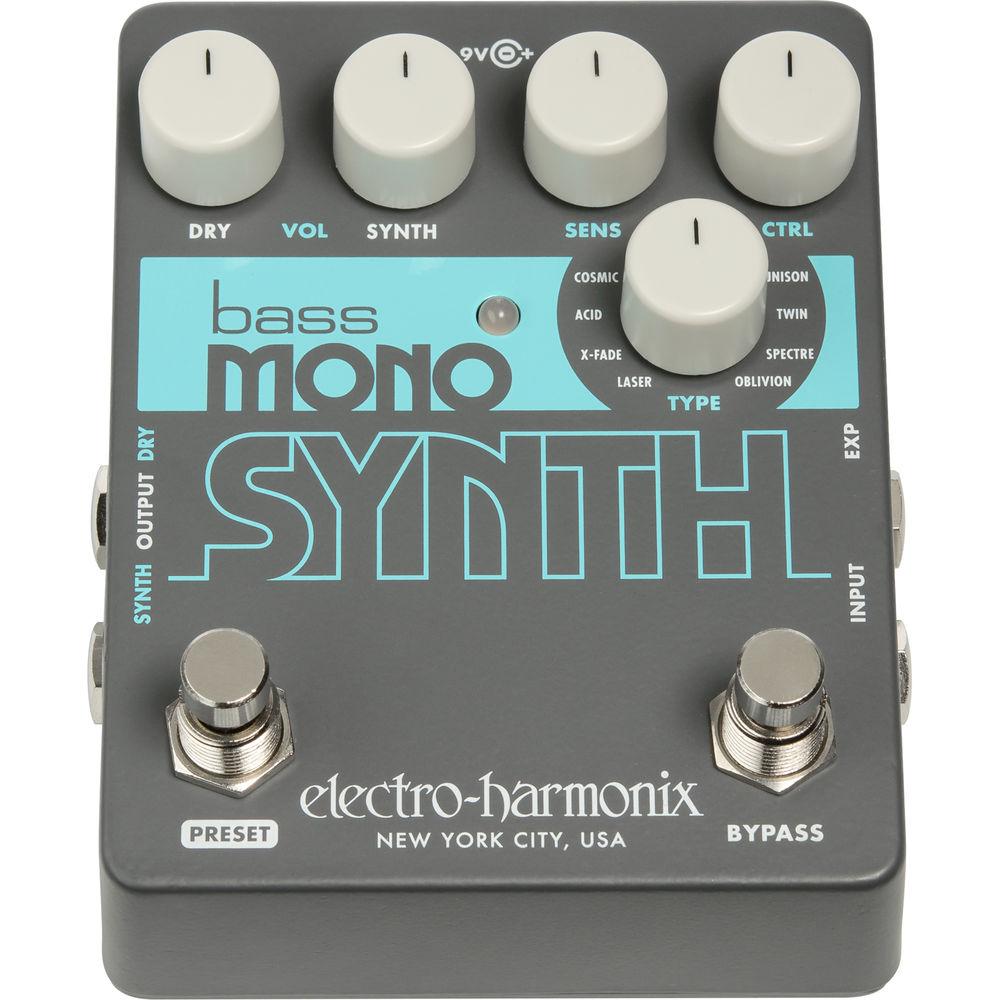

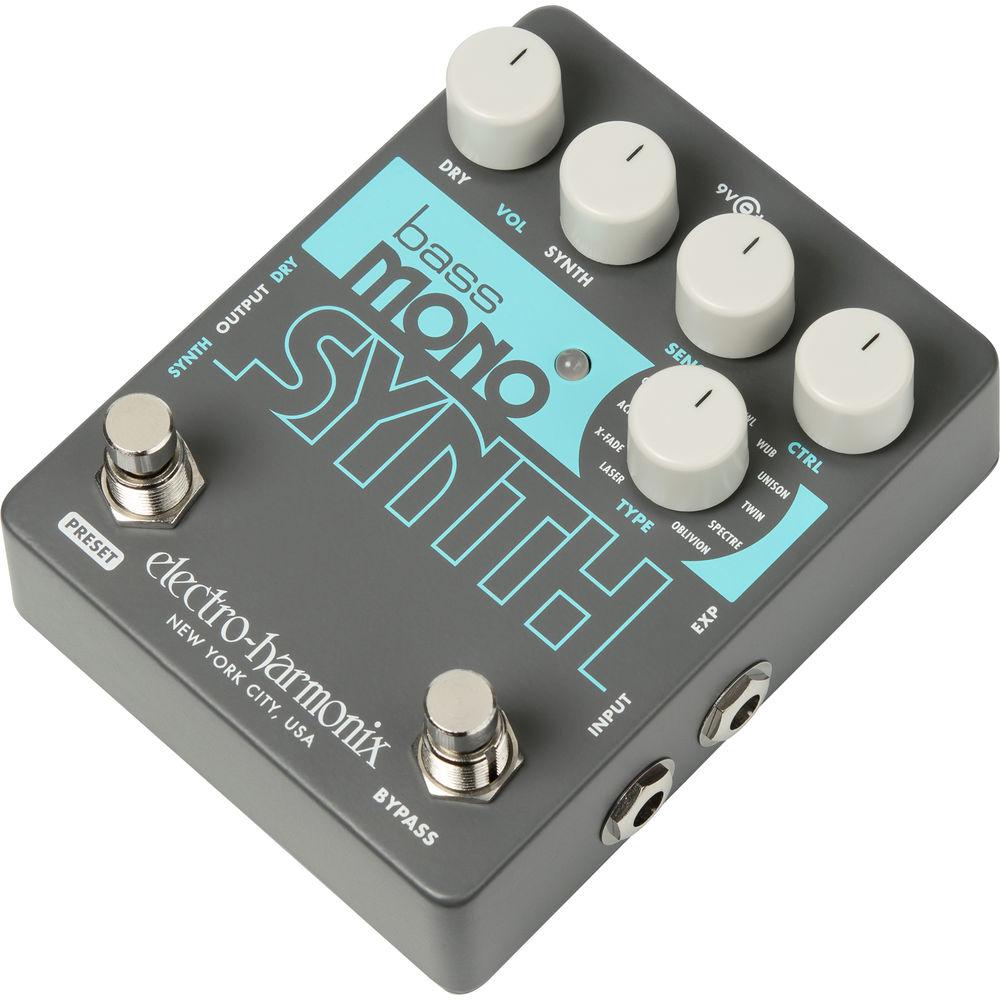

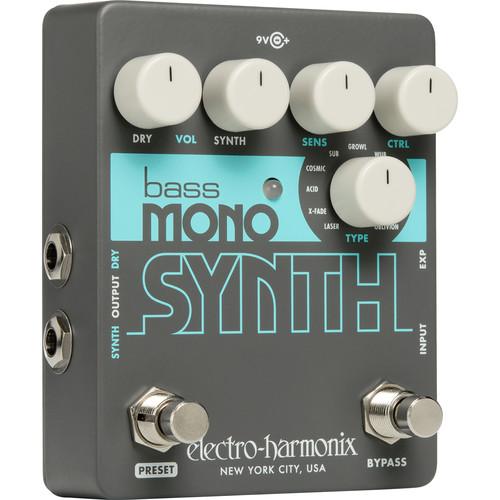

Designed for bass players who want to engage a realistic synth tone in their rig, the Electro-Harmonix Bass Mono Synth is a stompbox pedal with eleven selectable synth types, each with a different sound. Anything is possible, from the sound of Tom Sawyer to more modern wub-wub-wub dubstep basses. Please note that this is a monophonic pedal; you won't be able to trigger synth chords.Setting up the pedal is relatively straightforward. The DRY knob controls how much of your original signal goes to the output stage, while the SYNTH knob controls the output level of the synth effect. The SENS knob allows your dynamics to change how and when the synth will be triggered. The CTRL's function changes depending on the synth type, and the synth type can be changed via the TYPE knob. The pedal sports one 1/4" instrument input and two 1/4" outputs, one for dry signal, and one for synth. Use the synth output on its own, or route the dry signal to its own input if you'd prefer. Hook your favorite, compatible TRS expression pedal into the EXP jack and you'll be able to control other parameters of the pedal. These parameters, like those of the CTRL knob, change depending on the synth you've got loaded up. The pedal sports eleven different preset slots, so you can save your favorite settings into each position of the TYPE knob. A power supply is included with the Bass Mono Synth. - Controls Explained
- DRY VOL Knob: This controls the volume of the untreated bass signal present at the synth output jack.SYNTH VOL Knob: This controls the overall volume of the synthesizer sound at the SYNTH OUTPUT jack.SENS Knob: This control adjusts the gain of the input signal before it hits the Bass Mono Synth’s trigger block, which is responsible for generating synth notes that match the pitch of your instrument. The trigger block also resets all envelope sweeps. It only triggers new notes when the input signal exceeds its threshold. Set to lower levels, this control will require louder notes to trigger the synthesizer. At higher values, the SENS knob might trigger new synth notes with every note you play. Use the LED as an aid when adjusting the SENS knob. For some synth types, SENS also adjusts the sweep range of the filter’s envelope. Higher settings of SENS yield wider filter sweeps and typically more level. CTRL Knob: This can be used to control a specific parameter, and this parameter changes with each Synth Type.BYPASS Footswitch: Press this footswitch to toggle the synth output jack between buffered bypass and effect modes. The status LED lights when you are in effect mode. PRESET Footswitch: Use this footswitch to toggle between Preset mode and the current settings shown by the knobs. The PRESET Footswitch is also used to save a preset to the current synth type, one set by the TYPE knob.
- Synth Types Offered
- LASER: A deep, pulsating synth with a bit of buzzX-FADE: A multi-VCO synth with some dry signal added to the filter sweep and a distorted, octavized soundACID: A fast decaying synth reminiscent of the TB-303, sharp and needling in toneCOSMIC: A bright and aggressive synth with subtle pitch modulationSUB: A round sub-octave synth for adding low endGROWL: A percussive, punchy synth with a round tone WUB: A pulsating synth with a modulating filter, great for dubstep-style EDMUNISON: The huge sound of stacking voices on a polyphonic synthTWIN: A throaty synth sound with a formant-like filterSPECTRE: A multi-VCO synth with an added adjustable pitched noteOBLIVION: A big, lush, warm synth tone with a warbling modulation effect and a high-end sizzle
UPC: 683274012148 In the Box Electro-Harmonix Bass Mono Synth Pedal EHX 9.6DC-200BI Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Harmonix Bass Mono Synth Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Harmonix Bass Mono Synth Specs | Audio I/O | 1 x 1/4" Instrument Input
1 x 1/4" TRS Expression Input
1 x 1/4" Synth Output
1 x 1/4" Dry Output | | Controls | DRY VOL Knob
SYNTH VOL Knob
SENS Knob
CTRL Knob
Preset Footswitch
Bypass/Engage Footswitch | | Current Draw | 12 5mA at 9 VDC | | Dimensions (W x L x H) | 4.0 x 4.8 x 2.3" / 102.0 x 121.0 x 58.0 mm | | | | Package Weight | 1.54 lb | | Box Dimensions (LxWxH) | 7.3 x 6.15 x 3.25" |
