User Manual for Electro-Harmonix Bass Preacher Compressor Sustainer Pedal Click to enlarge the picture
Contents of the user manual for the Electro-Harmonix Bass Preacher Compressor Sustainer Pedal
- Product category: Effects Pedals Electro-Harmonix
- Brand: Electro-Harmonix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Harmonix Effects Pedals
|
User manual for the Electro-Harmonix Bass Preacher Compressor Sustainer Pedal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Harmonix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Harmonix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Harmonix product will considerably shorten its lifespan!
|

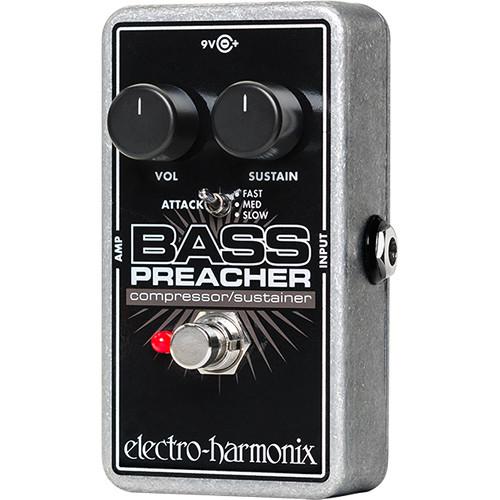

Product description Designed primarily for electric bass, the Bass Preacher from Electro-Harmonix is a compressor/sustainer in a compact form factor, the pedal measuring 2.8 x 4.5 x 2.1”. It’s designed to facilitate anything from subtle shaping to extreme adjustments in the dynamic range of your bass playing. The level of compression or sustain is achieved mainly with two parameters: The Sustain knob and the Attack switch. The Sustain knob dictates the amount of compression you’d like to apply to your sound, while the Attack switch adjusts the attack/release settings, allowing more of your transients to come through for a plucky sound, or squashing your notes more quickly for a flatter, denser timbre. You’ll find fast, medium, and slow attack settings. Whatever amount of gain reduction you achieve, you can use the Vol knob to adjust the amount of makeup gain to reach a desirable level.This pedal provides an input sensitivity range from -10 to +2 dBu, which makes the Bass Preacher suitable for use with active and passive basses alike. It also works well for guitar, providing a more subtle and transparent effect than typical guitar compressor pedals offer. With up to 21 dB of gain reduction, you’ll have more than enough room to achieve the compression you desire. True bypass circuitry ensures that in bypass mode, your signal is truly unprocessed.This is a mono pedal, with one 1/4” instrument input and one 1/4" instrument output. It runs on the included 9V battery, though it will also work with the separately available Electro-Harmonix 9.6 VDC 200mA power supply. - Controls at a Glance
- SUSTAIN Knob: This control sets the amount of compression
VOL Knob: Use this control to adjust the amount of makeup gain
ATTACK Switch: This sets the timing of the attack/decay curve UPC: 683274011820 In the Box Electro-Harmonix Bass Preacher Compressor/Sustainer Pedal 9V Battery Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Harmonix Bass Preacher Compressor Sustainer Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Harmonix BASS PREACHER Specs | Audio Connections | 1 x 1/4" instrument input, phone type
1 x 1/4" instrument output, phone type | | Controls | VOL knob
SUSTAIN knob
ATTACK switch
Bypass/Engage footswitch | | Impedance | Input: 450 kOhms
Output: 150 Ohms to 2.8 kOhms | | Input Sensitivity | -10 to +2 dBu | | Gain Reduction | 21 dB maximum | | Bypass Switch | True bypass | | Current Draw | 33 mA at 9.6 VDC | | Power Source | 9 V battery (included)
Electro-Harmonix 9.6 VDC 200 mA power supply (available separately) | | Dimensions (W x L x H) | 2.8 x 4.5 x 2.1" / 7.0 x 11.4 x 5.3 cm | | Weight | Not specified by manufacturer |
