User Manual for Electro-Harmonix Battalion Bass Preamp and DI Pedal Click to enlarge the picture
Contents of the user manual for the Electro-Harmonix Battalion Bass Preamp and DI
- Product category: Effects Pedals Electro-Harmonix
- Brand: Electro-Harmonix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Harmonix Effects Pedals
 |
User manual for the Electro-Harmonix Battalion Bass Preamp and DI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Harmonix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Harmonix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Harmonix product will considerably shorten its lifespan!
|

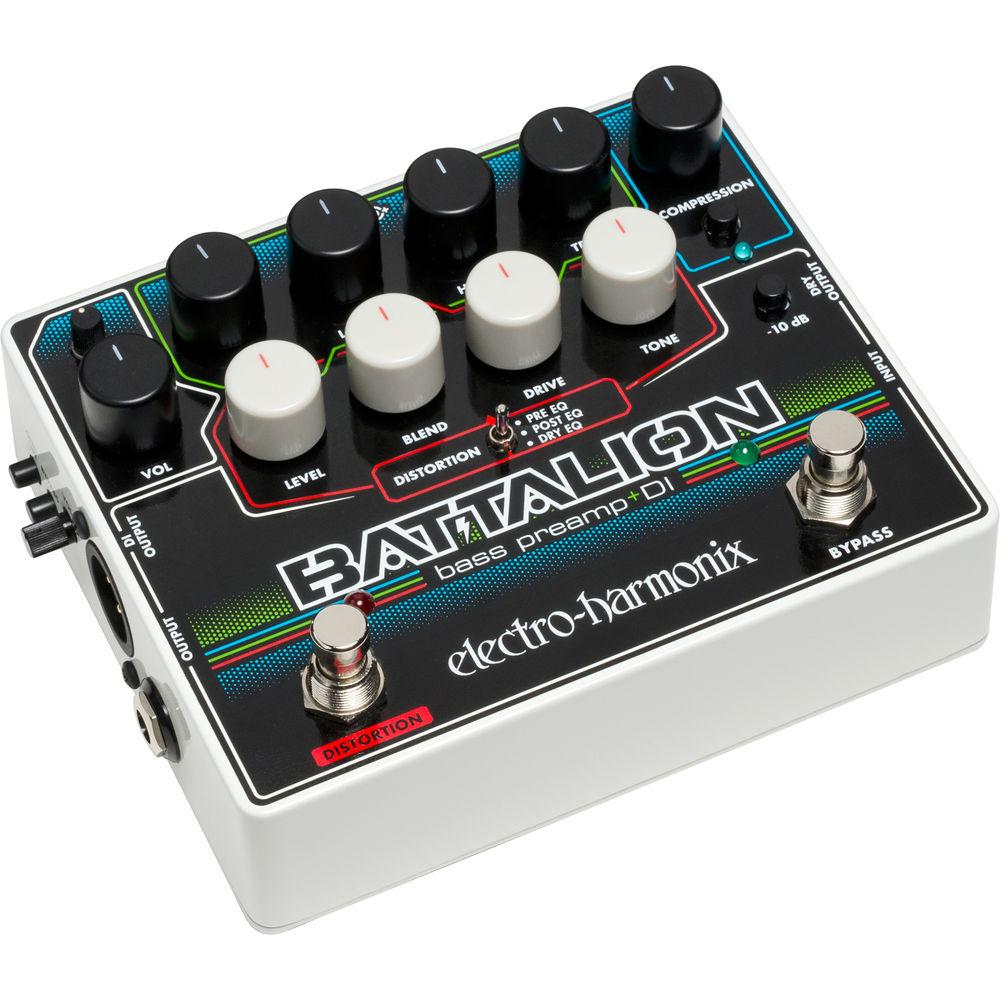

Product description The Battalion from Electro-Harmonix is an all-analog bass preamp and DI pedal designed to deliver the processors and functions most commonly used by bassists in live sound and recording. In addition to the preamp and DI, it offers distortion, equalization, compression, and gating.A selectable 10 dB pad allows you to avoid input clipping, a common concern when using basses with active pickups. The built-in DI box has an XLR output with variable level. The XLR output can follow the bypass status or remain active even when the pedal is bypassed. The EQ has four bands with fixed frequencies. The distortion circuit provides multiple routing options and controls, plus a dedicated on/off footswitch. Separate 1/4” outputs allow simultaneous routing of dry and processed signals. Activate the ground-lift switch to minimize hum from ground loops.The Battalion features true bypass switching. Its LEDs indicate on/off status for compressor, distortion, and bypass functions. Power is supplied via the included 9.6 VDC adapter. -
- Preamp
- 4-band EQ
- Distortion circuit with variable drive, tone, and level
- Mix distortion with dry signal via Blend knob
- Distortion routing option #1: Compressor to distortion to EQ
- Distortion routing option #2: Compressor to EQ to distortion
- Distortion routing option #3: Compressor split to distortion and EQ
- Selectable compressor with adjustable ratio
- Gate with variable threshold
- Built-in DI with XLR output and adjustable output level
- Master output level control
- 10 dB pad
- 1/4" input
- 1/4" output for dry signal
- 1/4" output for processed signal
- True bypass
- LED on/off status indicators for compressor, distortion, and bypass
- Ground-lift switch
- Includes 9.6 VDC power supply
In the Box Electro-Harmonix Battalion Bass Preamp and DI Pedal 9.6 VDC, 200mA Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Harmonix Battalion Bass Preamp and DI Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Harmonix BATTALION Specs | Pedal Type | Bass preamp and DI box | | Inputs | 1 x 1/4" | | Outputs | 2 x 1/4"
1 x XLR | | Bypass | True bypass | | Switches | Bypass
Distortion on/off
Distortion position
Pad (-10 dB)
Compression
Ground lift
XLR bypass | | Controls | EQ: Bass, Lo Mid, Hi Mid, Treble
Distortion: Level, Blend, Drive, Tone
Compression
Gate (threshold)
Volume
XLR Vol | | Impedance | 2.2 MOhms (1/4" input)
220 Ohms (1/4" output) | | Equalizer Center Frequency | Bass: low shelf at 200 Hz
Lo Mid: peak at 280 Hz
Hi Mid: peak at 750 Hz
Treble: high shelf at 2 kHz | | Power Requirements | 9.6 VDC, 200 mA power supply | | Dimensions (W x D x H) | 4.8 x 5.8 x 2.5" / 120.7 x 146.1 x 63.5 mm | | Weight | 1.2 lb / 0.5 kg |
