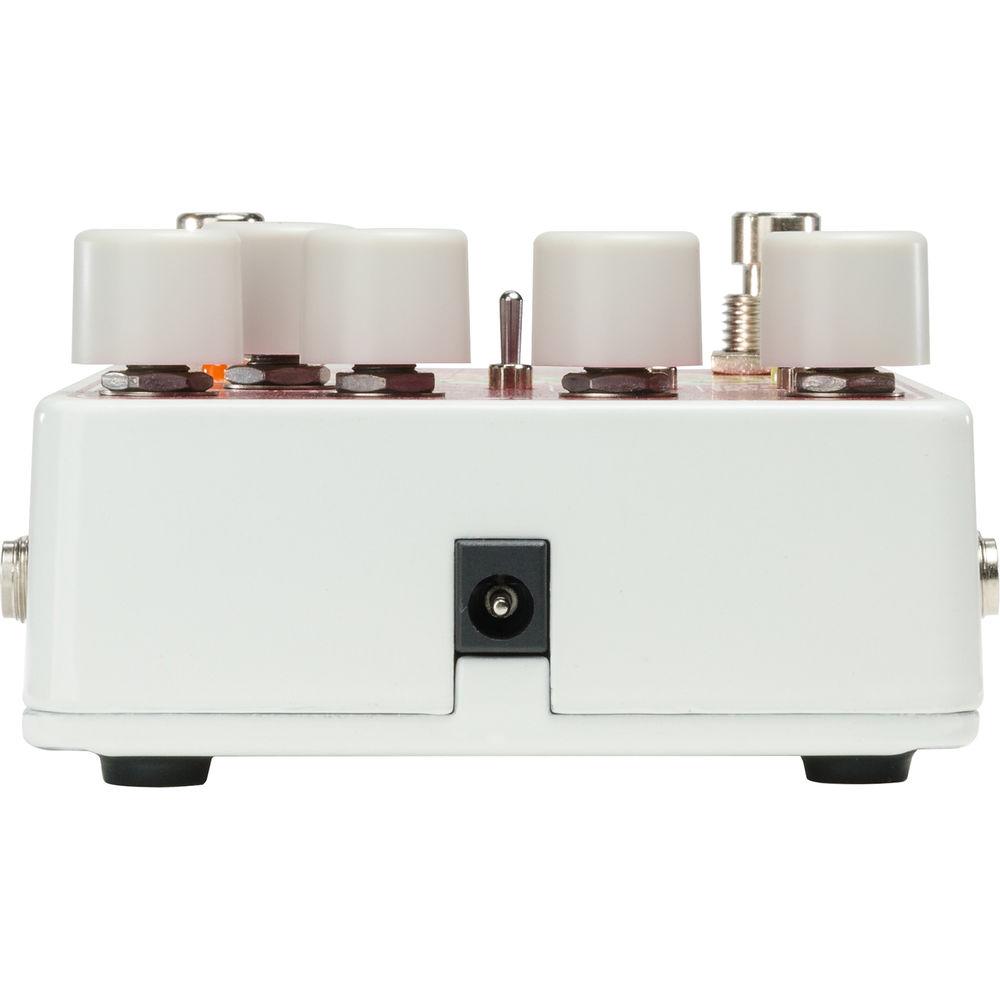

User Manual for Electro-Harmonix Blurst Modulated Filter Pedal for Guitars and Bassists Click to enlarge the picture
Contents of the user manual for the Electro-Harmonix Blurst Modulated Filter Pedal for
- Product category: Effects Pedals Electro-Harmonix
- Brand: Electro-Harmonix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Harmonix Effects Pedals
 |
User manual for the Electro-Harmonix Blurst Modulated Filter Pedal for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Harmonix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Harmonix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Harmonix product will considerably shorten its lifespan!
|

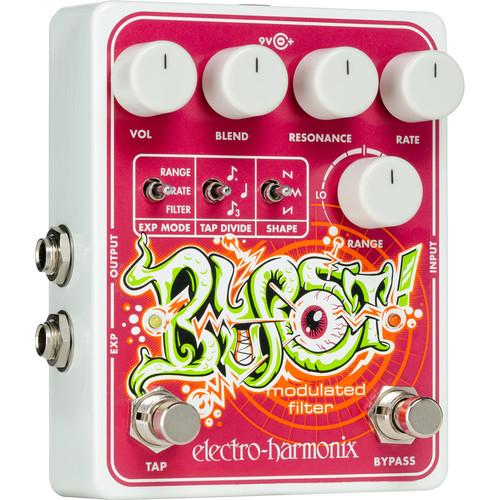

Product description The Electro-Harmonix Blurst is a modulating filter pedal which affords electric guitar players/bassists control parameters more commonly found on modular synthesizers. With this pedal, you can achieve a wide array of strange, esoteric sounds and soundscapes, as well as more common envelope tones, and even timbres similar to that of a phaser. In fact, the pedal functions similarly to an envelope filter, but the filter here isn’t controlled by your playing dynamics; instead, an internal oscillator controls the envelope. A low-pass filter with adjustable resonance is provided, as is a volume control, a blend control (to dial in dry signal), rate and range knobs, and a variety of switches to dictate parameters such as note type and LFO shape. You can also route an expression pedal into the Blurst, using the EXP MODE switch to change which parameter you modulate in a continuous manner with the connected footswitch. In addition to expression control, the pedal can accept CV messages from compatible controllers. A tap tempo switch is also offered to keep your effects in time with the band or sequenced track. The pedal features an all-analog signal path, and utilizes true bypass circuitry to keep your sound pristine and unprocessed when the pedal is disengaged. A power supply is provided to run the unit. - Controls at a Glance
-
- TAP Footswitch: Use this footswitch to tap in a tempo for the LFO.
- VOLUME Knob: This sets the Blurst’s output volume in effect mode.
- BLEND Knob: This controls the mix between dry and wet (filtered) signal.
- RESONANCE Knob: This sets the resonance of the filter; it also affects the volume of the filtered signal.
- RANGE Knob: This knob dictates the frequency range of the filter’s modulation. Maximum range with the knob at 50%. The gets narrower and centers around lower frequencies as you bring the knob from 50% to minimum. Similarly, the range grows narrower and centers around higher frequencies as you bring the knob from 50% to maximum.
- RATE Knob: This knob controls the speed of modulation.
- EXP MODE Switch: This switch determines which parameter any expression pedal might control.
- TAP DIVIDE Switch: This sets the note type based on tapped in quarter notes.
- SHAPE Switch: This selector dictates the waveform shape of the LFO.
- BYPASS Footswitch: Tap this footswitch to toggle between effect on and off. When the effect is off, the pedal is in true bypass mode.
- Key Features at a Glance
-
- Analog low-pass filter with adjustable resonance.
- 3 modulation waveform shapes: Triangle, rising saw-tooth and falling saw-tooth.
- Modulation rate is set by either the rate knob or a combination of the tap footswitch and tap divide toggle switch (offering quarter, dotted eighth, and triplet rhythms).
- Three EXP modes—Range, Rate, and Filter—can be controlled by an expression pedal or a control-voltage source such as EHX's 8-Step Program Analog Expression/CV Sequencer.
- Range knob sets the frequency range of the filter's modulation.
- Blend adjusts the dry/filtered signal mix.
- Power Supply Included.
In the Box Electro-Harmonix Blurst Modulated Filter Pedal for Guitars and Bassists EHX Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Harmonix Blurst Modulated Filter Pedal for Guitars and Bassists in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Harmonix Blurst Specs | I/O | 1 x 1/4" Instrument input jack, phone type
1 x 1/4" Expression input jack, phone type
1 x 1/4" Instrument output jack, phone type | | Controls | TAP Footswitch
VOLUME Knob
BLEND Knob
RESONANCE Knob
RANGE Knob
RATE Knob
EXP MODE Switch
TAP DIVIDE Switch
SHAPE Switch
BYPASS Footswitch | | Impedance | Input: 2.2 MOhms
Output: 220 Ohms | | Power | 56 mA at 9 VDC | | Power Supply | EHX 9.6 VDC, 200 mA, included |
