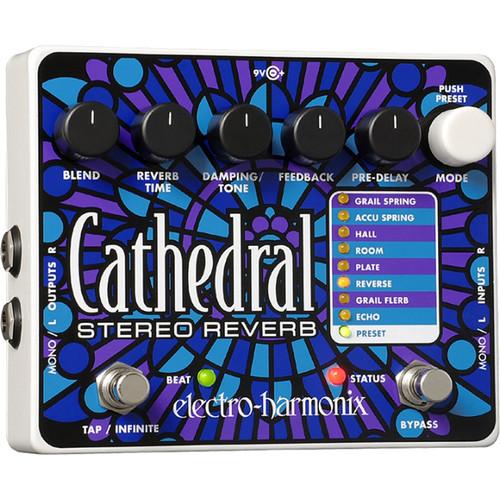

User Manual for Electro-Harmonix Cathedral Stereo Reverb Pedal Click to enlarge the picture
Contents of the user manual for the Electro-Harmonix Cathedral Stereo Reverb Pedal
- Product category: Effects Pedals Electro-Harmonix
- Brand: Electro-Harmonix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Harmonix Effects Pedals
|
User manual for the Electro-Harmonix Cathedral Stereo Reverb Pedal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Harmonix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Harmonix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Harmonix product will considerably shorten its lifespan!
|
Product description The Cathedral Stereo Reverb Pedal from Electro-Harmonix is a digital reverb pedal with seven different types of programmable reverb plus digital echo, all of which work in true stereo. The pedal can save and load up to eight presets, one preset for each different mode. There is a Damping/Tone control available for each reverb mode, which allows further refinement of the sound. The Tap Tempo footswitch sets the pre-delay for up to two seconds, with Feedback allowing for reverberant echoes. The unit runs on the included US96DC-200BI power supply. - True stereo inputs and outputs
- 24 bit studio quality A/D and D/A converters
- Professional reverb algorithms: Hall, Room, Plate and Reverse
- Instantaneous infinite reverb by pressing and holding the tap tempo footswitch
- Low noise and transparent signal path
UPC: 683274011028 In the Box Electro-Harmonix Cathedral Stereo Reverb Pedal US96DC-200BI Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Harmonix Cathedral Stereo Reverb Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Harmonix CATH Specs | Preset Modes | Grail Spring, Accutronics Spring, Hall, Room, Plate, Reverse, Grail Flerb, Echo | | Controls and Indicators | 1 x Knob: Blend
1 x Knob: Reverb Time
1 x Knob: Damping/Tone
1 x Knob: Feedback
1 x Knob: Pre-Delay
1 x Knob: Mode
1 x Footswitch: TAP Tempo/ Infinite
1 x Footswitch: Bypass
8 x LED: Mode
1 x LED: Preset
1 x LED: Beat
1 x LED: Status | | Connectors | 1/4" phone jack, left input
1/4" phone jack, right input
1/4" phone jack, left output
1/4" phone jack, right output
DC Power jack, 9 VDC power input | | Impedance | Input: 2 MΩ | | Sample Rate | 46.88 kHz | | Resolutions | 32 bits, processed audio
24 bits, A/D and D/A conversion | | Dimensions | 4.75 x 5.75 x 2.50" (12.1 x 14.6 x 6.4 cm) | | | | Package Weight | 2.1 lb | | Box Dimensions (LxWxH) | 8.0 x 6.5 x 3.4" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 81 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to Electro-Harmonix Cathedral Stereo Reverb Pedal
| Subject: Recently purchased cathedral pedal not modifying output in any way | | Date: 23.11.2020 00:29:24 | Name: Daniel Burt | Hello,
My name is Dan and I recently purchased a cathedral sound pedal, second hand, to use with my Yamaha keyboard and my bass speaker. Whether or not the bypass button is engaged or open, it has no effect on the output (other than volume, with bypass being a lot louder). This is my first time using a pedal and I am wondering if I am not using this correctly.
Thanks | | Post reply |
