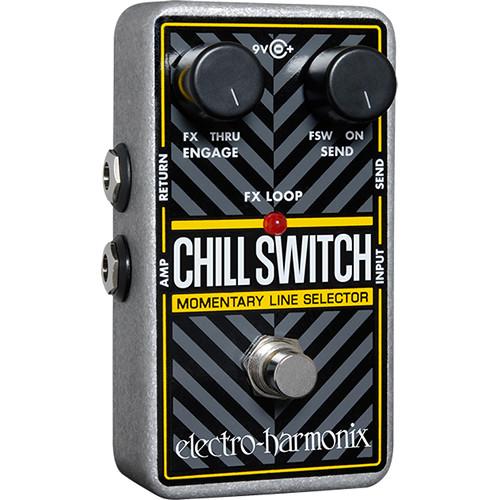

User Manual for Electro-Harmonix Chillswitch Momentary Line Selector Pedal Click to enlarge the picture
Contents of the user manual for the Electro-Harmonix Chillswitch Momentary Line Selector Pedal
- Product category: Effects Pedal Accessories Electro-Harmonix
- Brand: Electro-Harmonix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Harmonix Effects Pedal Accessories
|
User manual for the Electro-Harmonix Chillswitch Momentary Line Selector Pedal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Harmonix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Harmonix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Harmonix product will considerably shorten its lifespan!
|
Product description The Chillswitch Momentary Line Selector Pedal from Electro-Harmonix has two different modes. In Kill Mode, the Chillswitch pedal can be used to provide instant muting. It can also be used to create interesting stutter effects by turning the instrument's signal abruptly on and off for hard rhythmic in/out transitions.
In Line Selector Mode, the pedal can be used to quickly switch-in the effects loop, such as introducing a burst of distortion, analog delay induced feedback, or ring modulation. It can also be tapped in time with what is being played to bring effects in and out of the signal path rhythmically.
The unit runs on the included 9V battery, or on an optional 9.6DC-200BI power supply. - Momentarily toggle your instrument's signal path between an external efx loop and dry thru
- Mute your instrument when no effects loop is connected
- Silent switchable control over the on/off state of the footswitch
UPC: 683274011134 In the Box Electro-Harmonix Chillswitch Momentary Line Selector Pedal 9V Battery Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Harmonix Chillswitch Momentary Line Selector Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Harmonix CHILLSWITCH Specs | Controls and Indicators | Rotary switch, Engage
Rotary switch, Send
LED, Status | | Connectors | 1/4" phone jack, instrument/effect input
1/4" phone jack, effect output
1/4" phone jack, effect input
1/4" phone jack, effect/amplifier output
DC Power jack, 9 VDC power input | | Impedance | Inputs: 2.2 MOhms
Outputs: 220 ohms | | Current Draw | 25 mA, actual draw 12.5 mA | | Dimensions | 2.75 x 4.50 x 2.10" (7.0 x 11.4 x 5.3 cm) | | | | Package Weight | 0.75 lb | | Box Dimensions (LxWxH) | 5.9 x 3.4 x 2.8" |
