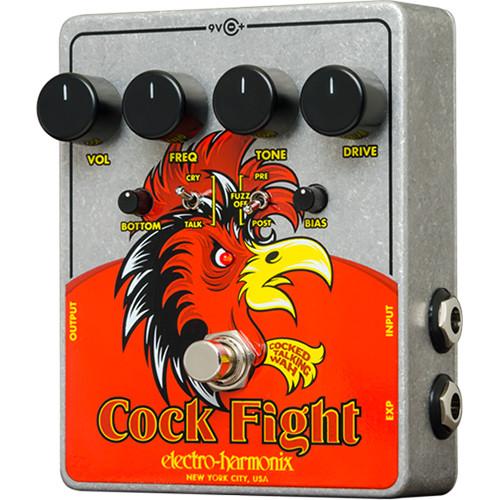

User Manual for Electro-Harmonix Cock Fight - Cocked Talking Wah Pedal with Fuzz Click to enlarge the picture
Contents of the user manual for the Electro-Harmonix Cock Fight - Cocked Talking
- Product category: Effects Pedals Electro-Harmonix
- Brand: Electro-Harmonix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Harmonix Effects Pedals
|
User manual for the Electro-Harmonix Cock Fight - Cocked Talking contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Harmonix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Harmonix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Harmonix product will considerably shorten its lifespan!
|
Product description Essentially three pedals in one housing, Cock Fight by Electro-Harmonix gives you two different kinds of wah (talk-wah and cry-wah) as well as fuzz distortion, and is suitable for both electric bass and electric guitar. Without an expression pedal, the unit acts as a fixed-position filter (or "cocked-wah"), its "freq" knob instantiating a specific frequency band for your guitar to pass through. However, if you plug in an external expression pedal (available separately) you'll be able to exert full domination over the frequency control with the rock of your foot, just like a standard wah pedal.
The fuzz can be instantiated in series, either after the wah or before the wah—or you can bypass the fuzz entirely. Should you call upon the fuzz, the tone knob will allow you to blend between a darker sound and a brighter one. Also, a bias knob controls tonal characteristics related to the fuzz; crank it one way and you'll affect a "normal" sound, but twist it in the other direction and you'll approximate a "dying battery" effect.
Don't discount the small bottom knob on the left the unit either—this one is particularly useful in conjunction with electric basses, as it can add some of the lows taken out by traditional bass-wahs back into the mix. -
- Three pedals in one: crying wah, talking wah (with adjustable frequency) plus a classic fuzz
- Fuzz can be placed before or after the filter, or can be bypassed entirely
- Bias Knob influences fuzz's sound
- Bottom knob for low-end manipulation, particularly useful for restoring lows in conjunction with bass guitars
- Includes an EHX 9.6DC-200 power supply but also works with 9V battery
- 1x 1/4" EXP input so you can sweep the frequency with an expression pedal
UPC: 683274011691 In the Box Electro-Harmonix Cock Fight - Cocked Talking Wah Pedal with Fuzz 9.6DC-200BI Power Supply Limited 1-year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Harmonix Cock Fight - Cocked Talking Wah Pedal with Fuzz in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Harmonix COCKFIGHT Specs | Controls and Indicators | VOL Knob: Controls master volume
FREQ Knob: Controls frequency of the filter
TONE Knob: Blends between dark and bright fuzz
DRIVE Knob: Controls amount of fuzz
BOTTOM Knob: Controls low-frequency boost/cut
BIAS Knob: Controls the transistor bias voltage
CRY/TALK Toggle Switch: Switches wah modes
PRE / FUZZ OFF / POST TOGGLE Switch: Changes series position of fuzz
Bypass Footswitch: Instantiates unit
Status Indicator LED: Lit when active | | Connectors | Input: 1 x 1/4" jack
Output: 1 x 1/4" jack
Expression Pedal: 1 x 1/4" jack, TRS
Power: Barrel-type connector, center-negative | | Impedance | Input: 2 MOhms
Output: 470 Ohms | | Power Requirements | Battery: 9V (alkaline recommended)
External Power Supply: 9 VDC, 200 mA, barrel-type connector, center-negative | | Current Draw | 35 mA | | Dimensions (W x D x H) | 4.0 x 4.75 x 2.25" / 102 x 121 x 89 mm | | | | Package Weight | 1.65 lb | | Box Dimensions (LxWxH) | 7.3 x 6.0 x 3.2" |
