User Manual for Electro-Harmonix Crayon 69 Full-Range Overdrive Pedal with Bass and Treble Controls Click to enlarge the picture
Contents of the user manual for the Electro-Harmonix Crayon 69 Full-Range Overdrive Pedal
- Product category: Effects Pedals Electro-Harmonix
- Brand: Electro-Harmonix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Harmonix Effects Pedals
|
User manual for the Electro-Harmonix Crayon 69 Full-Range Overdrive Pedal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Harmonix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Harmonix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Harmonix product will considerably shorten its lifespan!
|

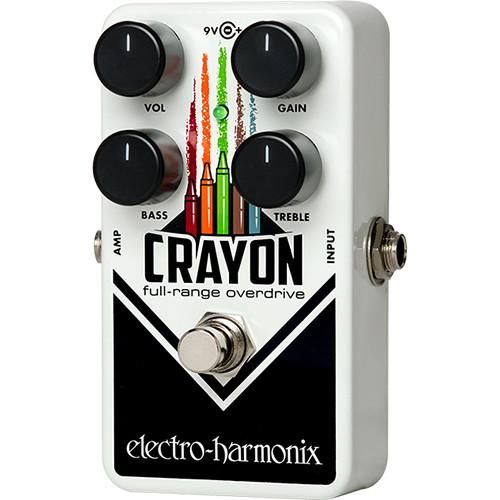

Product description Intended primarily for use with electric guitar, the Crayon 69 from Electro-Harmonix is a full-range overdrive pedal with bass and treble controls for adding more color to a wide variety of overdriven and distorted tones. It can add subtle dirt, and even lend some warmth to a single-coil pickup in the bridge position, emphasizing the treble range with a little buzz, and without ever sounding harsh—or even achieving a garage-rocky, dirty mid-boost by rolling back the levels of both bass and treble.Four knobs are available for your control—Drive, Volume, Bass, and Treble. Drive dictates the amount of overdrive, Volume provides level control, and the other two shape the timbre of your sound. True bypass circuitry ensures that in bypass mode, your signal is truly unprocessed. The pedal sounds warm and lush on its own, but also plays well with other stompboxes on the board for stacking effects or when driving another overdrive pedal.This is a mono pedal, with one 1/4” instrument input and one 1/4" instrument output. It runs on the included 9V battery, though it will also work with the separately available Electro-Harmonix 9.6 VDC 200mA power supply. The only difference between the Crayon 69 and the Crayon 76 is cosmetic, so choose whichever design best suits your look—or get both and use them together with different settings to complement each other. - Controls at a Glance
- GAIN Knob: This controls the amount of input gain. As you turn it clockwise, the overdrive ranges from just a touch of grit, in the fully counter-clockwise position, to classic distortion, in the fully clockwise setting.
VOL Knob: The control sets the output level of the Crayon. As VOL is turned clockwise, the output volume increases.
TREBLE Knob: As you turn TREBLE clockwise, the overdrive's high end is accentuated, making your tone brighter. Turn TREBLE counter-clockwise for a darker sound.
BASS Knob: As you turn BASS clockwise, the low end is boosted. Turn BASS counter-clockwise to reduce low end. UPC: 683274011769 In the Box Electro-Harmonix Crayon 69 Full-Range Overdrive Pedal with Bass and Treble Controls 9V Battery Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Harmonix Crayon 69 Full-Range Overdrive Pedal with Bass and Treble Controls in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Harmonix CRAYON 69 Specs | Audio Connections | 1 x 1/4" Instrument Input, Phone type
1 x 1/4" Instrument Output, Phone type | | Controls | GAIN knob
VOL knob
TREBLE knob
Bass knob
Bypass/Engage footswitch | | Impedance | Input: 315 kOhms
Output: 50 Ohms | | Bypass Switch | True bypass | | Power Source | 9 V Battery (included)
Electro-Harmonix 9.6 VDC-200 power supply (available separately) | | Current Draw | 10 mA at 9 VDC with battery
⋝25 mA at 9 VDC with adapter | | Dimensions (W x L x H) | 2.8 x 4.5 x 2.1" / 7.0 x 11.4 x 5.3 cm | | Weight | Not specified by manufacturer | | | | Package Weight | 0.68 lb | | Box Dimensions (LxWxH) | 5.65 x 3.45 x 2.85" |
