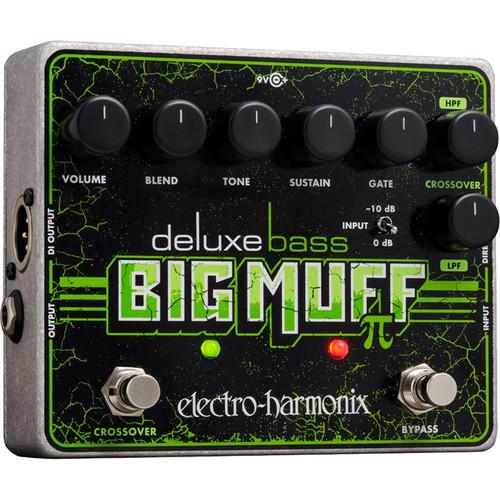

User Manual for Electro-Harmonix Deluxe Bass Big Muff Pi Distortion Sustainer Pedal Click to enlarge the picture
Contents of the user manual for the Electro-Harmonix Deluxe Bass Big Muff Pi
- Product category: Effects Pedals Electro-Harmonix
- Brand: Electro-Harmonix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Harmonix Effects Pedals
|
User manual for the Electro-Harmonix Deluxe Bass Big Muff Pi contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Harmonix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Harmonix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Harmonix product will considerably shorten its lifespan!
|
Product description The Deluxe Bass Big Muff Pi from Electro-Harmonix is a distortion/sustainer pedal which creates large sounding and versatile bass distortion. This pedal features seven knobs. The Volume knob works as a master volume for the entire pedal and is capable of boosting the input signal by 14 dB above unity gain, and obtains the right balance between bypass and effect. The Blend knob mixes between the dry and distorted signals. The Tone knob provides a range of sounds from high treble to deep bass on the distorted effect only.
The Sustain knob adjusts the amount of sustain and distortion. The Gate knob controls the input amplitude needed to open the noise gate, and removes unwanted hum. The HPF knob adjusts the cutoff frequency range of the high pass filter from 125 Hz to 1.75 kHz. And the LPF knob adjusts the cutoff frequency range of the low pass filter from 60 Hz to 10 kHz. The Deluxe Bass Big Muff also includes an Input toggle switch and Crossover and Bypass footswitches. This pedal has a DI output to connect directly to mixing consoles and recording equipment. UPC: 683274011318 In the Box Electro-Harmonix Deluxe Bass Big Muff Pi Distortion/Sustainer Pedal 9 VDC Battery Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Harmonix Deluxe Bass Big Muff Pi Distortion Sustainer Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Harmonix DXBBMUFF Specs | Input Gain | 14 dB (above unity gain) | | High Pass Filter | Knob level 125 Hz to 1.75 kHz | | Low Pass Filter | Knob level 60 Hz to 10 kHz | | Input Impedance | 2 MOhms | | Output Impedance | 600 ohms; (DI output) | | Controls | 7 x Knob: Volume, Blend, Tone, Sustain, Gate, HPF, and LPF
1 x Switch: Input 0/-10 dB attenuation
2 x Footswitch: Crossover and Bypass | | Connectors | 1/4" phone jack, input
1/4" phone jack, output
1/4" phone jack, direct output
XLR, DI output
Power jack, 9 VDC input | | Current Draw | 200 mA | | Power Requirement | 9 VDC internal battery | | Dimensions | 4.75 x 5.75 x 2.50" (146 x 121 x 64 mm) | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 7.2 x 6.2 x 2.8" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 49 owners. Add your rating and experience with the product.
