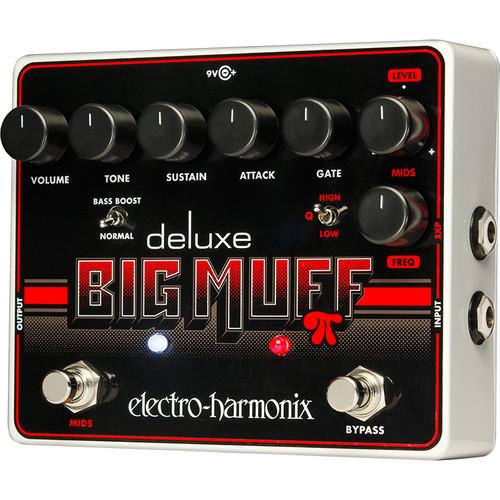

User Manual for Electro-Harmonix Deluxe Big Muff Pi Pedal Click to enlarge the picture
Contents of the user manual for the Electro-Harmonix Deluxe Big Muff Pi Pedal
- Product category: Effects Pedals Electro-Harmonix
- Brand: Electro-Harmonix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Harmonix Effects Pedals
|
User manual for the Electro-Harmonix Deluxe Big Muff Pi Pedal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Harmonix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Harmonix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Harmonix product will considerably shorten its lifespan!
|
Product description The Deluxe Big Muff Pi Pedal from Electro-Harmonix is a harmonic distortion-sustain device pedal developed for the electric guitar player. The Deluxe Big Muff includes seven knobs: The Volume knob is a master volume control for the entire pedal. The Tone Knob provides a range of sounds from high treble to deep bass. The Sustain knob adjusts the amount of sustain and distortion. The Attack knob is a volume control for the Attack effect. Turning the Gate knob clockwise raises the Gate threshold requiring greater input amplitude to open the noise gate, allowing your notes to be heard and your instrument to pass through. The Mids Level knob either boosts or cuts up to +/- 10 dB, at the frequency set by the Freq knob located below it. The Deluxe Big Muff also includes a Bass Boost/Normal Switch, a Mids Q switch (high / low), a Mids footswitch, and a Bypass footswitch. - Big Muff Knob Layout - familiar Sustain, Tone and Volume controls
- Mids EQ - fully parametric Mids EQ includes variable frequency sweep, boost or cut level control and switchable Q or bandwidth amount
- Footswitch for Mids EQ -turn on the Mids EQ circuit with the stomp of your foot
- Gate - remove unwanted hum
- Attack -preserves pick attack with an enhanced version of your dry signal
- Bass Boost - switchable bass boost
- Expression Pedal Input - sweep the frequency of the MIDS EQ with your foot
UPC: 683274011523 In the Box Electro-Harmonix Deluxe Big Muff Pi Pedal 9 V Battery Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Harmonix Deluxe Big Muff Pi Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Harmonix DELUXEBM Specs | Controls | Knobs: Volume, Tone, Sustain, Attack, Gate, Mids Level, Mids Freq
Switches: Bass Boost/Normal, Mids Q (high / low)
Footswitches: Mids, Bypass | | Connectors | 1/4" phone jack, input
1/4" phone jack, output
1/4" phone jack, EXP input
Power jack, 9 VDC input | | Input Impedance | 130 kΩ | | Output Impedance | 300 Ω | | Current Draw | 200 mA | | Power Requirement | 9 VDC internal battery | | LED Indicators | Bypass footswitch
Mids footswitch | | Dimensions | 4.75 x 5.75 x 2.50" (12.07 x 14.61 x 6.35 cm) | | | | Package Weight | 1.65 lb | | Box Dimensions (LxWxH) | 8.0 x 6.6 x 3.4" |
