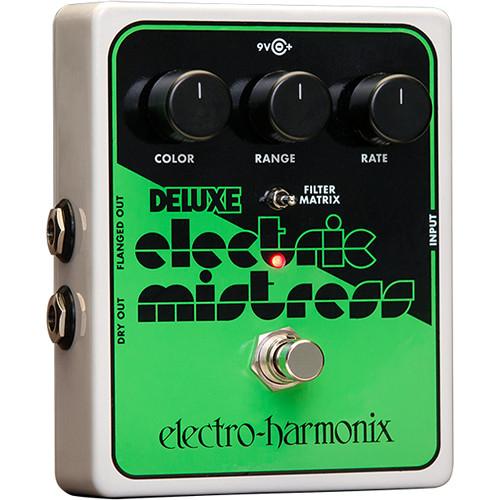

User Manual for Electro-Harmonix Deluxe Electric Mistress XO Analog Flanger Pedal Click to enlarge the picture
Contents of the user manual for the Electro-Harmonix Deluxe Electric Mistress XO Analog
- Product category: Effects Pedals Electro-Harmonix
- Brand: Electro-Harmonix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Harmonix Effects Pedals
|
User manual for the Electro-Harmonix Deluxe Electric Mistress XO Analog contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Harmonix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Harmonix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Harmonix product will considerably shorten its lifespan!
|
Product description The Deluxe Electric Mistress XO Analog Flanger Pedal from Electro-Harmonix is the smallest deluxe electric mistress guitar pedal made by Electro-Harmonix. The circuit remains true to its roots even though its footprint was reduced to fit into a pedalboard friendly die-cast box. Power is supplied by 9 VDC, either from the included AC Adapter or from a battery. This pedal features true bypass and LED indications. - Rich, resonant flanging now in a pedalboard friendly package
- Unique Filter Matrix mode stops the sweep for freeze-frame tones and tricks
- LED to indicate when effect is engaged
- True Bypass for maximum signal path integrity
In the Box Electro-Harmonix Deluxe Electric Mistress XO Analog Flanger Pedal EHX9.6-200mA Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Harmonix Deluxe Electric Mistress XO Analog Flanger Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Harmonix MISTRESS XO Specs | Controls | 1 x Knob: Rate
1 x Knob: Range
1 x Knob: Color
1 x Switch: Filter Matrix
1 x Footswitch: Effect/Bypass | | Indicators | LED, Effect/Bypass FSW | | Connectors | 1/4" phone jack, Input
1/4" phone jack, Flanged output
1/4" phone jack, Dry output
DC power jack, 9 VDC input | | Impedance | Input: 600 kΩ
Output: 5.5 kΩ | | Power Requirement | 9.6 VDC, 200 mA | | Power Supply | EHX9.6-200mA external power supply or internal 9 VDC battery | | FCC Compliance | Class B digital device, pursuant to part 15 of the FCC Rules | | Dimensions | 4.0 x 4.75 x 2.25" (102 x 121 x 89 mm) |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 91 owners. Add your rating and experience with the product.
