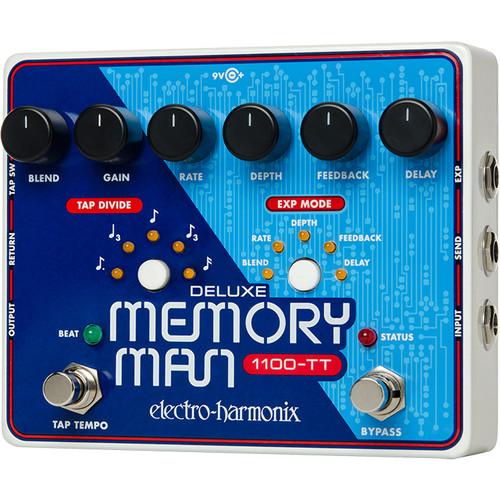

User Manual for Electro-Harmonix Deluxe Memory Man 1100-TT Analog Delay Pedal Click to enlarge the picture
Contents of the user manual for the Electro-Harmonix Deluxe Memory Man 1100-TT Analog
- Product category: Effects Pedals Electro-Harmonix
- Brand: Electro-Harmonix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Harmonix Effects Pedals
|
User manual for the Electro-Harmonix Deluxe Memory Man 1100-TT Analog contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Harmonix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Harmonix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Harmonix product will considerably shorten its lifespan!
|
Product description A big update in a small package, the Deluxe Memory Man MT1100-TT by Electro-Harmonix is an analog delay pedal designed for electric guitar. It sports the same sonic characteristics of the original Deluxe Memory Man while boasting new and expanded options—now tap tempo, metric subdivision, LED indication, and feedback manipulation are all available at the tap of a toe. Plug in an external expression pedal and you'll be able to exert full bipedal domination over the Blend, Rate, Depth, Feedback, and Delay knobs as well.
The MT1100-TT also features an effects loop that allows you to color the sound of your delays even more, with the aid of any outboard processing unit at your disposal. Note too that the tap-tempo footswitch turns into a feedback manipulator if pressed and held: just keep your foot planted on the switch to hear the amount of echo escalate in cacophony, then take your foot off and listen as it calms back down to your pre-set level. -
- Same sonic characteristics of the original Deluxe Memory Man
- Tap tempo allows you to set the time between echoes with the tap of your foot
- Metric subdivision button allows you to subdivide time between echoes further (i.e., if you tapped a quarter note, you can change it with the button to a dotted eighth or triplet)
- Five tap-tempo subdivisions: dotted 1/8 note, 1/4 note triplet, 1/8 note, 1/8 note triplet, and 1/16 note
- External expression pedal input provides standing foot-control over Blend, Rate, Depth, Feedback, and Delay knobs (available separately)
- Built-in effects loop to color sound further
- Tap-tempo footswitch turns into cascade of roaring echo-feedback if you keep it pressed down, then subsides when you take your foot off
- Support for an external, momentary tap-tempo footswitch (available separately)
- User-modifiable PCB for further customization
In the Box Electro-Harmonix Deluxe Memory Man 1100-TT Analog Delay Pedal 9.6DC-200BI Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Harmonix Deluxe Memory Man 1100-TT Analog Delay Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Harmonix MT1100 Specs | Controls and Indicators | Knobs: Blend, Gain, Rate, Depth, Feedback, and Delay
Footswitches: True Bypass and Tap-Tempo
Indicator LEDs: Tap Divide, Expression Mode, Beat, and Status | | Connectors | Input: 1 x 1/4" jack
Output: 1 x 1/4" jack
Effects Loop Send: 1 x 1/4" jack
Effects Loop Return: 1 x 1/4" jack
Expression Pedal: 1 x 1/4" jack, TRS
Tap Switch: 1 x 1/4" jack (for external tap tempo)
Power Input: barrel-type connector, center-negative | | Impedance | Input: 100 kOhms
Output: 200 ohms
Effects Return: 2 MOhms | | Power Requirements | External Power Supply: 9 VDC, 200 mA, barrel-type connector, center-negative
Does not support battery operation | | Dimensions (W x D x H) | 4.8 x 5.8 x 2.5" / 146 x 121 x 64 mm |
