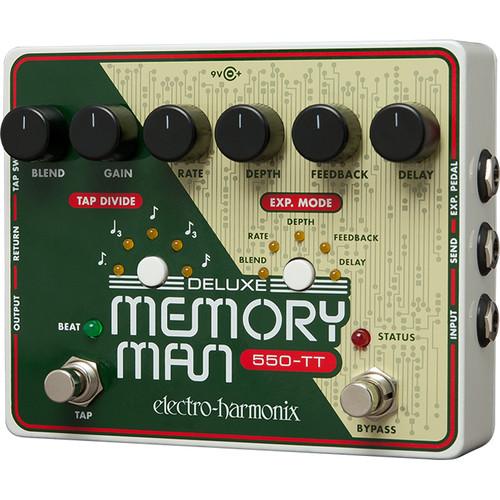

User Manual for Electro-Harmonix DMM550 Deluxe Memory Man Pedal with Tap Tempo Click to enlarge the picture
Contents of the user manual for the Electro-Harmonix DMM550 Deluxe Memory Man Pedal
- Product category: Effects Pedals Electro-Harmonix
- Brand: Electro-Harmonix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Harmonix Effects Pedals
|
User manual for the Electro-Harmonix DMM550 Deluxe Memory Man Pedal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Harmonix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Harmonix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Harmonix product will considerably shorten its lifespan!
|
Product description The DMM550 Deluxe Memory Man Pedal with Tap Tempo from Electro-Harmonix is a pedal designed with high quality, new old-stock bucket brigade ICs for an analog delay sound. In addition to Tap Tempo control of the delay time, the DMM550 also includes delay time modulation, an effects loop in the feedback path of the delay block, an input gain control, tap tempo divide, and optional expression pedal control over five parameters: Delay Time, Feedback, Modulation Depth, Rate, and Blend. This pedal is true bypass. - Deluxe Memory Man sound with Tap Tempo
- 5 Tap Tempo sub divisions: dotted eighth, quarter note triple, eighth note, eighth note triple, and sixteenth note
- NOS Panasonic bucket brigade ICs
- Blend, Rate, Depth, Feedback, and Delay Expression modes
- Send and Return FX Loop allows external effects to be added to the delay signal
UPC: 683274011202 In the Box Electro-Harmonix DMM550 Deluxe Memory Man Pedal with Tap Tempo 9 VDC AC Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Harmonix DMM550 Deluxe Memory Man Pedal with Tap Tempo in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Harmonix MT550 Specs | Controls | 1 x Knob: Delay
1 x Knob: Feedback
1 x Knob: Depth
1 x Knob: Rate
1 x Knob: Gain
1 x Knob: Blend
1 x Footswitch: Bypass
1 x Button: Expression Mode
1 x Footswitch: Tap
1 x Button: Tap Divide | | Indicators | LED, Status Bypass FSW
LED, Expression mode
LED, Beat
LED, Tap Divide | | Connectors | 1/4" phone jack, input
1/4" phone jack, output
1/4" phone jack, send
1/4" phone jack, return
1/4" phone jack, expression pedal
1/4" phone jack, tap SW
DC power jack, 9 VDC input | | Current Requirements | 9 VDC, 200 mA | | Polarity | Center negative | | Maximum Voltage | 10.5 VDC | | FCC Compliance | Class B digital device, pursuant to part 15 of the FCC Rules | | Dimensions | 4.75 x 5.75 x 2.5" (146 x 121 x 64 mm) | | | | Package Weight | 2.25 lb | | Box Dimensions (LxWxH) | 7.9 x 6.6 x 3.4" |
