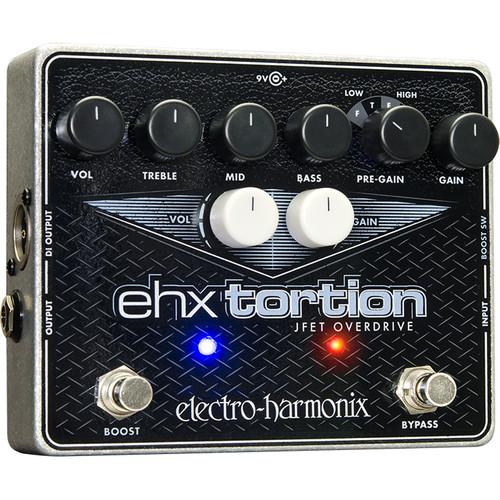

User Manual for Electro-Harmonix EHX Tortion JFET Overdrive Preamplifier Pedal Click to enlarge the picture
Contents of the user manual for the Electro-Harmonix EHX Tortion JFET Overdrive Preamplifier
- Product category: Effects Pedals Electro-Harmonix
- Brand: Electro-Harmonix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Harmonix Effects Pedals
|
User manual for the Electro-Harmonix EHX Tortion JFET Overdrive Preamplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Harmonix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Harmonix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Harmonix product will considerably shorten its lifespan!
|
Product description The EHX Tortion JFET Overdrive/Preamplifier from Electro-Harmonix is a pedal designed with analog JFET technology to reproduce the overdrive and distortion character of a tube amplifier. Three-band EQ and a Pre-Gain switch hone your sound, and a footswitch Boost mode adds a second channel of modern high-gain tones. Normal and Boost mode each has its own Volume and Gain knob.
This pedal features eight knobs. The Normal Gain knob controls the amount of input gain when the pedal is in Normal mode. The Pre-Gain knob controls the level and tone of the initial input signal to the pedal and has four settings: Full and Tight for low input level, and Full and Tight for a higher gain. The Bass knob controls the level of the bass frequency range. The Mid knob controls the level of the middle frequency range. The Treble knob controls the level of the treble frequency range. The Normal Vol knob controls the output level of the pedal when in Normal mode. The Boost Gain knob controls the amount of input gain when the pedal is in Boost mode. The Boost Vol knob controls the output level of the pedal when in Boost mode. In the Box Electro-Harmonix EHX Tortion JFET Overdrive/Preamplifier Pedal 9.6DC-200 Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Harmonix EHX Tortion JFET Overdrive Preamplifier Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Harmonix EHXTORTION Specs | Controls | 8 x Knob: Normal Gain, Pre-Gain, Bass, Mid, Treble, Normal Vol, Boost Gain, Boost Vol
2 x Footswitch: Bypass and Boost | | Indicators | LED red, Bypass
LED blue, Boost | | Connectors | 1/4" phone jack, input
1/4" phone jack, output
1/4" phone jack, Boost SW input
XLR, DI output
Power jack, 9 VDC input | | Input Impedance | 1 MΩ | | Output Impedance | 250Ω - 25 kΩ
DI output: 600Ω | | Current Draw | 27 mA | | Compliance | FCC | | Dimensions | 4.75 x 5.75 x 2.5" (146 x 121 x 64 mm) |
