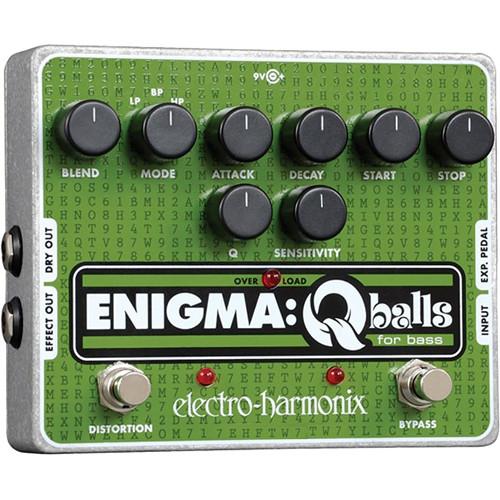

User Manual for Electro-Harmonix Enigma Envelope Filter Pedal for Bass Click to enlarge the picture
Contents of the user manual for the Electro-Harmonix Enigma Envelope Filter Pedal for
- Product category: Effects Pedals Electro-Harmonix
- Brand: Electro-Harmonix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Harmonix Effects Pedals
|
User manual for the Electro-Harmonix Enigma Envelope Filter Pedal for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Harmonix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Harmonix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Harmonix product will considerably shorten its lifespan!
|
Product description The Enigma Envelope Filter from Electro-Harmonix is a bass pedal with controlled filters which are a unique type of sound modifier where the intensity of the effect is controlled by the user's playing dynamics. The volume and dynamic of the incoming audio signal is used to control a swept filter. As the volume increases or decreases so does the frequency of the filter. With three filter modes, along with some other controls, all of the classic Q sounds are available to the user. An analog distortion circuit was created specifically for the Enigma, and adds a dynamic edge to the filters sound.
This pedal includes eight knobs: The Blend knob controls the output mix of the dry and effected signal. The Mode knob is a rotary switch used to select between the three filter modes available: LP, BP, and HP. The Attack knob controls how quickly the filter will sweep from the frequency set by the Start knob to the frequency set by the Stop knob. The Decay knob controls how sensitive the reset circuit is when falling back from the Stop setting to the Start setting. The Start and Stop knobs set the frequency that the filter sweeps to (40 Hz - 3 kHz). The Q knob controls the resonance of the Q. The Sensitivity knob controls the input sensitivity of the envelope filter circuit. UPC: 683274010960 In the Box Electro-Harmonix Enigma Envelope Filter Pedal for Bass 9.6VDC 200mA Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Harmonix Enigma Envelope Filter Pedal for Bass in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Harmonix ENIGMA Specs | Controls | 8 x knob: Blend, Mode, Attack, Decay, Start, Stop, Q, and Sensitivity
2 x footswitch: Distortion and Bypass | | Indicators | LED, Distortion
LED, Bypass
LED, Overload | | Connections | 1/4" phone jack, EXP Pedal input
1/4" phone jack, input
1/4" phone jack, Effect output
1/4" phone jack, Direct output
Power Jack, 9 VDC input | | Input Impedance | 10 kΩ | | Output Impedance | 300 Ω | | Frequency Range | Start and Stop knobs: 40 Hz - 3 kHz | | Dimensions | 4.75 x 5.75 x 2.50" (146 x 121 x 64 mm) |
