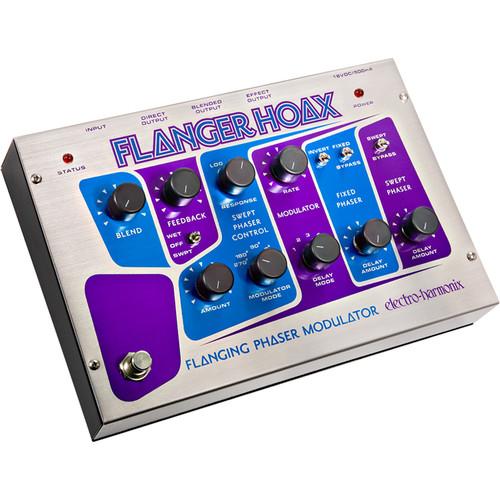

Product description The Flanger Hoax Phaser/Flanger Modulator from Electro-Harmonix is a modulation pedal with a variation of controls. The Blend knob mixes between the effect and the dry signal. The Feedback control includes a knob and a switch. The Feedback knob sets the amount of signal that is fed back into both phase shift circuits, and the switch has three positions: Wet, Off, and SWPT. The Flanger Hoax pedal features as well a Fixed/Bypass switch, the Swept/Bypass switch, and the Invert switch.
The Swept Phaser Control includes three knobs. The Amount knob controls the amount of modulation that sweeps the Swept Phaser. The Response knob determines how the Swept Phaser reacts to the modulation waveform. The Modulator Mode knob steps through the different phases of the modulation waveform. The Modulator control has two knobs. The Rate knob sets the frequency of the sine wave Modulator (0.07 Hz to 220 Hz). The Delay Mode knob selects between different phase shift combinations for the modulating waveform that sweeps the Fixed Phaser Delay line and the Swept Phaser Delay line.
The Fixed and Swept Phaser Sections are two independent phase shifter circuits, and have two knobs and three switches. The Fixed Phaser is set to a phase shift of 240°. The Swept Phaser varies from 240° to 990°. These two phase shift sections run parallel to each other. The output of each phase shifter goes into its own Delay line circuit. The Fixed and Swept Phaser blocks on the right side of the Flanger Hoax have similar controls, though the Swept Phaser has additional controls. The Delay Amount knobs control the amplitude of the sine wave that modulates the delay time (1 to 11 ms).
Connect your instrument or mixer's effects send output to the Flanger Hoax's input jack, and run a second cable from any or all of the three main outputs (Direct out, Blended out or Effect out). In the Box Electro-Harmonix Flanger Hoax Phaser/Flanger Modulator Pedal 18DC-500 Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Harmonix Flanger Hoax Phaser Flanger Modulator Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Harmonix FLANGER HOAX Specs | Controls | 1 x Knob: Blend
1 x Knob: Feedback
1 x Knob: Amount
1 x Knob: Response
1 x Knob: Modulator Mode
1 x Knob: Rate
1 x Knob: Delay Mode
1 x Knob: Delay Amount (for Fixed Phaser)
1 x Knob: Delay Amount (for Swept Phaser)
1 x Switch: Feedback (Wet/Off/SWPT)
1 x Switch: Invert (Fixed/Bypass for Fixed Phaser)
1 x Switch: Fixed/Bypass for Swept Phaser
1 x Footswitch: On/Bypass | | Indicators | 2 x LED, Status and Power | | Connectors | 1/4" phone jack, direct output
1/4" phone jack, blended output
1/4" phone jack, effect output
1/4" phone jack, input
Phone jack, 18 VDC input | | Phase Shift | Swept Phaser: 240° to 990 °
Invert switch: adds 180° to Fixed phaser | | Frequency Range | Rate knob: 0.07 Hz to 220 Hz | | | | Package Weight | 3.9 lb | | Box Dimensions (LxWxH) | 12.2 x 9.1 x 4.1" |
