User Manual for Electro-Harmonix Flatiron Fuzz Distortion Pedal for Electric Guitars Click to enlarge the picture
Contents of the user manual for the Electro-Harmonix Flatiron Fuzz Distortion Pedal for
- Product category: Effects Pedals Electro-Harmonix
- Brand: Electro-Harmonix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Harmonix Effects Pedals
 |
User manual for the Electro-Harmonix Flatiron Fuzz Distortion Pedal for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Harmonix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Harmonix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Harmonix product will considerably shorten its lifespan!
|

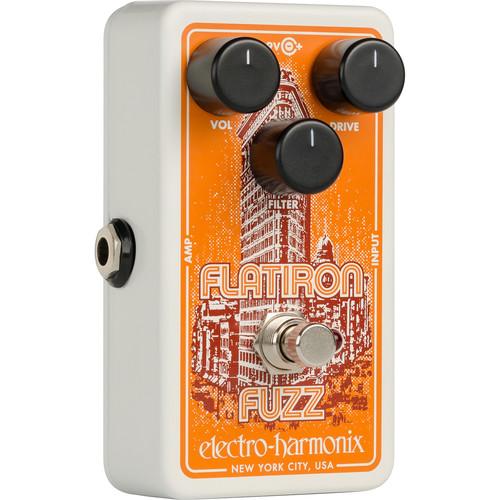

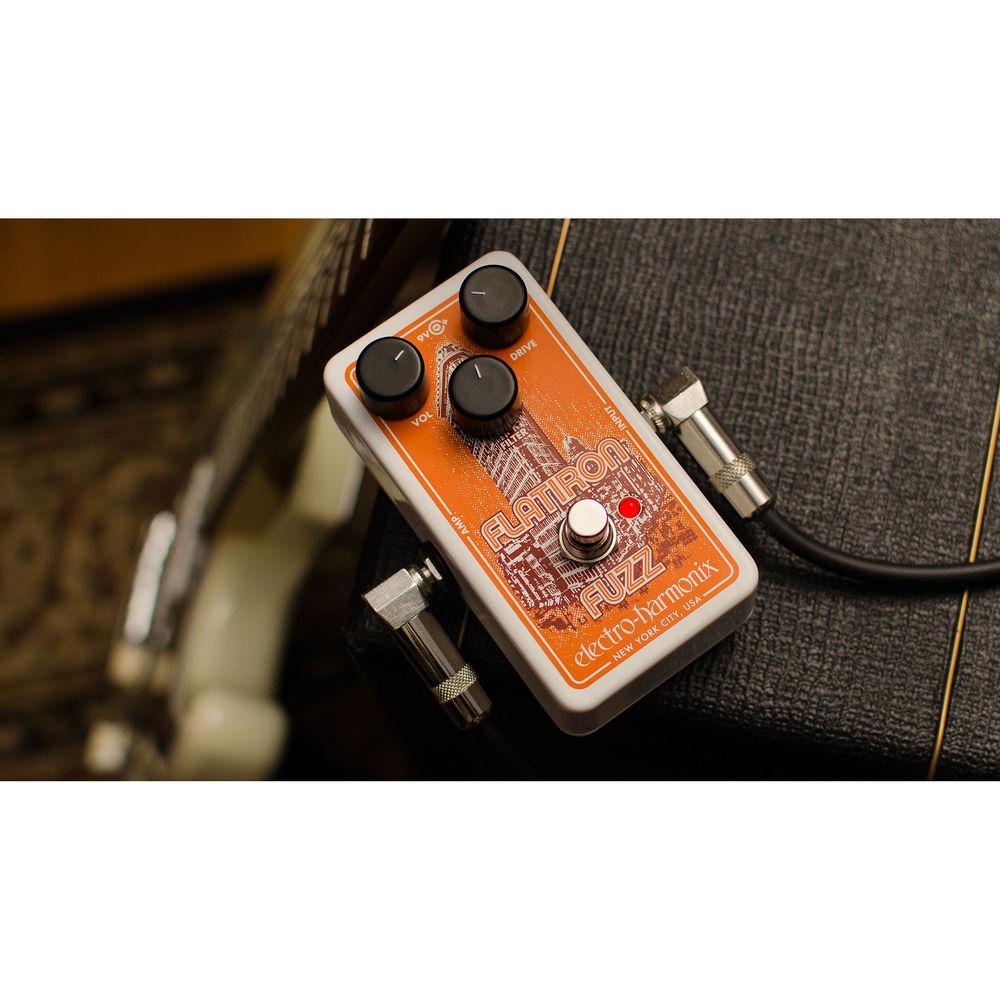

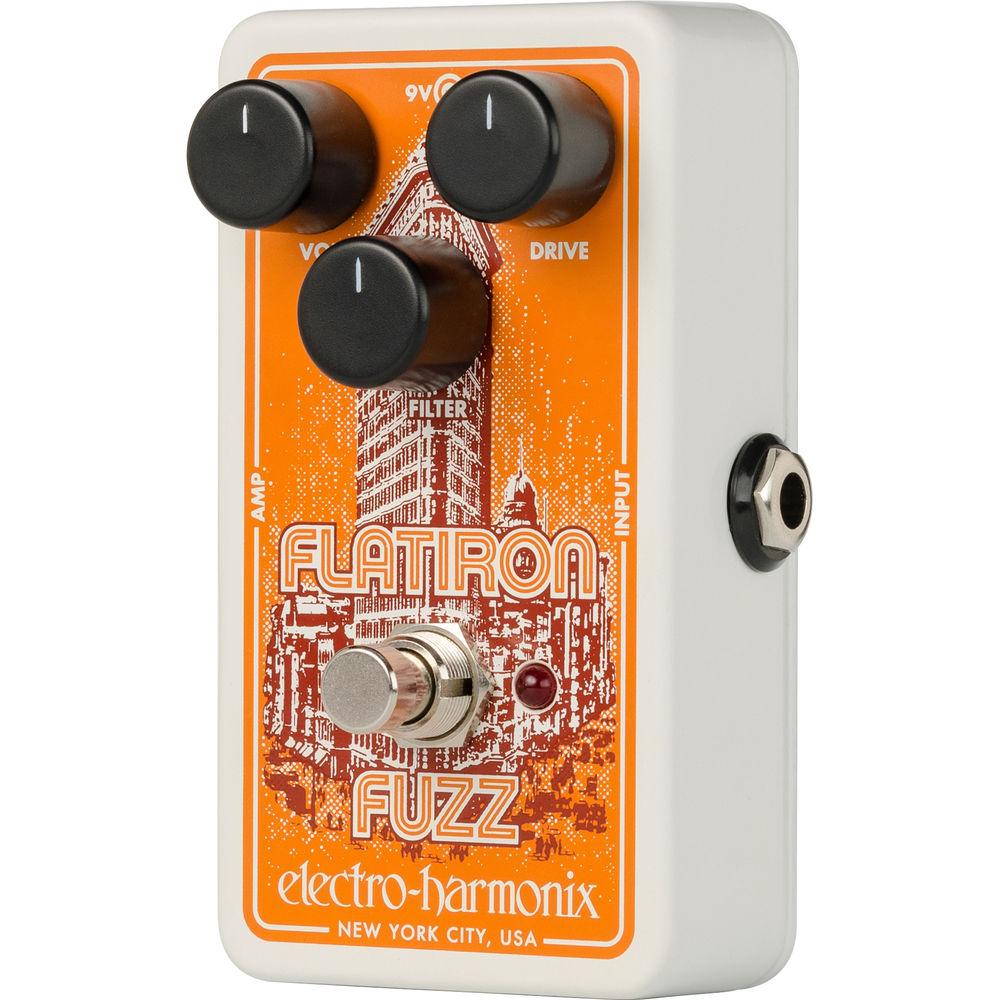

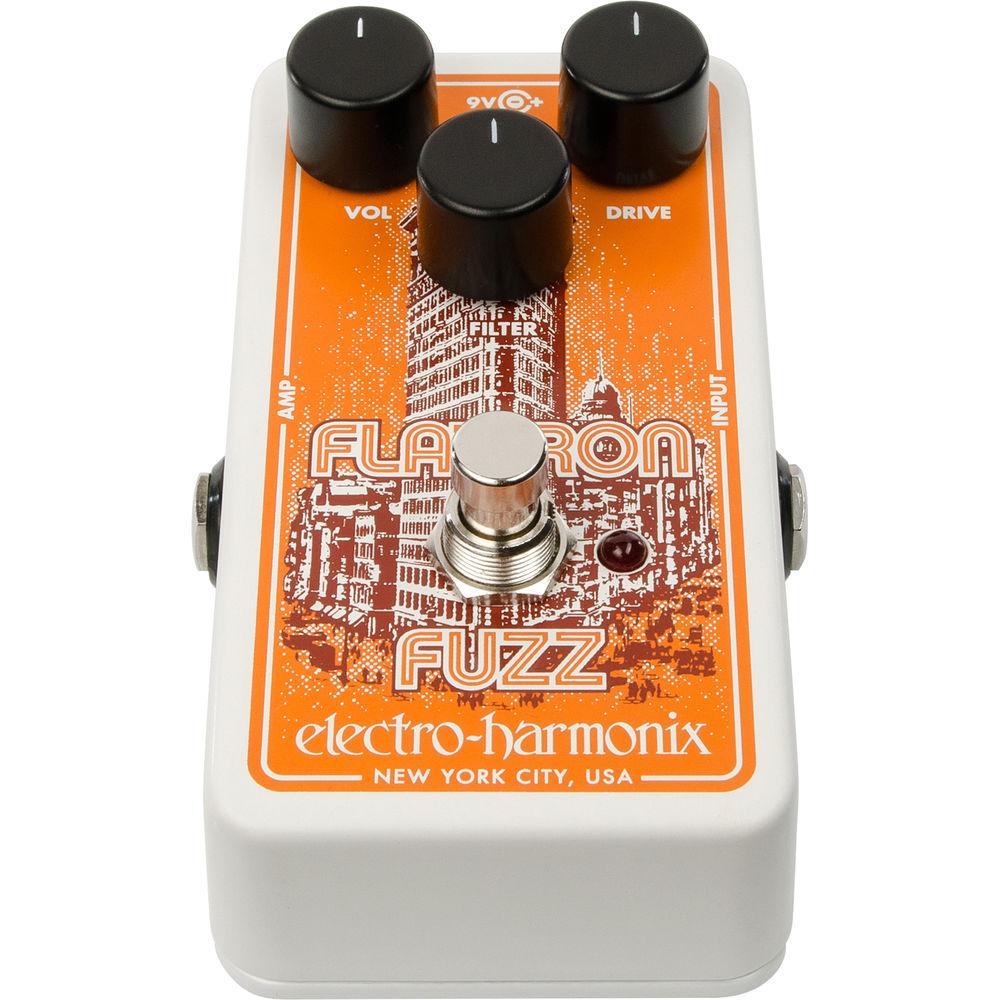

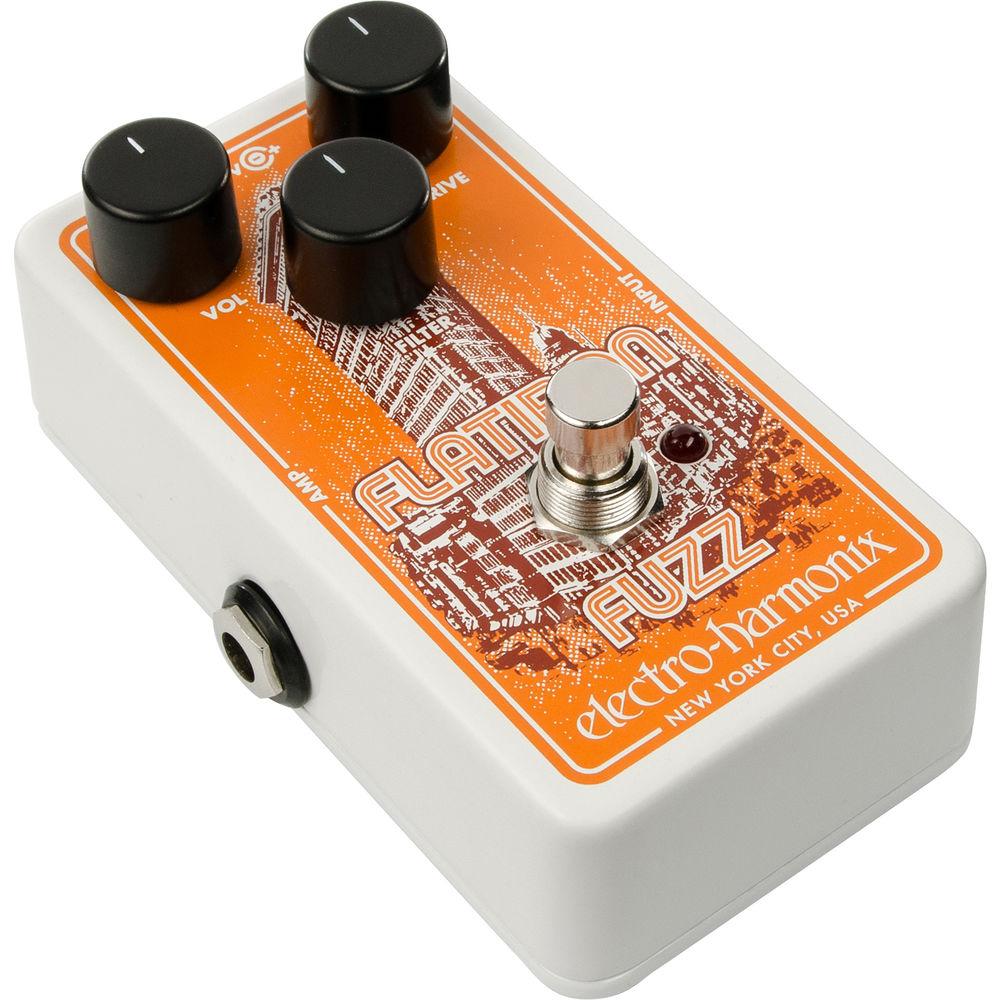

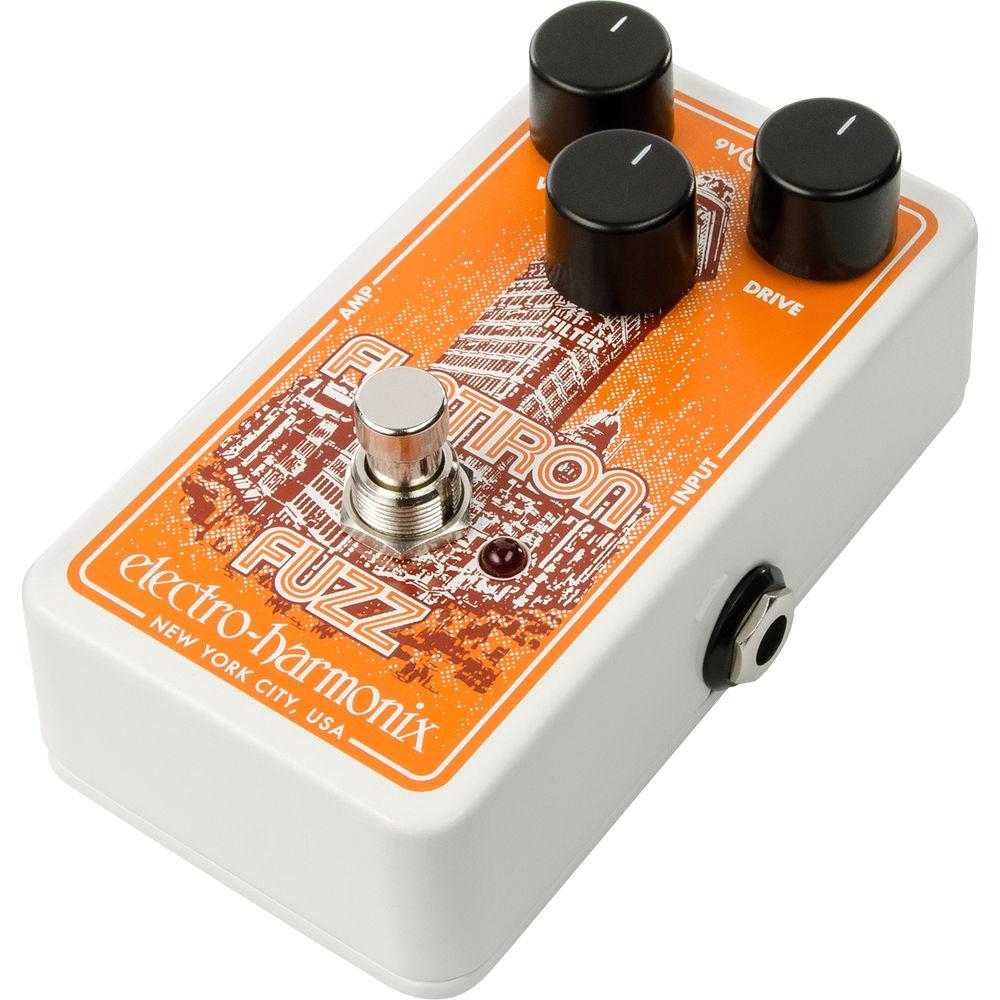

Product description The Electro-Harmonix Flatiron is a fuzz distortion pedal intended for electric guitarists. The pedal sports a classic op-amp design to give you both warm, rounded distortion and high-octane fuzz. Set the pedal to mild values to preserve a moderately clean tone with low-level saturation, or crank the Drive dial to secure a hefty, classic 1970s fuzz.

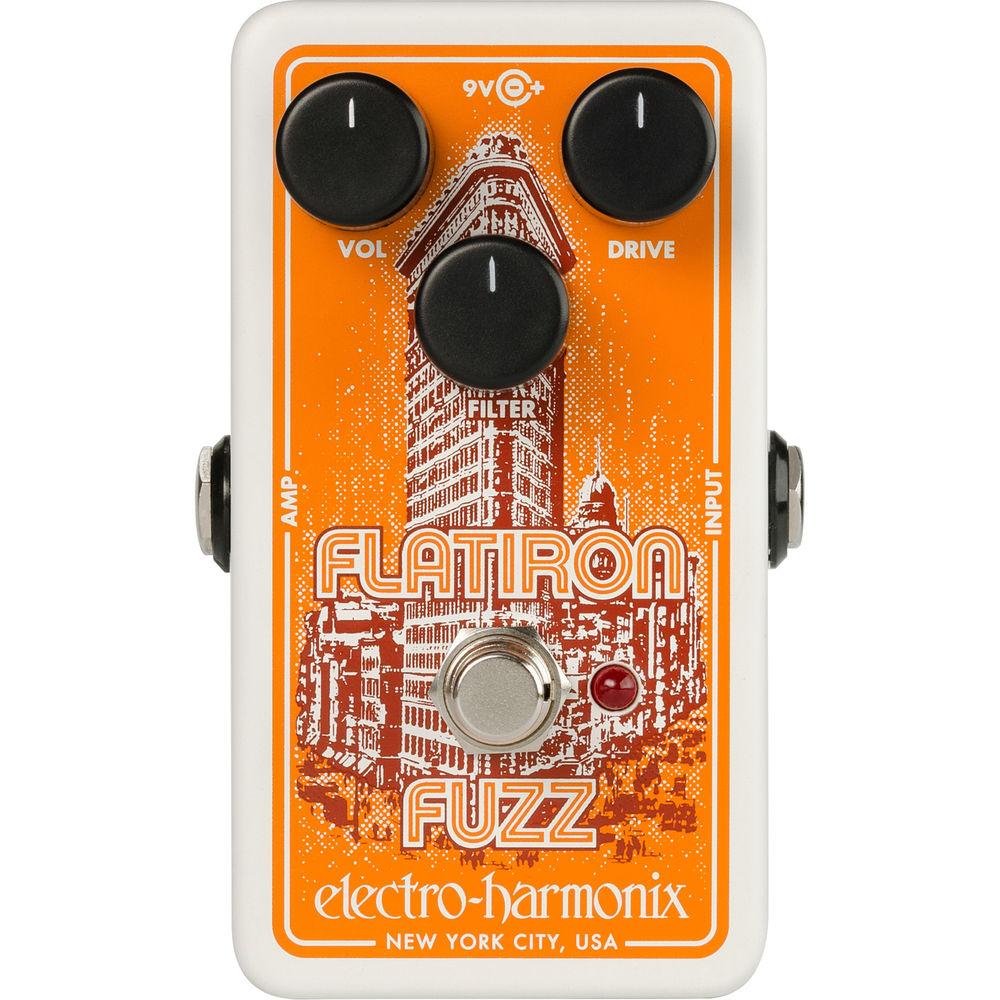

Use the Drive knob to dictate the amount of input gain in the circuit. The Filter knob introduces a low-pass filter for curtailing the highs, which can sometimes be over-emphasized by fuzz distortion. As you turn this knob clockwise, the center-frequency increases, letting you introduce more high-end into the circuit. The Volume knob controls the output level of the pedal.

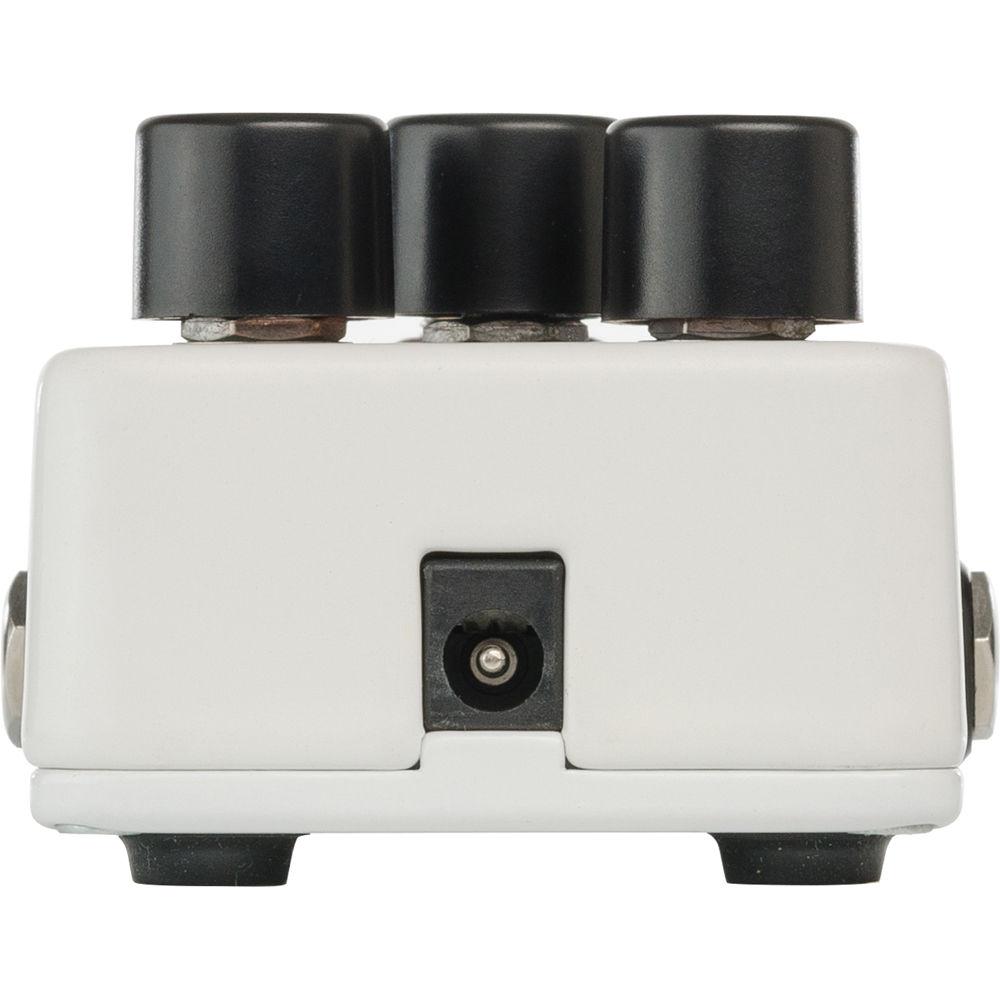

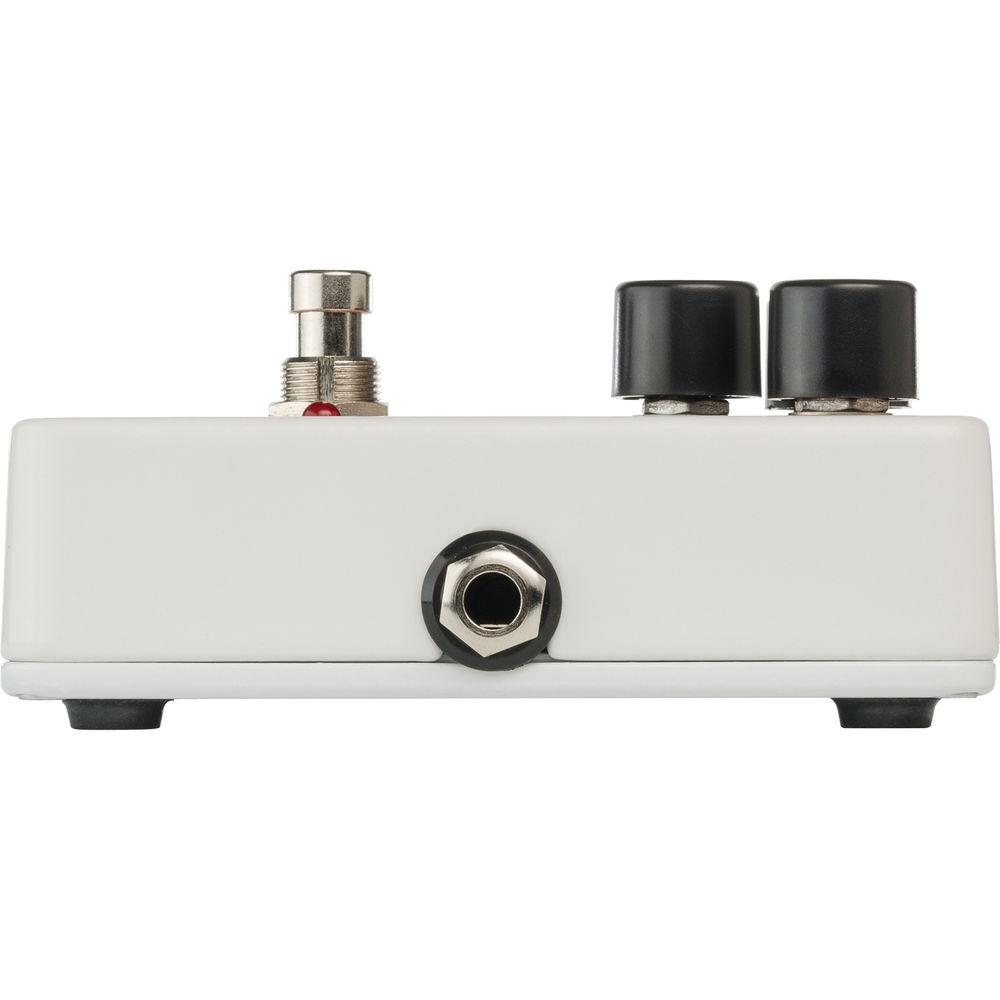

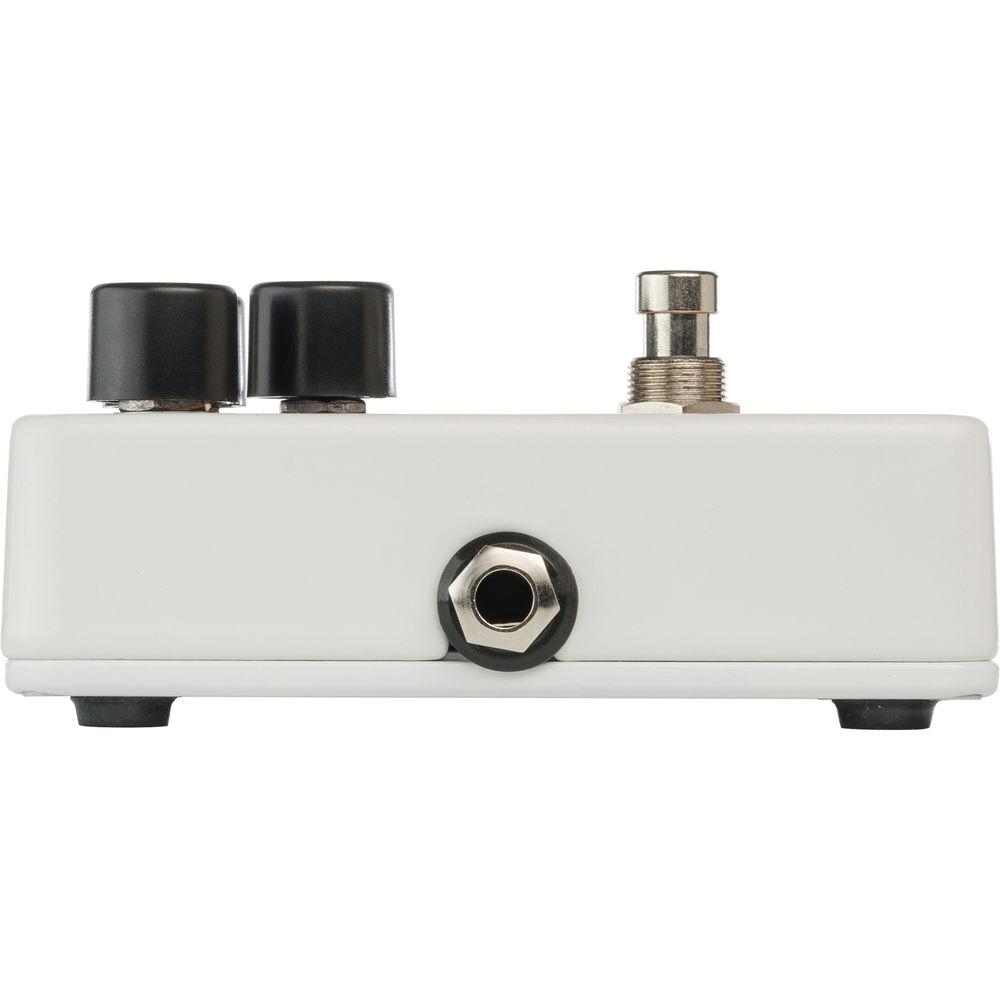

The Flatiron employs True Bypass circuitry on the Bypass/Engage footswitch, so that your tone remains pristine when the pedal is disengaged. A 1/4" instrument input and 1/4" instrument output are provided for your guitar. Use the supplied 9V battery to power the pedal on stage, or use a separately available EHX9.6VDC-200mA power supply. - Key Features at a Glance
-
- Classic op-amp powered fuzz/distortion
- Delivers symmetrical hard clipping
- As you turn down your guitar volume, it cleans up, but not all the way
- Filter control
- Features True Bypass to preserve signal-path integrity in bypass mode
UPC: 683274012056 In the Box Electro-Harmonix Flatiron Fuzz Distortion Pedal for Electric Guitars 9V Battery Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Harmonix Flatiron Fuzz Distortion Pedal for Electric Guitars in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Harmonix Flatiron Fuzz Specs | I/O | 1 x 1/4" Instrument Input, Phone Type
1 x 1/4" Instrument Output, Phone Type | | Controls | Volume Knob
Drive Knob
Filter Knob
Bypass/Engage Bypass | | Bypass Switch | True Bypass | | Power | 9 V Battery
EHX 9.6VDC-200mA Power Supply (Available Separately) | | Current Draw | 5 mA at 9 VDC | | Dimensions (W x L x H) | 2.75 x 4.5 x 2" / 70.0 x 115.0 x 51.0 mm | | Weight | Not Specified by Manufacturer |
