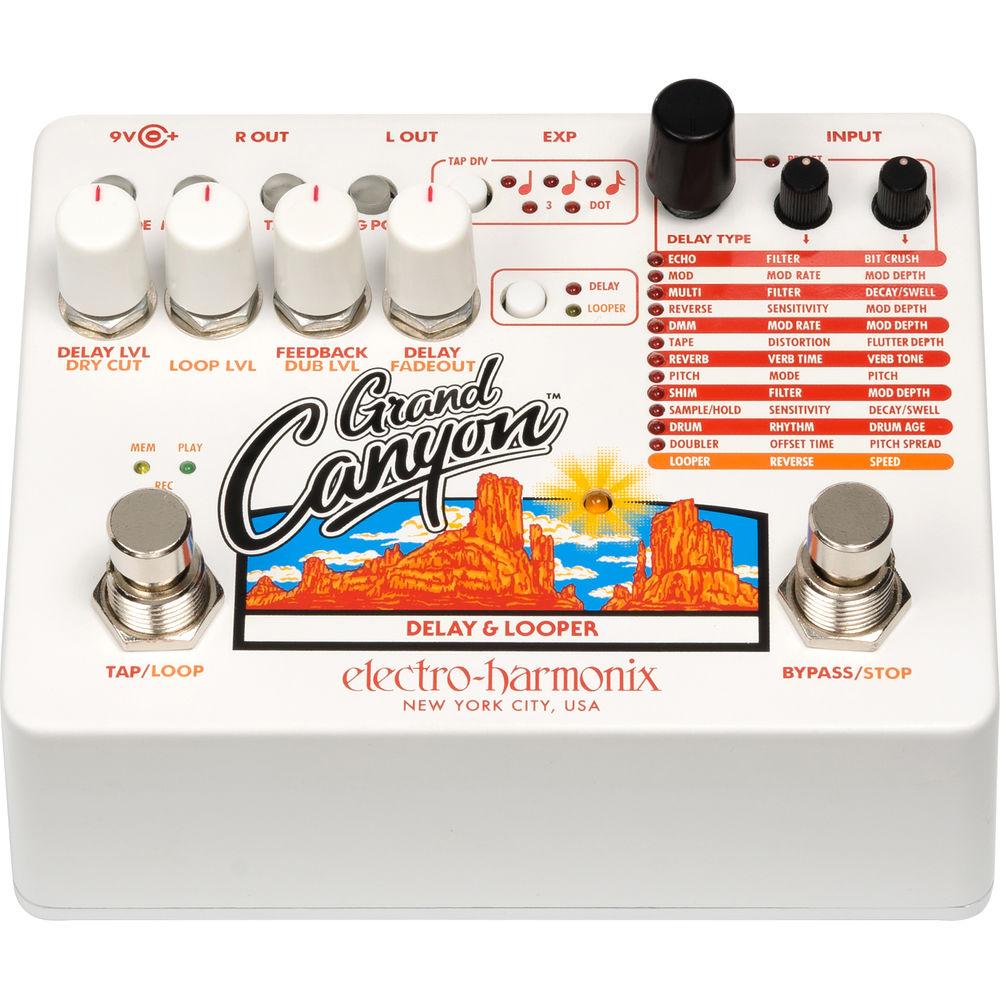

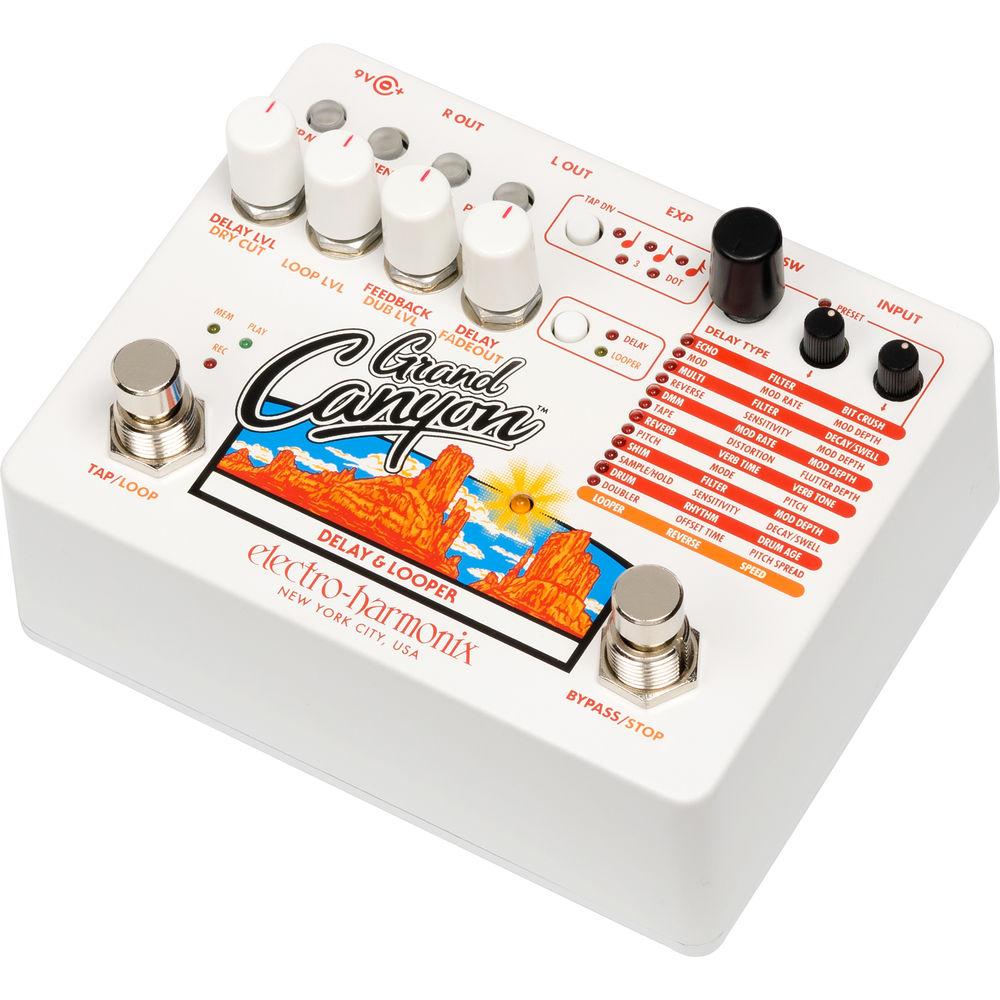

User Manual for Electro-Harmonix Grand Canyon Delay and Looper Pedal for Electric Guitarists Click to enlarge the picture
Contents of the user manual for the Electro-Harmonix Grand Canyon Delay and Looper
- Product category: Effects Pedals Electro-Harmonix
- Brand: Electro-Harmonix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Harmonix Effects Pedals
 |
User manual for the Electro-Harmonix Grand Canyon Delay and Looper contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Harmonix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Harmonix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Harmonix product will considerably shorten its lifespan!
|

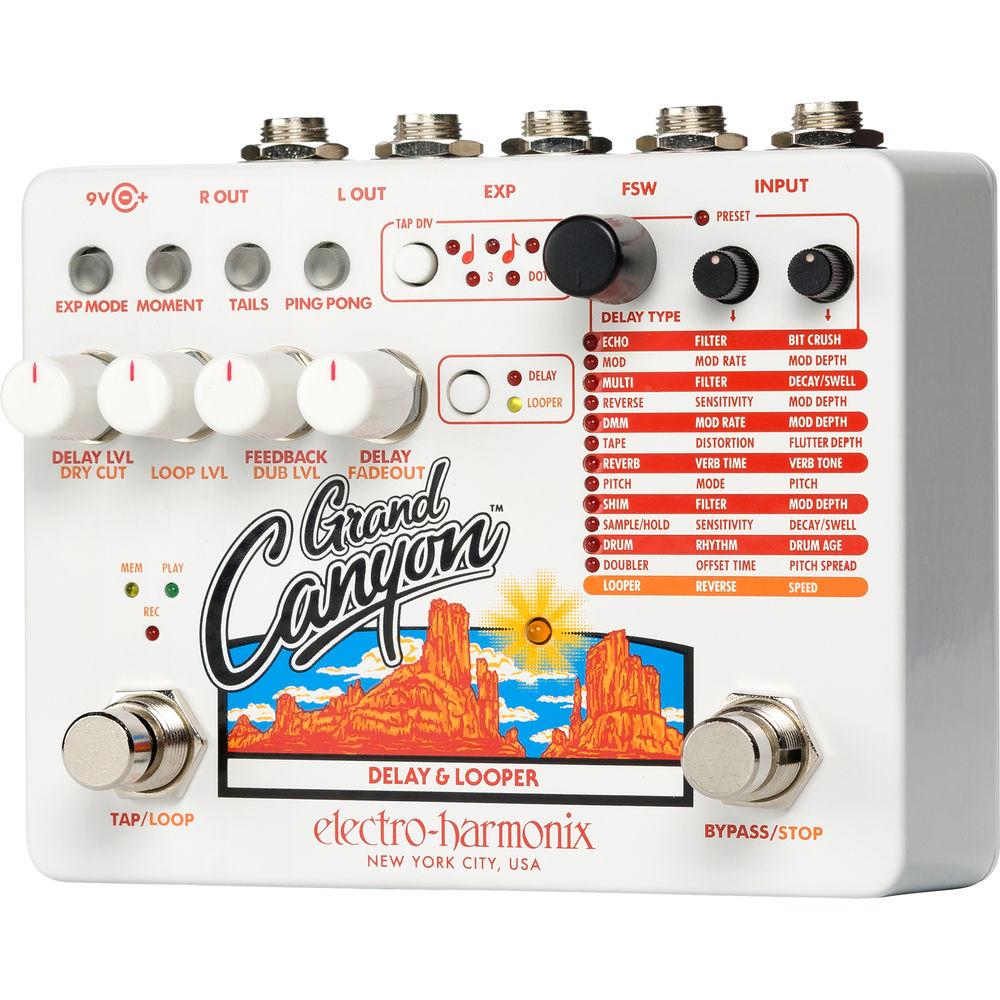

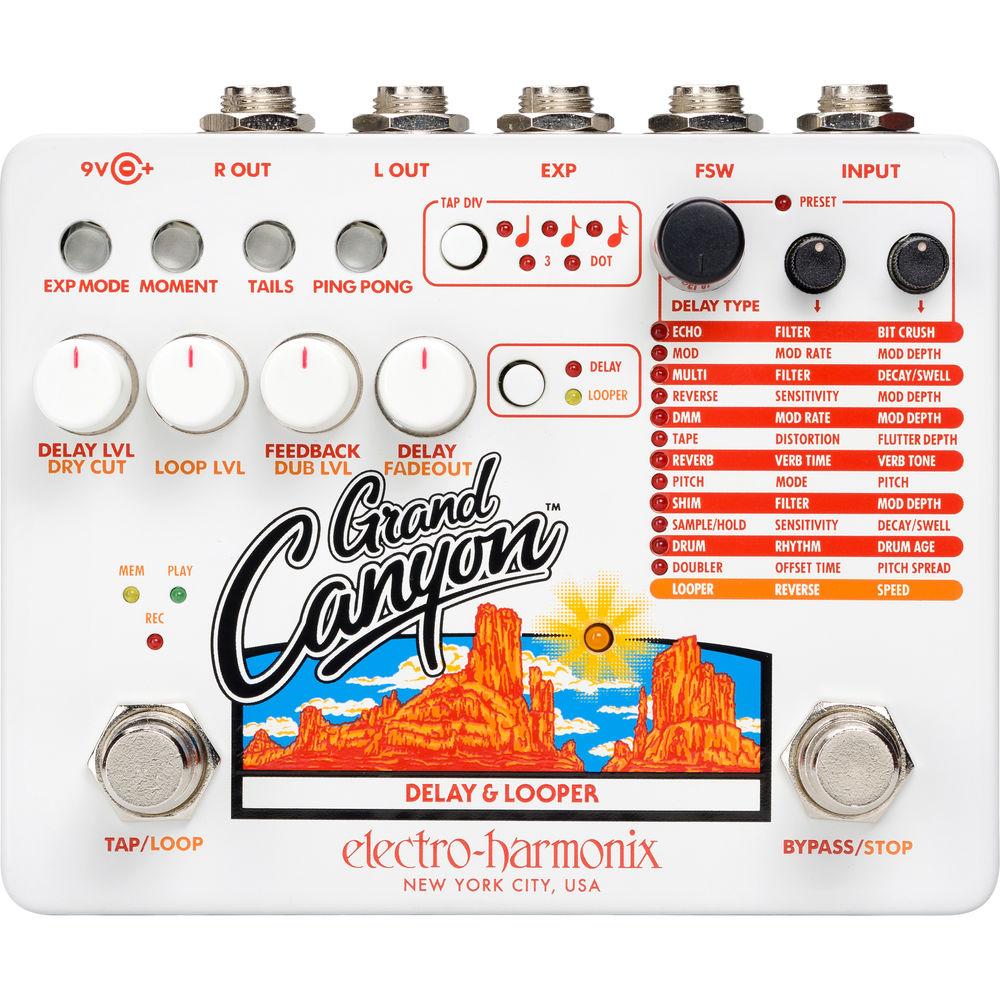

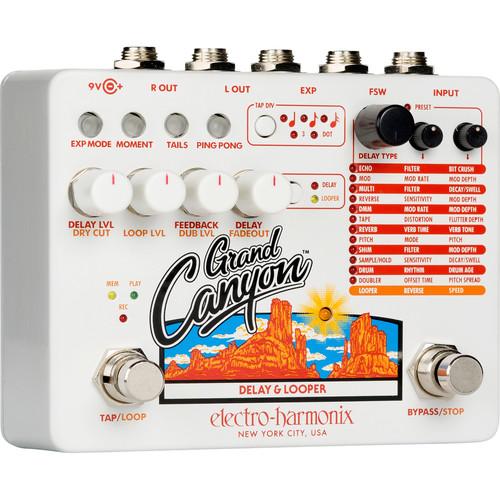

Product description Designed for guitarists who want access to a wide array of delays and time-based effects, the Electro-Harmonix Grand Canyon is a pedal providing 12 different effects and a 16-minute phrase looper. Effects include clean digital delay, tape echoes filled with wow and flutter, modulation delay, pitch delay, and more. Also included is an emulation of the well-regarded Deluxe Memory Man pedal. Simply use the Delay type knob to switch between effects or use the two Preset knobs to call up effects instantly. Many controls are provided, including knobs for delay level, feedback, delay time, as well as buttons to change whether tails fade out or stop abruptly. You can also choose among nine different subdivisions of tap tempo. Thirteen presets can be saved and recalled.In addition to its conventional delay modes, the Canyon offers a 16-minute phrase looper with control over how loud the loop will be upon adding overdubs into the mix. Indeed, all the delay knobs have secondary functions in loop mode; functions such as dry cut, overdub level, and fadeout time.A three-way momentary footswitch can be routed into the pedal via a 1/4" jack, and you can assign various controls to the 1/4" expression input. This pedal provides a mono input and stereo outputs. A power supply is included. - 11 Different Modes
- ECHO: This is a digital delay whereby each delayed repeat sounds exactly like the previous one and the repeats gradually decrease in volume.MOD: This is a modulated delay, giving you the same digital repeat structure as ECHO mode but with added modulation to the delayed repeats to impart warmth and complexity on the echo.MULTI: In Multi-Tap Delay mode, each repeat of the delayed signal occurs at exactly the same volume. The FEEDBACK knob sets the total number of these constant-volume repeats.REVERSE: In this Reverse Delay mode, your echoes will play in reverse from an intelligent algorithm that studies your playing and produces reversed echoes that best suit the delay time setting. You can use the pedal’s Secondary Knob Mode to adjust the sensitivity of the intelligent pluck-detection algorithm.DMM: This mode provides a faithful emulation of the Deluxe Memory Man bucket-brigade analog delay pedal—specifically, its tone. Organic echoes will transform as they repeat, and lush modulation is available using Secondary Knob Mode.TAPE: This mode simulates the prized analog tape echo units of the 1970s. Echoes degrade and distort as they repeat, as tape Wow and Flutter provide tape-like character.REVERB: In this mode, each echo also has plate reverb applied to it. If you turn the FEEDBACK knob all the way down, you’ll get a pure reverb effect, and the DELAY knob will control the predelay of the reverb.PITCH: In this octave delay, the pedal exhibits polyphonic pitch-shifting and cascading echo repeats.SHIM: This mode creates a shimmer effect, generating a rich octave-shifted wash of harmony with your guitar.SAMPLE/HOLD: In sample/hold mode, the pedal senses each of pluck of your guitar, repeating them indefinitely until another pluck is sensed. The FEEDBACK knob will control the Canyon’s sensitivity to guitar plucks. At the minimum position, only the strongest plucks will trigger the S/H mode. As FEEDBACK is turned up, the sensitivity of this mode increases.DRUM: This is a magnetic drum echo that replicates the Binson Echorec delay. It lets you create musical, rhythmic echo patterns.LOOP: Built into the pedal is a 16-minute phrase looper. A recorded loop will be stored permanently, even when the unit is removed from power. This feature gives you unlimited overdubs, undo/redo, a dedicated stop button, loop fade-out, reverse, and speed adjustment.
UPC: 683274012094 In the Box Electro-Harmonix Grand Canyon Delay and Looper Pedal for Electric Guitarists EHX Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Harmonix Grand Canyon Delay and Looper Pedal for Electric Guitarists in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Electro-Harmonix Grand Canyon Delay and Looper Pedal for Electric Guitarists can be downloaded in PDF format at the link stated below.

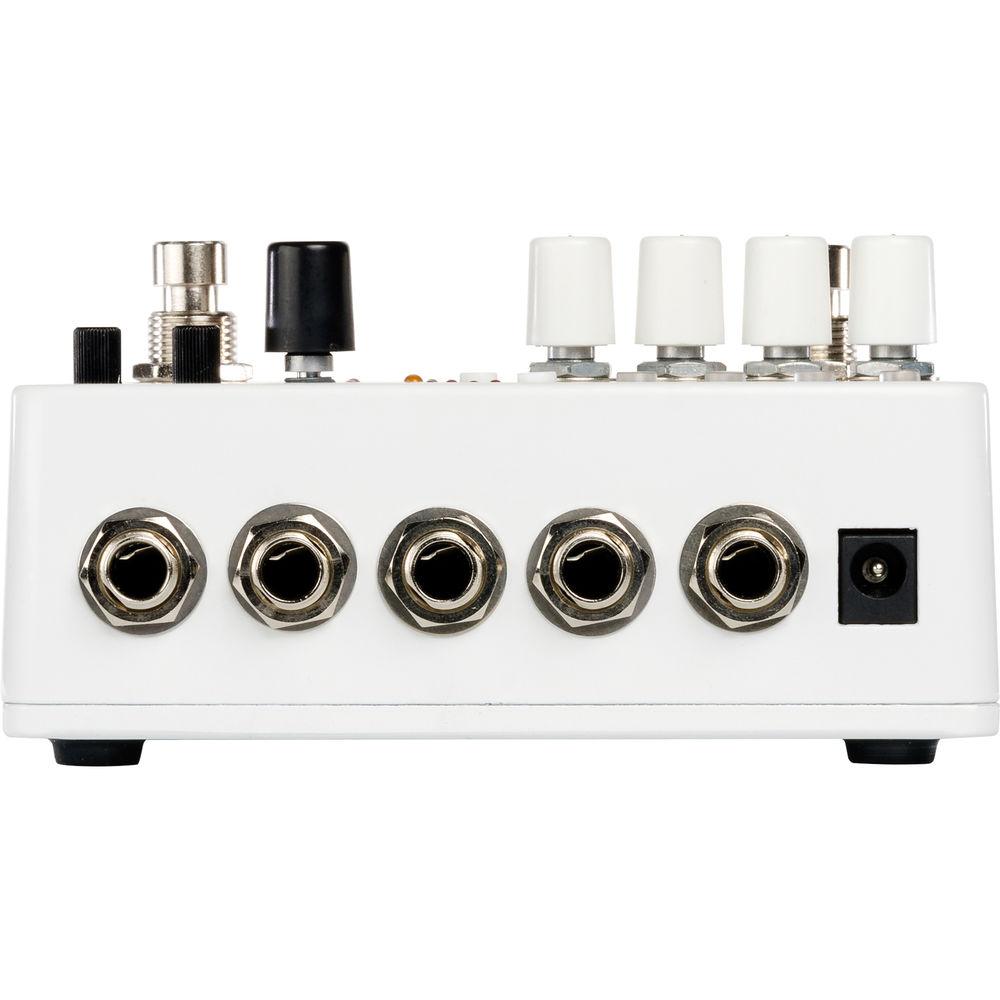

Technical parametersElectro-Harmonix Grand Canyon Specs | Audio Connections | 1 x 1/4" Instrument Input, Phone Type
1 x 1/4" Expression Input, Phone Type
1 x 1/4" Momentary Footswitch Input, Phone Type
2 x 1/4" Instrument Output, Left and Right | | Controls | DELAY LVL/DRY CUT knob
LOOPP LVL knob
FEEDBACK/DUB LVL knob
DELAY/FADEOUT knob
DELAY TYPE knob
PRESET UP button
PRESET DOWN button
EXP MODE button
MOMENT button
TAILS button
PING PONG button
TAP DIV button | | Phrase Looper | 16-minute maximum with undo/redo/overdub | | Power Source | EHX 9.6 VDC 200 mA power adapter (included) | | Dimensions (W x L x H) | 4.8 x 4.0 x 2.3" / 121.0 x 102.0 x 57.0 mm | | Weight | Not specified by manufacturer |
