User Manual for Electro-Harmonix Graphic Fuzz EQ Distortion Sustainer Pedal Click to enlarge the picture
Contents of the user manual for the Electro-Harmonix Graphic Fuzz EQ Distortion Sustainer
- Product category: Effects Pedals Electro-Harmonix
- Brand: Electro-Harmonix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Harmonix Effects Pedals
|
User manual for the Electro-Harmonix Graphic Fuzz EQ Distortion Sustainer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Harmonix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Harmonix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Harmonix product will considerably shorten its lifespan!
|

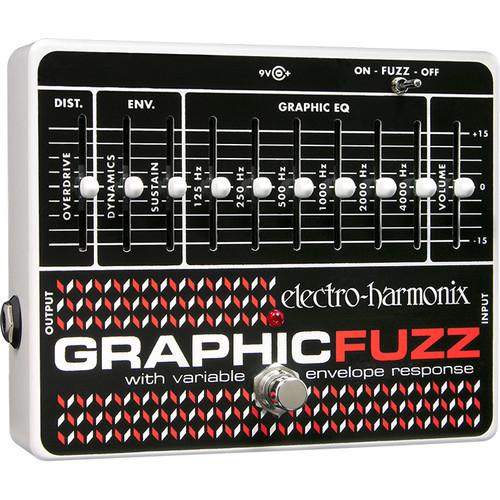

Product description The Graphic Fuzz EQ/Distortion/Sustainer Pedal from Electro-Harmonix is an AC operated unit which features a six bands graphic equalizer. It has been specially designed for low noise / low hum operation. An LED indicator shows when the effect is in either the On or Bypass modes. This unit is sensitive to the dynamics of your playing, that is, the effect will be louder when you play harder and will be quieter when you strum or pick more softly.
The Graphic Fuzz has ten sliders. The Graphic EQ section has six slide pots which allow you to adjust the output level by as much as plus or minus 15 dB in the 125 Hz, 250 Hz, 500 Hz, 1000 Hz, 2000 Hz, and 4000 Hz frequency bands. The Volume slider controls the output volume level. The Dynamics slider controls the sensitivity of the unit to your playing style. The Sustain slider controls how long a note is sustained. The Overdrive slider allows you to control the amount of distortion in the output signal. UPC: 683274010885 In the Box Electro-Harmonix Graphic Fuzz EQ/Distortion/Sustainer Pedal 96DC-200BI Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Harmonix Graphic Fuzz EQ Distortion Sustainer Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Harmonix GRAPHIC FUZZ Specs | Controls | 10 x Slider: Overdrive, Dynamics, Sustain, 125 Hz, 250 Hz, 500 Hz, 1000 Hz, 2000 Hz, 4000 Hz, and Volume
1 x Footswitch: On/Bypass
1 x Switch: On/Fuzz/Off | | Indicators | LED red, status | | Connectors | 1/4" phone jack, input
1/4" phone jack, output
DC power jack, 9 VDC input | | Power | 95-120 VAC, 50-60 Hz | | Input Impedance | 200 kΩ | | Output Impedance | 1 kΩ | | Input Level | 200 mV to 1 V RMS | | Output Level | 1 V nominal, 7 V maximum | | Gain Range | 28 dB | | Time Range | 100 ms to 10 sec | | Equalizer | Controls: ± 15 DB | | Dimensions | 4.75 x 5.75 x 2.5" (146 x 121 x 64 mm) | | | | Package Weight | 2.1 lb | | Box Dimensions (LxWxH) | 8.1 x 6.6 x 3.3" |
