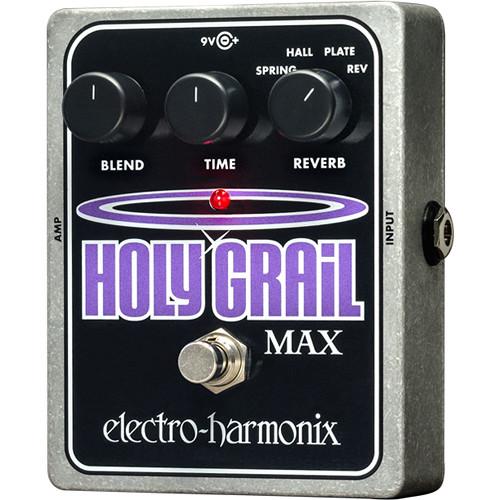

User Manual for Electro-Harmonix Holy Grail Max Reverb Guitar Pedal Click to enlarge the picture
Contents of the user manual for the Electro-Harmonix Holy Grail Max Reverb Guitar
- Product category: Effects Pedals Electro-Harmonix
- Brand: Electro-Harmonix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Harmonix Effects Pedals
|
User manual for the Electro-Harmonix Holy Grail Max Reverb Guitar contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Harmonix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Harmonix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Harmonix product will considerably shorten its lifespan!
|
Product description The Holy Grail Max from Electro-Harmonix is a compact reverb pedal that features four different reverb algorithms: Spring, Hall, Plate, and Reverse. The algorithms were designed and tailored for the electric guitar, but work equally well with most instruments and voices. Controls are included for Time and Blend. The Time knob adjusts the reverb's decay when in Spring, Hall, and Plate modes. In Reverse mode, it regulates the length of time between striking a note and the reverb fade-in. While in Plate mode, when Time is set to its maximum position, the reverb decay is over 30 seconds long, creating a lush reverb wash with each new note. A Blend knob adjusts the wet/dry mix. The unit is enclosed in a tough and compact die-cast chassis, and comes with a US9.6VDC-200BI power supply.
The Spring algorithm is a re-creation of the classic spring reverbs that are found in many guitar amplifiers. The Hall algorithm simulates the reverberations heard in large spaces such as concert halls and cathedrals. The Plate algorithm is an emulation of a metal plate reverb which was commonly found in high-end recording studios during the 1960s and '70s; it is a very smooth, tonally balanced reverb that works well on many different instruments, and especially on vocals. Reverse Reverb is an emulation of the reverse reverb trick commonly performed in studios. True bypass switching ensures your tone won't be affected when the pedal is bypassed. Note: Use only the US9.6VDC-200BI power supply provided with the unit. Using other AC adapters, even those made by Electro-Harmonix, could cause harm to the unit or the adapter. The Holy Grail Max requires 9 VDC @ 80 mA with a center negative plug and does not use batteries. UPC: 683274011431 In the Box Electro-Harmonix Holy Grail Max Reverb Guitar Pedal US9.6DC-200BI Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Harmonix Holy Grail Max Reverb Guitar Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Harmonix HOLYGRAILMAX Specs | Controls and Indicators | Reverb switch
Time knob
Blend knob
Bypass footswitch with status LED | | Connectors | 1/4" phone jack, input
1/4" phone jack, output
DC Power jack, 9 VDC power input | | Impedance | Input: 1 MOhm
Output: 550 ohms | | Power Requirements | 9 VDC @ 80 mA | | Dimensions | 4.00 x 4.75 x 2.25" (102 x 121 x 89 mm) | | | | Package Weight | 1.55 lb | | Box Dimensions (LxWxH) | 7.2 x 6.1 x 3.1" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 26 owners. Add your rating and experience with the product.
