User Manual for Electro-Harmonix Holy Grail Plus Reverb Guitar Pedal Click to enlarge the picture
Contents of the user manual for the Electro-Harmonix Holy Grail Plus Reverb Guitar
- Product category: Effects Pedals Electro-Harmonix
- Brand: Electro-Harmonix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Harmonix Effects Pedals
|
User manual for the Electro-Harmonix Holy Grail Plus Reverb Guitar contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Harmonix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Harmonix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Harmonix product will considerably shorten its lifespan!
|

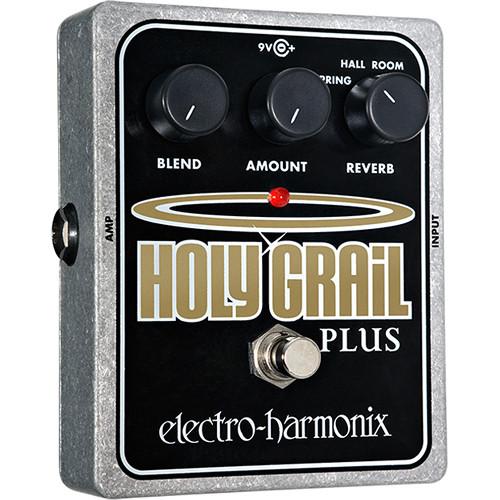

Product description The Holy Grail Plus from Electro-Harmonix is a compact reverb pedal that features four different reverb algorithms: Spring, Hall, Room, and Flerb. The algorithms were designed and tailored for the electric guitar, but work equally well with most instruments and voices. This unit is equipped with controls for Amount and Blend. The function of the Amount knob varies depending on the Reverb mode setting. In both Spring and Hall modes, Amount controls the reverb time. In Room mode, Amount regulates the level of damping. In Flerb mode, it is used to adjust the modulation rate and flanger feedback. Blend controls the wet/dry mix in all modes. The unit is enclosed in a tough and compact die-cast chassis, and comes with a US9.6VDC-200BI power supply.
The Spring algorithm is a re-creation of the classic spring reverbs that are found in many guitar amplifiers. The Hall algorithm simulates the reverberations heard in large spaces such as concert halls and cathedrals. The Room algorithm is a simulation of the reverb heard in small spaces. The Flerb algorithm effect is made up of a reverb followed in series by a flanger. True bypass switching ensures your tone won't be affected when the pedal is bypassed. Note: Use only the US9.6VDC-200BI power supply provided with the unit. Using other AC adapters, even those made by Electro-Harmonix, could cause harm to the unit or the adapter. The Holy Grail Plus requires 9 VDC @ 200 mA with a center negative plug and does not use batteries. In the Box Electro-Harmonix Holy Grail Plus Reverb Guitar Pedal US9.6DC-200BI Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Harmonix Holy Grail Plus Reverb Guitar Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Harmonix HOLY GRAIL+ Specs | Controls and Indicators | Reverb switch
Amount knob
Blend knob
Bypass footswitch with status LED | | Connectors | 1/4" phone jack, input
1/4" phone jack, output
DC Power jack, 9 VDC power input | | Impedance | Input: 680 kOhms
Output: 360 ohms | | Power Requirements | 9 VDC @ 200 mA | | Dimensions | 4.00 x 4.75 x 2.25" (102 x 121 x 89 mm) |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 25 owners. Add your rating and experience with the product.
