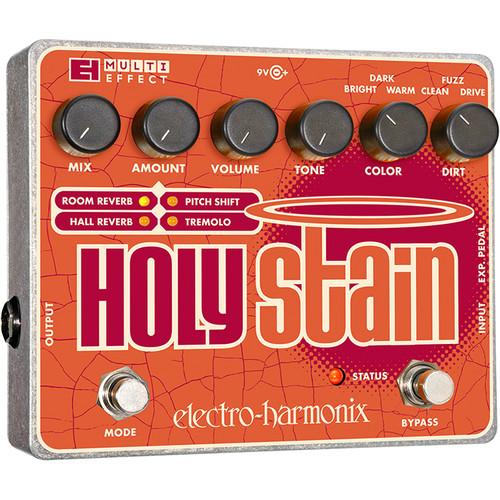

User Manual for Electro-Harmonix Holy Stain Multi-Effect Pedal Click to enlarge the picture
Contents of the user manual for the Electro-Harmonix Holy Stain Multi-Effect Pedal
- Product category: Effects Pedals Electro-Harmonix
- Brand: Electro-Harmonix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Harmonix Effects Pedals
|
User manual for the Electro-Harmonix Holy Stain Multi-Effect Pedal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Harmonix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Harmonix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Harmonix product will considerably shorten its lifespan!
|
Product description The Holy Stain Multi-Effect Pedal from Electro-Harmonics is a multi-effect pedal comprised of two stages: DSP and analog distortion. The player can combine reverb, pitch shifting, or tremolo effects with analog fuzz or overdrive. One distortion mode and one DSP mode can be active at a time, but you can also choose to bypass either stage. The unit is housed in a tough and compact die-cast chassis and comes with a 9.6 VDC-200BI power supply.
The Distortion section of the Holy Stain is made up of four controls: Dirt, Color, Tone, and Volume. The Amount knob controls the four DSP parameters, which are Room Reverb, Hall Reverb, Pitch Shift, and Tremolo, and the Mode footswitch cycles through them. The Mix knob sets the balance between the output of the distortion circuit and the output of the DSP, changes the volume of your original note versus that of the pitch-shifted note, and controls the depth of the Tremolo effect. Note: It is recommended that you use only the AC adapter supplied with the unit; using other AC adapters, even those made by Electro-Harmonix, could cause harm to the unit or the adapter. The Holy Stain does not take batteries.
The Holy Stain has a very high maximum gain. This requires that both the pickups and cables be well shielded and properly grounded to avoid excessive hum and stray oscillations when the Fuzz and Drive settings are used. - Selectable analog fuzz, overdrive, and clean tone
- Selectable hall / room reverb, tremolo, and pitch shifting
- Mixable effect combinations
- Three musical tone colors
- Supports use of optional expression pedal for controlling pitch shifting, reverb time, and tremolo rate
UPC: 683274010779 In the Box Electro-Harmonix Holy Stain Multi-Effect Pedal Power Supply (US9.6DC-200) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Harmonix Holy Stain Multi-Effect Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Harmonix HOLY STAIN Specs | Indicators and Controls | Dirt switch
Color switch
Tone knob
Volume knob
Amount knob
Mix knob
Bypass footswitch with status LED
Mode footswitch with LEDs | | Connectors | 1/4" phone jack, audio input
1/4" phone jack, audio output
1/4" phone jack, Expression pedal input
Power jack, 9 VDC | | Impedance | Input: 100 kΩ
Output: 570 Ω | | Power Requirements | 9 VDC @ 100 mA | | Dimensions | 4.75 x 5.75 x 2.50" (146 x 121 x 64 mm) | | | | Package Weight | 2.25 lb | | Box Dimensions (LxWxH) | 8.1 x 6.6 x 3.3" |
