User Manual for Electro-Harmonix Hot Wax Dual Overdrive Pedal for Electric Guitars Click to enlarge the picture
Contents of the user manual for the Electro-Harmonix Hot Wax Dual Overdrive Pedal
- Product category: Effects Pedals Electro-Harmonix
- Brand: Electro-Harmonix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Harmonix Effects Pedals
 |
User manual for the Electro-Harmonix Hot Wax Dual Overdrive Pedal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Harmonix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Harmonix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Harmonix product will considerably shorten its lifespan!
|

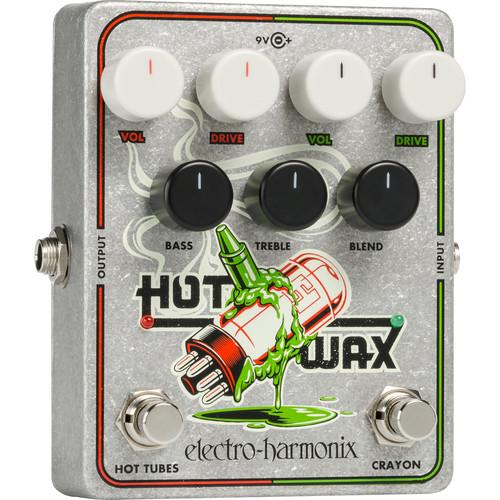

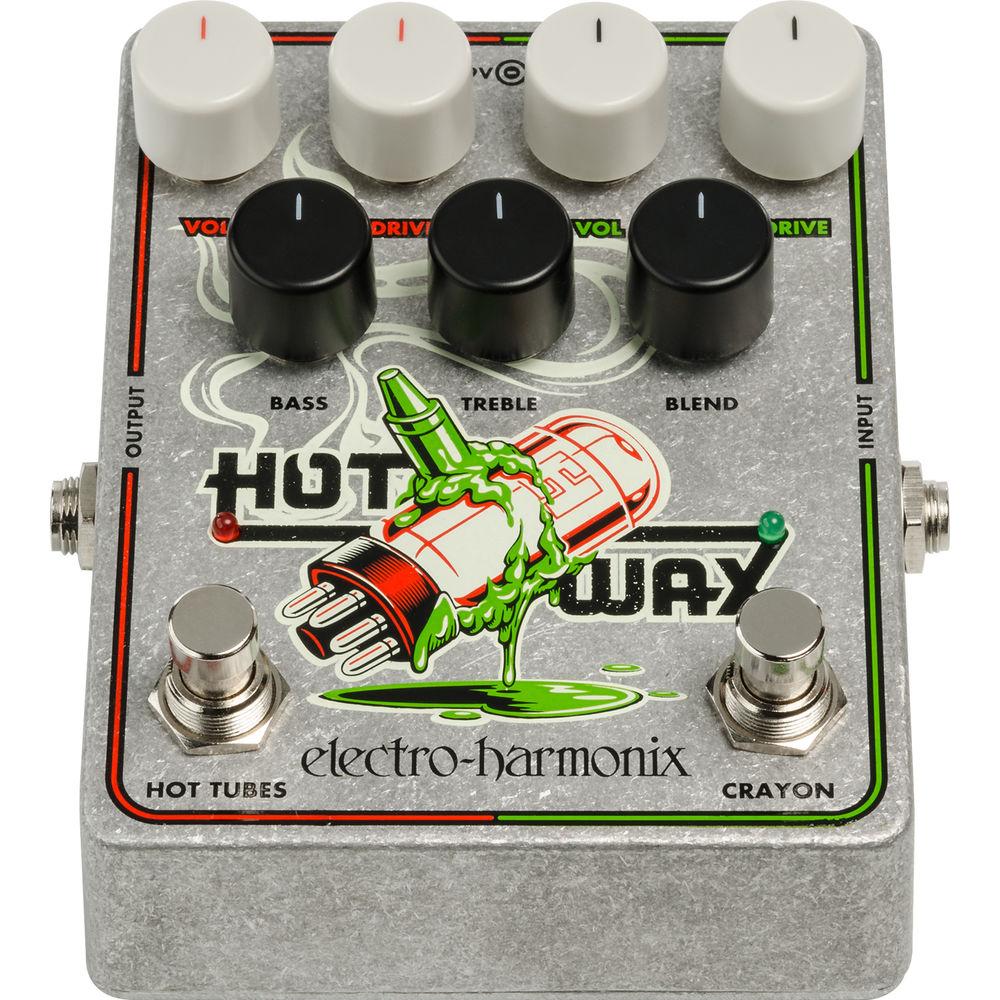

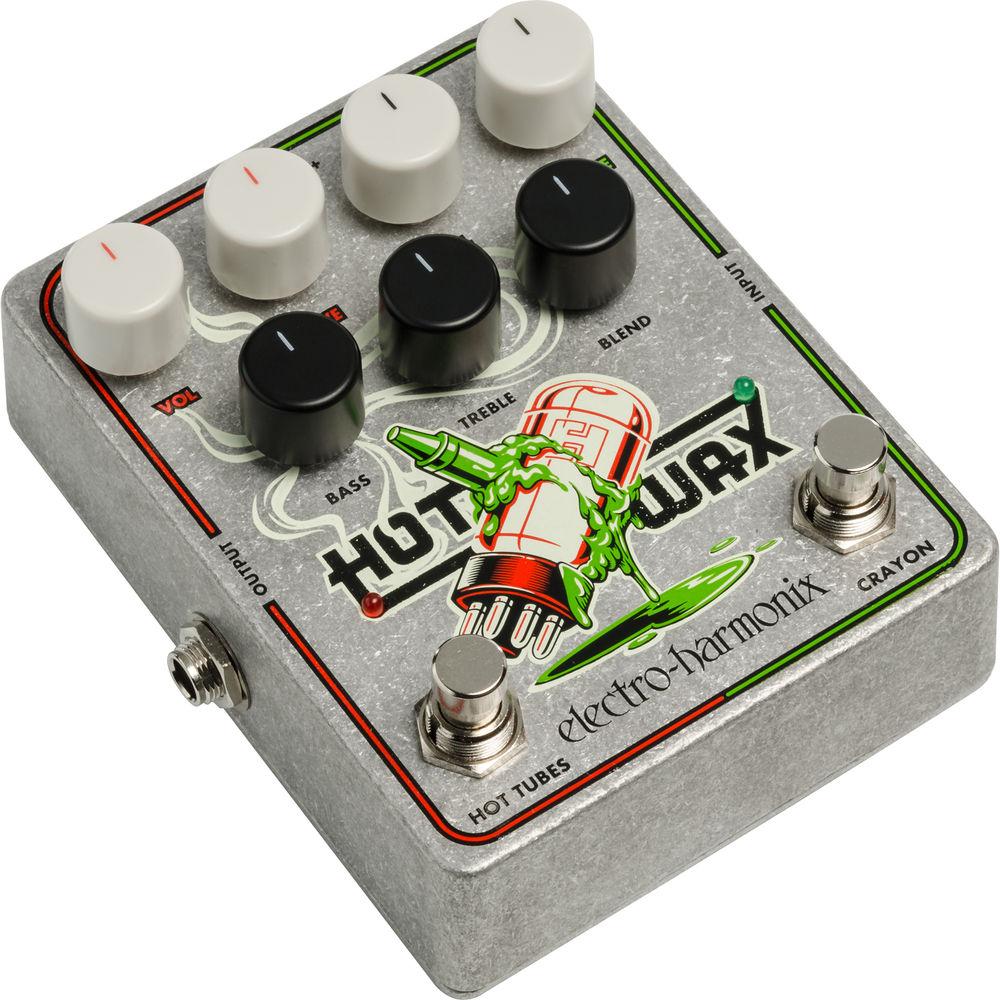

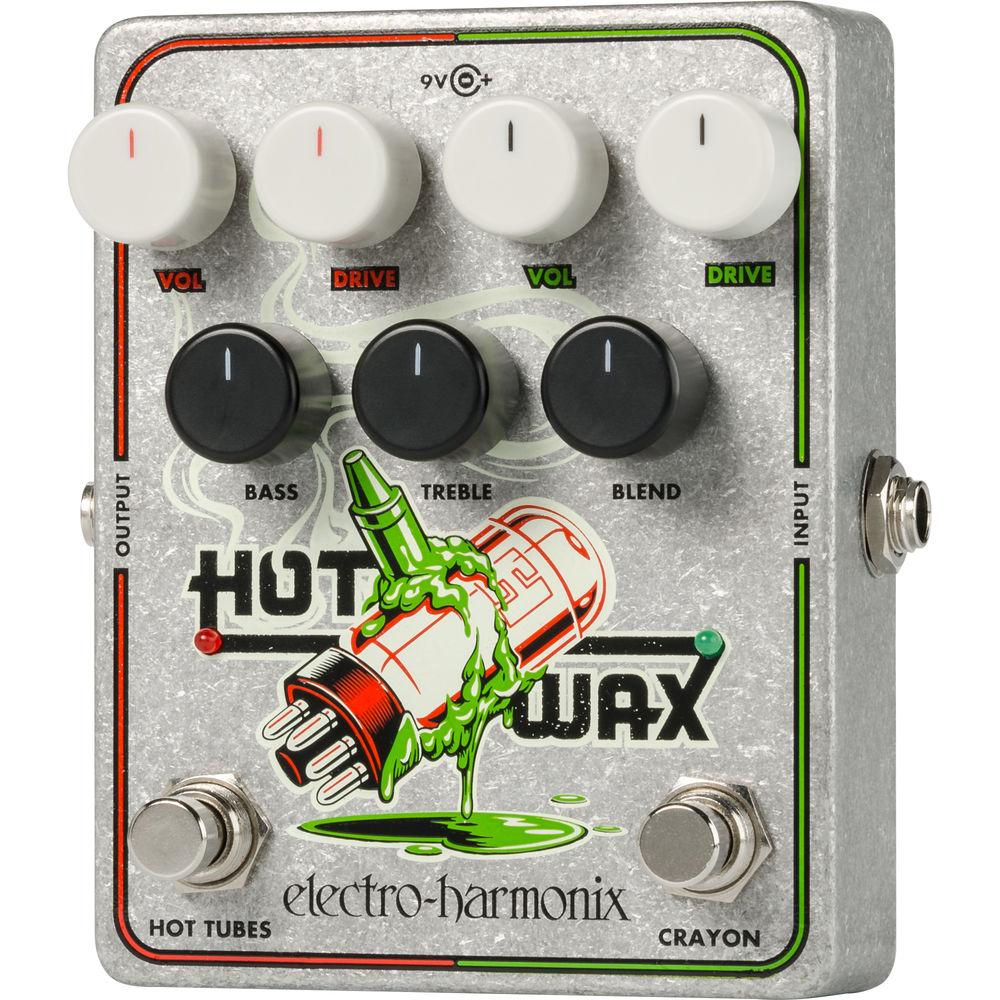

Product description Designed for electric guitar payers, the Electro-Harmonix Hot Wax is a pedal that houses the distortion sections of two venerable pedals—the Crayon and the Hot Tubes. The Crayon can provide a subtle, dirty overdrive, or it can be pushed into delivering heavy lead tones. The Hot Tubes, on the other hand, is well known for its ability to simulate the cranking of a tube amp driven to the hilt. Each section can be used separately for its individual flavor, or combined for a wall of distortion.When run separately, the two volume and drive knobs control their respective circuits. Engage both footswitches at the same time, and the Crayon’s Volume knob becomes a balance control between the drive sections of both pedals, with the Hot Tube’s Volume knob determining your overall output level.The bass, treble, and blend controls affect both sections equally, providing equalization and the ability to mix dry, clean signal back into the distorted tone. The Hot Wax provides buffered bypass circuitry to bolster your tone across long cable runs and complicated pedalboards. A power supply is provided with the unit. - Controls at a Glance

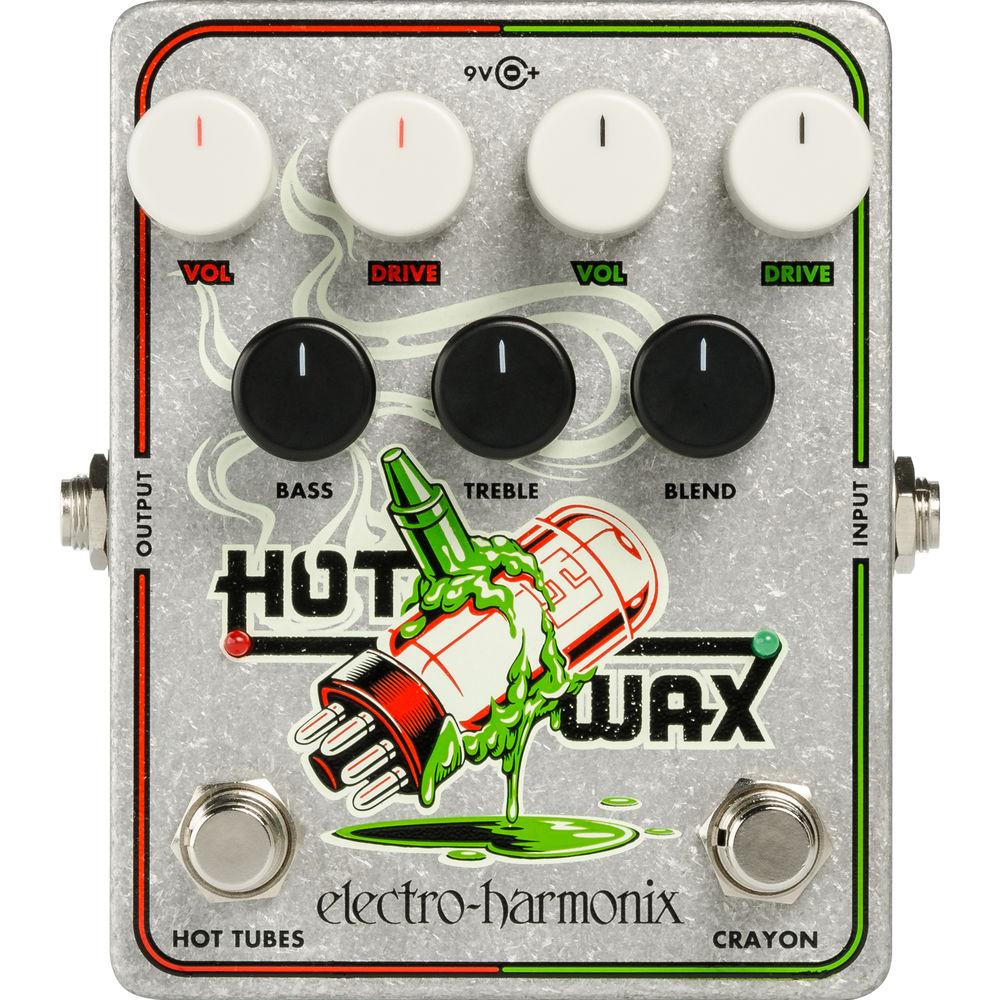

- Volume knob (Crayon): If only the Crayon section is active, the VOL knob sets master output level. If both sections are active, the VOL knob sets the level between the Crayon’s drive section and the Hot Tubes’ drive section.Volume knob (Hot Tubes): Use the Hot Tubes VOL knob to set the master output level, either of the Hot Tubes section, or of both pedals together.Drive knobs (both pedals): These knobs dictate the distortion intensity of their respective sections.Bass knob: Adjust the Bass knob to boost or cut low frequencies. Positioned at noon, the frequency response of the Bass knob is flat.Treble: Adjust the Treble knob to boost or cut high frequencies. Positioned at noon, the frequency response of the Treble knob is flat.Footswitches: These switches bypass or engage their respective sections.
UPC: 683274012049 In the Box Electro-Harmonix Hot Wax Dual Overdrive Pedal for Electric Guitars EHX 9.6 DC-200 Power Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Harmonix Hot Wax Dual Overdrive Pedal for Electric Guitars in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Harmonix HOT WAX Specs | I/O | 1/4" instrument input, phone type
1/4" instrument output, phone type | | Controls | Volume knob (Crayon section)
Drive knob (Crayon section)
Volume knob (Hot Tubes section)
Drive knob (Hot Tubes section)
Bass knob
Treble knob
Blend knob
Hot tubes
Crayon
Hot Tubes footswitch
Crayon Footswitch | | Input Impedance | 2.2 MOhms | | Output Impedance | 220 Ohms | | Current Draw | 75 mA | | Power Supply | EHX 9.6 DC-200 (included) | | Dimensions and Weight | Not specified by manufacturer | | | | Package Weight | 1.6 lb | | Box Dimensions (LxWxH) | 7.3 x 6.1 x 3.2" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 20 owners. Add your rating and experience with the product.
