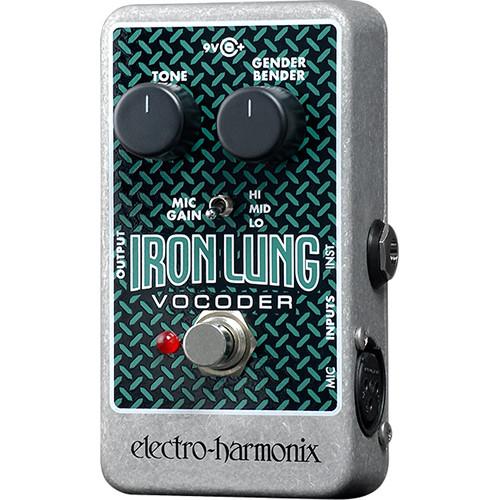

User Manual for Electro-Harmonix Iron Lung Vocoder Click to enlarge the picture
Contents of the user manual for the Electro-Harmonix Iron Lung Vocoder
- Product category: Effects Pedals Electro-Harmonix
- Brand: Electro-Harmonix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Harmonix Effects Pedals
|
User manual for the Electro-Harmonix Iron Lung Vocoder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Harmonix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Harmonix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Harmonix product will considerably shorten its lifespan!
|
Product description The Iron Lung Vocoder from Electro-Harmonics is a versatile and easy-to-use pedal vocoder which allows you to get a wide array of classic and modern vocoder sounds without large rack equipment, computer plug-ins, or large keyboards. The Iron Lung provides the same vocoding algorithm as the V-256 vocoder, but is housed in a die-cast chassis which is significantly smaller than that of the V-256.
The unit uses the highest resolution of 256 bands to deliver defined vocoder performance. The Gender Bender control enables you to adjust male to female emphasis, and the XLR input allows your microphone of choice to be used with three independent gain controls. The tone control integrates with the Gender Bender to refine the tone and make it exactly what you want it to be. A guitar or keyboard can be used for polyphonic delivery. The Iron Lung comes with an AC adapter and is compatible with Boss style AC adapters. Note: It is recommended that you only use the AC adapter supplied with the unit. Using other AC adapters, even those made by Electro-Harmonix, could cause harm to the unit or the adapter. The Iron Lung does not take batteries. - Gender Bender knob for male to female emphasis
- XLR microphone input with three independent gain settings
- Tone control for frequency definition
- Guitar Bypass or Split Guitar/Vocal Bypass (requires insert cable, not included)
UPC: 683274011042 In the Box Electro-Harmonix Iron Lung Vocoder AC Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Harmonix Iron Lung Vocoder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Harmonix LUNG Specs | Indicators and Controls | 1 x Knob: Tone
1 x Knob: Gender Bender
1 x Footswitch (with status LED): Bypass
1 x Toggle Switch: Mic Gain | | Bypass | Normal Bypass mode
Split Bypass mode In order to use Split Bypass, the insert cable must be plugged into the Iron Lung's output jack before applying power to the Iron Lung. | | Connectors | XLR jack, microphone input
1/4" jack, instrument input
1/4" jack, instrument output
Power jack, 9 V | | A/D and D/A Conversion | Sample Rate: 71.5 kHz
Bit Resolution: 24 bits | | Current Draw | 150 mA @ 9 VDC | | Power Requirements | 200 mA @ 9 to 9.6 VDC | | Dimensions | 2.75 x 4.50 x 2.10" (70 x 115 x 54 mm) | | | | Package Weight | 1.4 lb | | Box Dimensions (LxWxH) | 6.3 x 5.6 x 3.2" |
