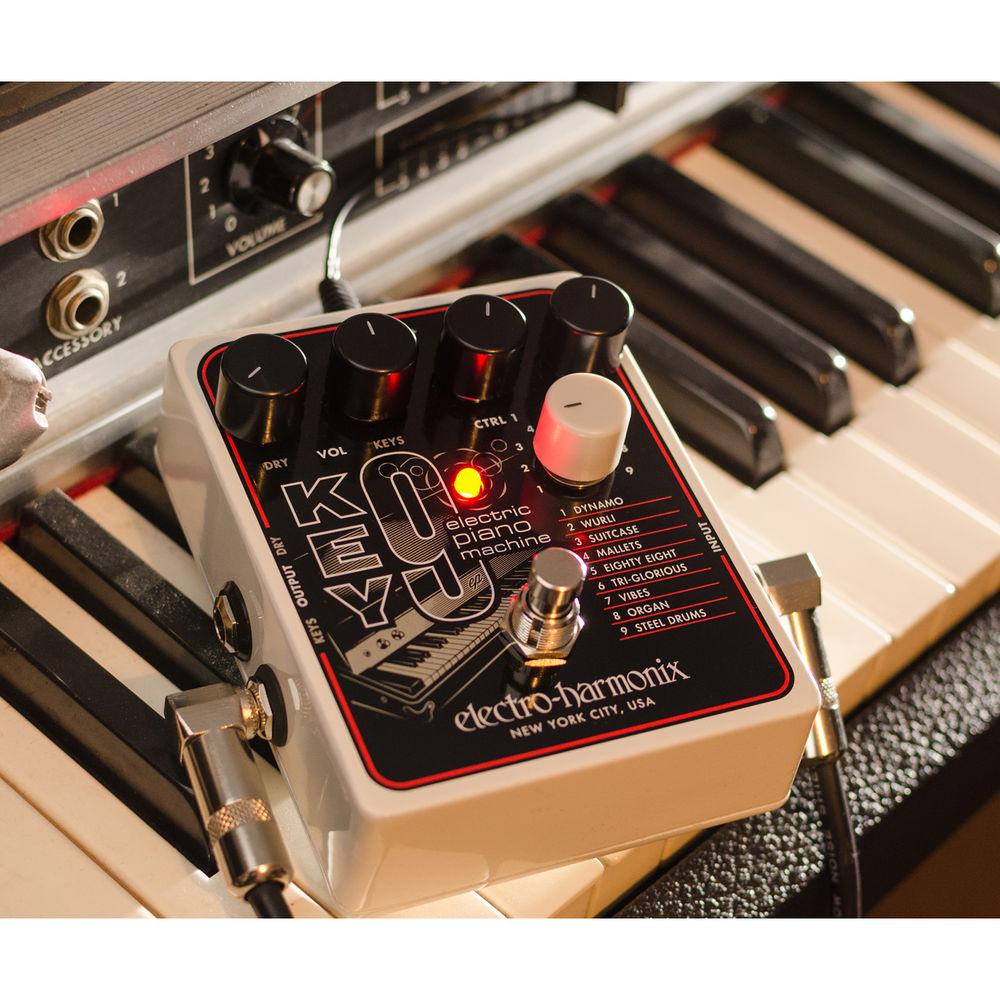

User Manual for Electro-Harmonix KEY9 Electric Piano Machine Pedal Click to enlarge the picture
Contents of the user manual for the Electro-Harmonix KEY9 Electric Piano Machine Pedal
- Product category: Effects Pedals Electro-Harmonix
- Brand: Electro-Harmonix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Harmonix Effects Pedals
 |
User manual for the Electro-Harmonix KEY9 Electric Piano Machine Pedal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Harmonix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Harmonix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Harmonix product will considerably shorten its lifespan!
|

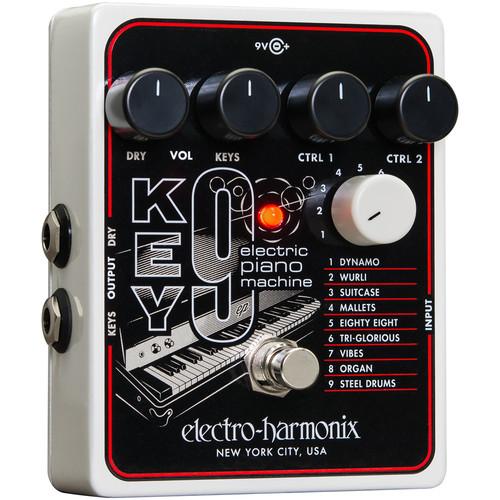

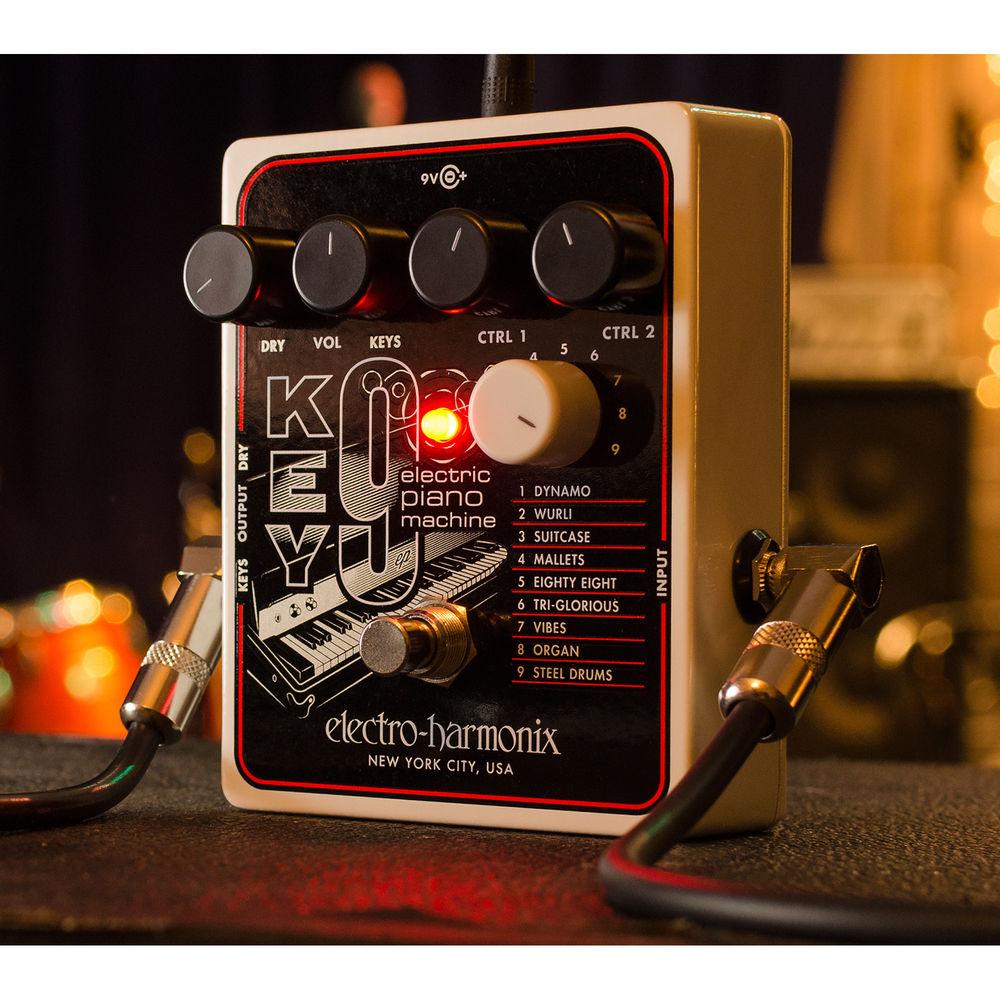

Product description The KEY9 Electric Piano Machine Pedal from Electro-Harmonix transforms the tone of your guitar or keyboard into that of an electric piano and other vintage keyboards such as Rhodes and Wurlitzer, as well as percussive instruments such as marimba and steel drums. The nine presets are tuned to emulate some of the most popular and classic tones. - General Features
-
- Transforms the tone of your guitar or keyboard
- 9 presets that were carefully crafted to emulate classic Wurlitzer and Rhodes sounds, plus more
- Presets provide control of the fundamental parameters that help define that instrument's sound
- Many presets include adjustable modulation such as tremolo, phaser and chorus
- Fast and flawless tracking
- EHX 9.6DC -200 PSU included
- Preset Descriptions
-
- Dynamo: An evocation of the “Dyno My” modified Fender Rhodes electric pianos of the 1970s and 1980s
- Ctrl 1 adds bass to the lower strings of your guitar
- Ctrl 2 adjusts the “tine” or high-end overtones
- Wurli: The classic sound of the Wurlitzer electric piano
- Ctrl 1 adjusts tremolo depth
- Ctrl 2 sets tremolo speed
- Suitcase: This preset pays tribute to the sound of a Fender Rhodes electric piano routed through a phase shifter
- Ctrl 1 adds a bass octave and adjusts the “tine” or high-end overtones
- Ctrl 2 sets the phase shifter speed
- Mallets: The sound of a wood marimba
- Ctrl 1 adjusts chorus depth
- Ctrl 2 sets chorus speed
- Eighty Eight: This preset emulates a Fender Rhodes 88 electric piano with built-in tremolo
- Ctrl 1 adjusts tremolo depth
- Ctrl 2 sets tremolo speed
- Tri-Glorious: The sound of a Dytronics/Dyno My CS-5 Tri Stereo Chorus
- Ctrl 1 adjusts chorus depth
- Ctrl 2 sets chorus speed
- Vibs: The sound of a metal vibraphone with motorized tremolo
- Ctrl 1 adjusts the high pitch attack
- Ctrl 2 sets tremolo speed
- Organ: This preset offers a highly touch-responsive percussive organ
- Ctrl 1 adjusts the high frequencies (treble)
- Ctrl 2 sets the rotating speaker speed
- Steel Drums: This preset conveys the metallic sound of a steel drum
- Ctrl 1 adjusts chorus depth
- Ctrl 2 sets chorus speed
UPC: 683274011783 In the Box Electro-Harmonix KEY9 Electric Piano Machine Pedal 9.6DC-200BI Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Harmonix KEY9 Electric Piano Machine Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Harmonix KEY9 Specs | Presets | Dynamo, Wurli, Suitcase, Mallets, Eight-Eight, Tri-Glorious, Vibes, Organ, Steel Drums | | Controls and Indicators | 1 x Knob: Dry volume
1 x Knob: Key volume
1 x Knob: Control 1
1 x Knob: Control 2
1 x Knob: Preset
1 x Footswitch: Bypass
1 x LED: Status | | Connectors | 1/4" phone jack, input
1/4" phone jack, dry output
1/4" phone jack, key output
DC power jack, power input | | Impedance | Input: 1 MOhm
Output: 500 ohms | | Current Draw | 100 mA | | Bypass | Buffered | | Compliance | FCC | | Dimensions | 4.00 x 4.75 x 2.25" (10.2 x 12.1 x 5.7 cm) | | | | Package Weight | 1.55 lb | | Box Dimensions (LxWxH) | 7.2 x 6.2 x 3.2" |
