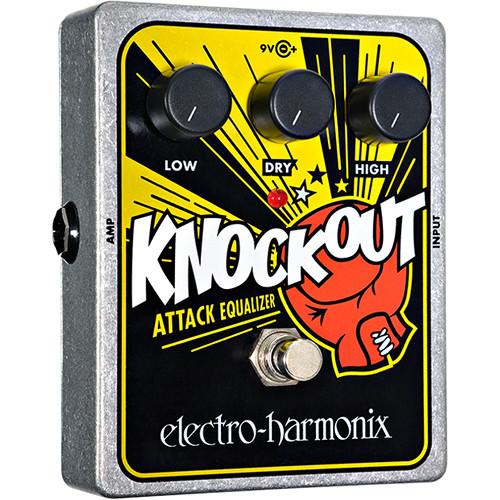

User Manual for Electro-Harmonix Knockout Attack Equalizer Click to enlarge the picture
Contents of the user manual for the Electro-Harmonix Knockout Attack Equalizer
- Product category: Effects Pedals Electro-Harmonix
- Brand: Electro-Harmonix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Harmonix Effects Pedals
|
User manual for the Electro-Harmonix Knockout Attack Equalizer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Harmonix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Harmonix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Harmonix product will considerably shorten its lifespan!
|
Product description The Knockout Attack Equalizer from Electro-Harmonix is a two-filter combination equalizer. The Knockout EQ is designed to work with any instrument level signal from any instrument or voice. It consists of one Low-Pass filter, one High-Pass filter, and a direct Dry signal, each with its own knob. The Low and High knobs deal with gain while the Dry signal serves as mediator between the two. The Low, High, and Dry elements may be used independently or in any combination to yield a specific and focused tonal sculpture.
The Low knob is a volume control for the low or bass frequencies; it controls the output volume from the Knockout's seven-pole Low-Pass filter and is also responsible for contouring the bottom end in relation to the total sound. The High knob is a volume control for the high or treble frequencies; it controls the output volume from the Knockout's six-pole High-Pass filter and is also responsible for contouring the high end to the total sound. The Dry knob is a volume control for the signal present at the input jack. Use the Dry knob in conjunction with the Low and High knobs to create your tone. A 9 VDC battery is included with the EQ. - Tough and compact die-cast chassis
UPC: 683274010762 In the Box Electro-Harmonix Knockout Attack Equalizer 9 VDC Battery Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Harmonix Knockout Attack Equalizer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Harmonix KNOCKOUT Specs | Input Impedance | 390 kΩ | | Cut-Off Frequency | High Pass Filter: 6.5 kHz
Low Pass Filter: 85 Hz | | Controls | 1 x Knob: High
1 x Knob: Low
1 x Knob: Dry | | Indicators | Status LED | | Connectors | 1/4" phone jack, input
1/4" phone jack, output | | Power Supply | Internal 9 VDC battery or optional US96DC-200BI external power supply | | Dimensions | 4.75 x 4.00 x 2.25" (121 x 102 x 89 mm) | | | | Package Weight | 1.03 lb | | Box Dimensions (LxWxH) | 6.35 x 5.95 x 3.15" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 37 owners. Add your rating and experience with the product.
