User Manual for Electro-Harmonix Memory Boy Pedal with Analog Delay Chorus Vibrato Click to enlarge the picture
Contents of the user manual for the Electro-Harmonix Memory Boy Pedal with Analog
- Product category: Effects Pedals Electro-Harmonix
- Brand: Electro-Harmonix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Harmonix Effects Pedals
|
User manual for the Electro-Harmonix Memory Boy Pedal with Analog contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Harmonix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Harmonix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Harmonix product will considerably shorten its lifespan!
|

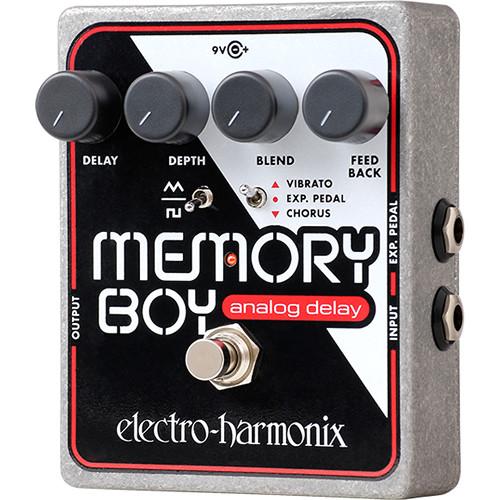

Product description The Memory Boy Pedal from Electro-Harmonix is an analog delay pedal with chorus and vibrato effects. The Memory Boy uses the Deluxe Memory Man as a base, expanding upon it with additional modulation features and an expression pedal input (expression pedal not included) which allows external control over delay time and modulation rate. Your Memory Boy can be used on its own or in combination with other effects devices. The unit comes with a 9.6 VDC-200BI power supply. There is also a 9V battery clip inside your Memory Boy which can be optionally used to power the unit with a single battery for three to four hours.
The Memory Boy is equipped with a bypass footswitch that allows you to switch the effect in and out. The analog delay effect has three controls to it: Blend, Feedback, and Delay Time. In addition, there is a Depth control which sets the amount of modulation applied to your tone in the selectable sweet analog Chorus and Vibrato modes. The triangle / square toggle switch sets the shape of the analog modulation waveform. The Chorus, Vibrato & Expression Pedal toggle switch is a three-position toggle switch which has two jobs: it sets the rate of modulation and chooses the parameter for the expression pedal to control. Note: Use only the 9.6 VDC-200BI adapter supplied with the unit. Using other adapters can cause damage to the unit, or to the user, and will void the warranty. Only use alkaline batteries with the Memory Boy. - All-analog delay with Feedback
- Selectable Chorus or Vibrato modulations rates
- Choose between triangle and square modulation waveforms
- 9.6 VDC-200BI power supply included
UPC: 683274010984 In the Box Electro-Harmonix Memory Boy Pedal with Analog Delay / Chorus / Vibrato US9.6DC-200 Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Harmonix Memory Boy Pedal with Analog Delay Chorus Vibrato in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Harmonix MBOY Specs | Controls | 1 x Knob: Blend
1 x Knob: Feedback
1 x Knob: Delay
1 x Knob: Depth
1 x Toggle Switch: Triangle / Square
1 x Toggle Switch: Chorus / Vibrato / Expression Pedal
1 x Footswitch | | Connectors | 1/4" input jack
1/4" phone jack, input
1/4" phone jack, output
1/4" phone jack, expression pedal / control voltage input
DC power, power input | | Indicators | LED, status LED | | Impedance | Input: 1 MΩ | | Power Requirements | 9 VDC @ 45 mA with a center negative plug | | Power Supply | 9.6 VDC, 200 mA or
9 V battery (not included) | | Dimensions | 4.00 x 4.75 x 2.25" (102 x 121 x 89 mm) | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 7.3 x 6.1 x 3.2" |
