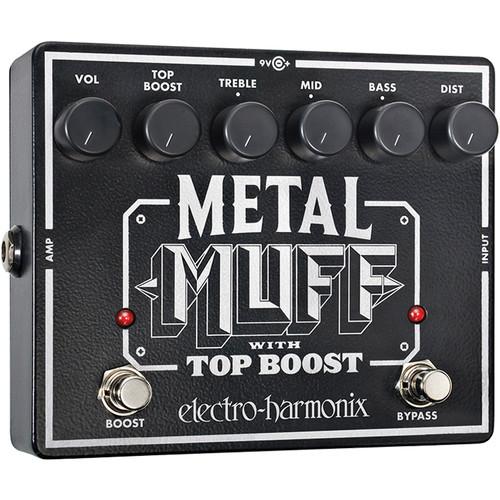

User Manual for Electro-Harmonix Metal Muff Distortion Pedal with Top Boost Click to enlarge the picture
Contents of the user manual for the Electro-Harmonix Metal Muff Distortion Pedal with
- Product category: Effects Pedals Electro-Harmonix
- Brand: Electro-Harmonix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Harmonix Effects Pedals
|
User manual for the Electro-Harmonix Metal Muff Distortion Pedal with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Harmonix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Harmonix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Harmonix product will considerably shorten its lifespan!
|
Product description The Metal Muff from Electro-Harmonics is a metal distortion pedal with top boost. The Metal Muff utilizes three EQ bands, including a mid-range control designed for contouring and creating beautifully sculpted mids. The unit offers commanding bass and defined high-end coupled with a wide spectrum of user-controlled distortion. The Metal Muff is housed in a tough and compact die-cast chassis and comes with a 9V battery. An optional 96 VDC-200BI power supply is available. Note: The Metal Muff has a very high maximum gain. This requires that both the pickups and cables be well shielded and properly grounded to avoid excessive hum when high sustain control settings are used. - High input impedance buffered bypass
- Output volume and master drive controls
- Six controls:
Distortion: adjusts input gain
Bass: provides up to 14dB of cut and boost in the bass frequency range
Mid: provides up to 15dB of cut and boost in the middle frequency range
Treble: provides up to 10dB of cut and boost in the treble frequency range
Top Boost: provides extra 'bite' by boosting a narrow band of high frequencies
Volume: sets the output level - Foot-switchable Top Boost with separate control knob
- Optional 9.6 VDC-200BI power supply available (same as used by Boss & Ibanez)
UPC: 683274010489 In the Box Electro-Harmonix Metal Muff Distortion Pedal with Top Boost 9V Battery Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Harmonix Metal Muff Distortion Pedal with Top Boost in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Harmonix METAL MUFF Specs | Impedance | Input: 1 MOhms
Output: 600 ohms | | Indicators and Controls | 1 x Knob: Distortion
1 x Knob: Bass
1 x Knob: Mid
1 x Knob: Treble
1 x Knob: Top Boost
1 x Knob: Volume
1 x Footswitch with LED: Top Boost
1 x Footswitch with LED: Bypass | | Connectors | 1/4" phone jack, audio input
1/4" phone jack, audio output | | Power Options | 9 V battery, included
200 mA @ 9.6 VDC, optional | | Dimensions | 4.75 x 5.75 x 2.50" (146 x 121 x 64 mm) | | | | Package Weight | 1.6 lb | | Box Dimensions (LxWxH) | 7.3 x 6.3 x 3.2" |
